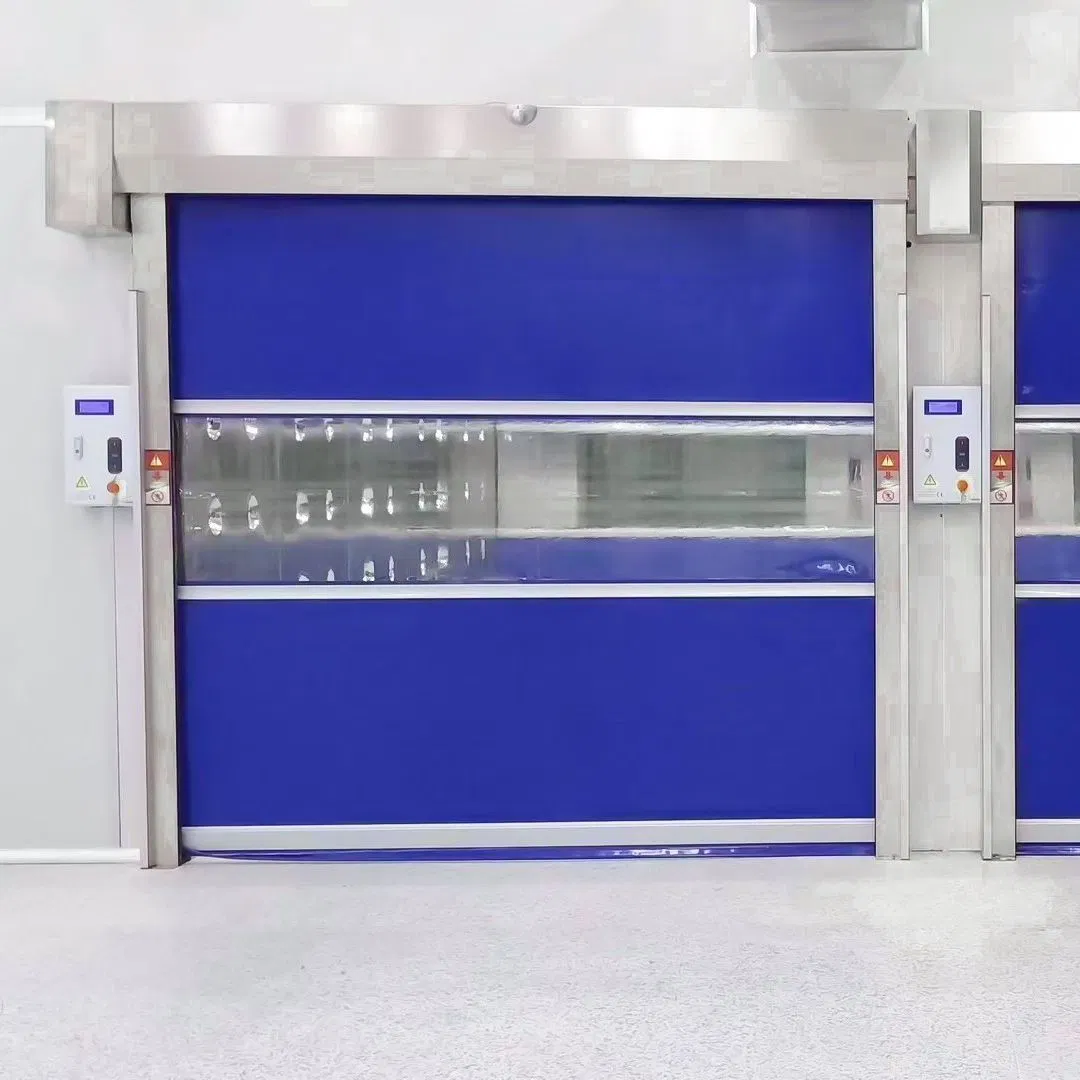

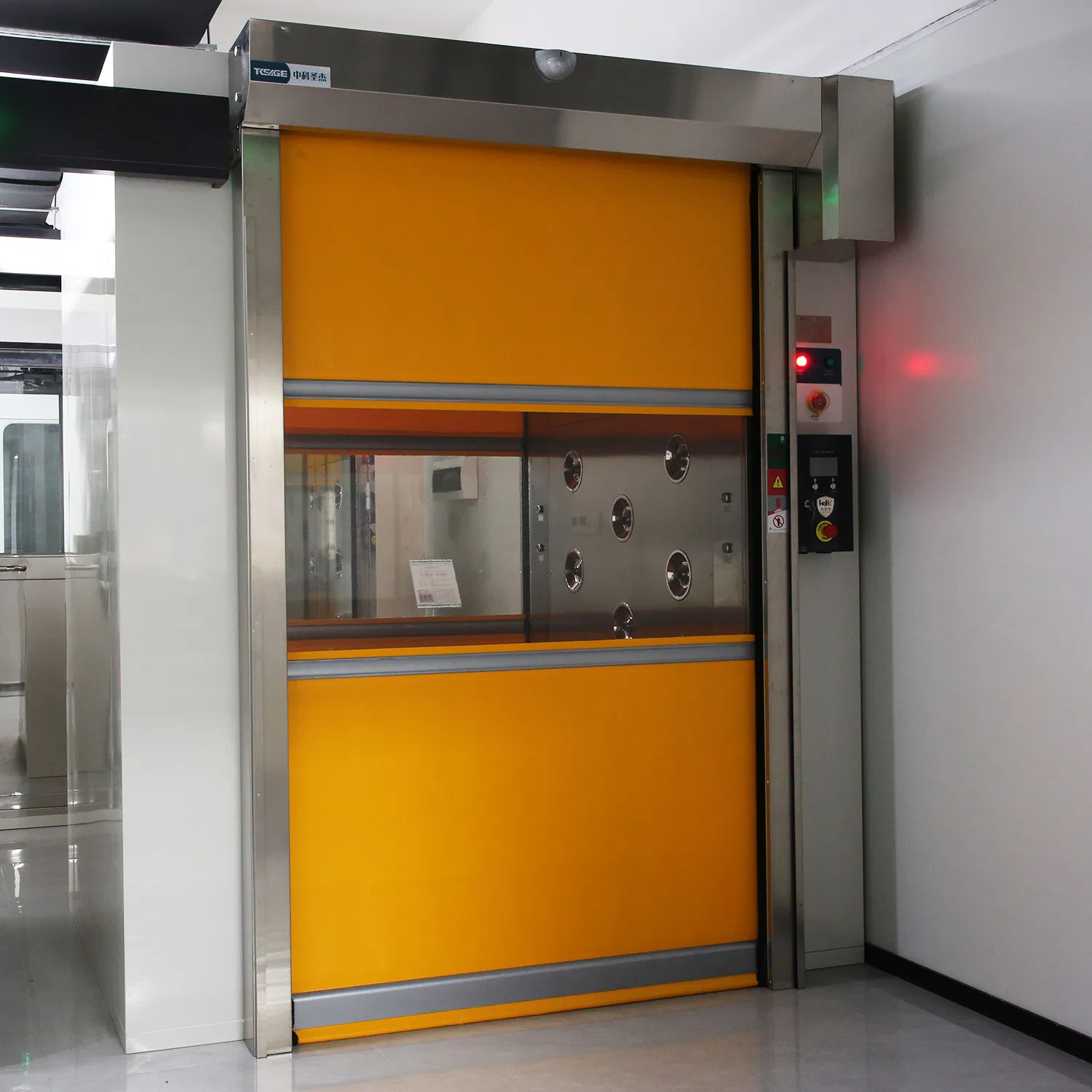

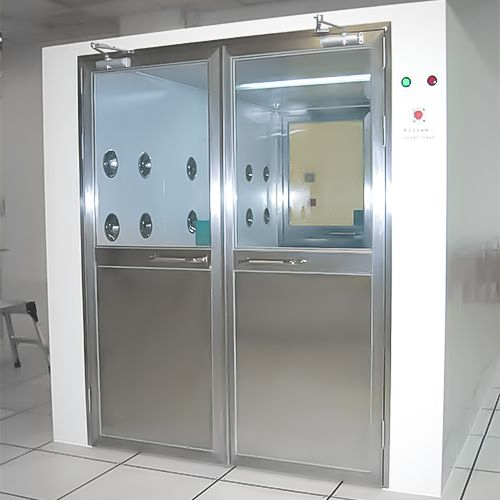

Multiple Models of Air Shower Rooms for Cleanrooms That Meet GMP Requirements/Cargo Air Shower with Automatic Sliding Door

1 / 3

Multiple Models of Air Shower Rooms for Cleanrooms That Meet GMP Requirements/Cargo Air Shower with Automatic Sliding Door

Customization:	Available
Application:	Precision Electronic Industry, Power Industry, Mechanical Engineering, Pharmaceutical,Food Industry
Certification:	CE, ISO

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Cargo Air Shower with Automatic Sliding Door

Fuel

Electric

Structure

Bilateral Air Shower

Feature

Fast Shutter Door, Automatic Door, Intelligent Voice

Nozzles

Material

Stainless Steel

Power Supply

220V/50Hz

Air Speed

18-22 M/S

Certificate

ISO9001

Specification

1700*2000*2180mm

🚀 Product Description

🔹 Key Components

🚪 Door Opening Methods

Wireless remote control switch
Microwave automatic sensor
Non-contact sensing switch
Contact button switch

🛠 Optional Accessories

Stainless steel cabinet/inner wall
UV sterilizer
Electrostatic eliminator
Concealed door device

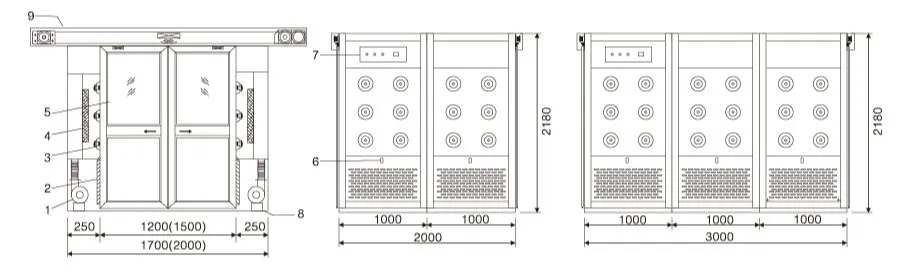

📊 Technical Specifications

Model	ZKSJ-2000-2	ZKSJ-2000-3
Overall dimensions (mm)	W2000xL2000XH2180	W2000xL3000XH2180
Air shower dimensions (mm)	W1200XL2000XH1980	W1200XL3000XH1980
Air speed at nozzle (m/s)	18-22
Number of nozzles	24	36
Blowing time (s)	Default 10s (Adjustable 10s-99s)
Filtration efficiency	99.99% at 0.3um
Fan power (W)	750 * 4	750 * 6

🏗️ Manufacturing & Facilities

⚙️ Advanced Production Equipment

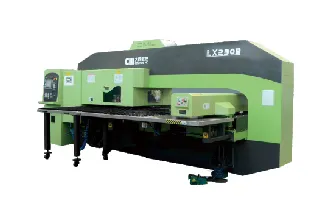

CNC Punching Machine

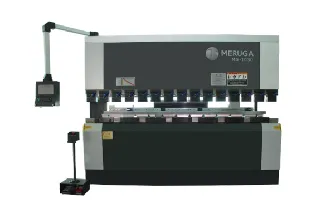

CNC Bending Machine

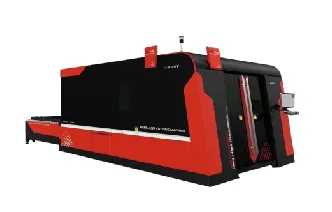

Laser Cutting Machine

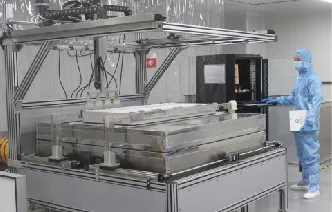

Auto Filter Pleating

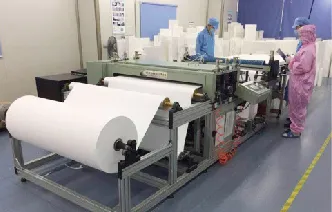

Filter Production

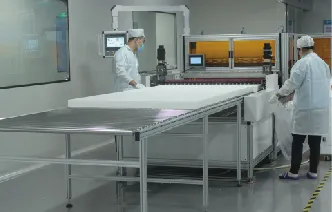

Filter Test Bench

🛡️ Product Categories

Sterilization Equipment

Cleanroom Equipment

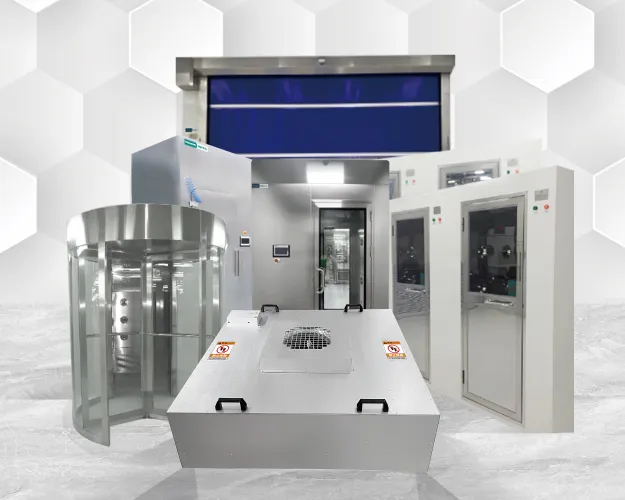

Contamination Control

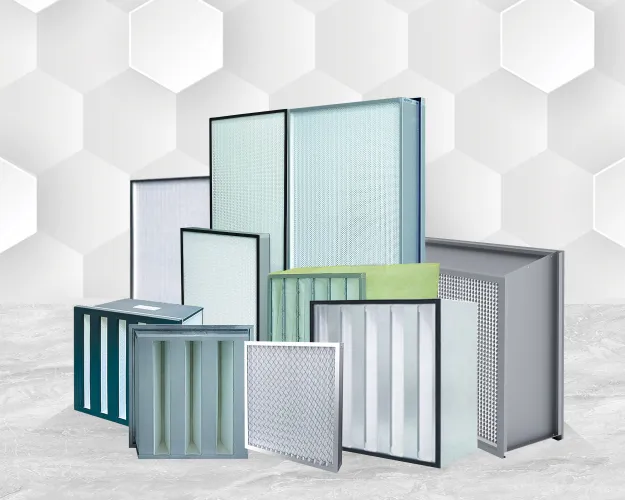

Air Filtration Systems

❓ Frequently Asked Questions

1 What is the primary function of a Cargo Air Shower?

It is designed to use high-velocity filtered air to remove dust, lint, and other contaminants from the surfaces of cargo or personnel before they enter a cleanroom environment, ensuring GMP compliance.

2 What are the standard air speed and filtration levels?

The system provides an air velocity of 18-22 m/s at the nozzles. It features a dual filtration system with a 99.99% HEPA filter efficiency at 0.3μm.

3 Can the blowing time be customized?

Yes, while the default blowing time is set to 10 seconds, it is fully adjustable via the control panel from 10 to 99 seconds.

4 What materials are used for construction?

The main cabinet is typically made of 1.2 mm cold-rolled steel with electrostatic spray treatment, while the inner walls, nozzles, and doors are constructed from high-grade stainless steel for durability and cleanliness.

5 What door opening mechanisms are available?

The system supports multiple automatic options including microwave sensors, wireless remote controls, non-contact infrared sensing switches, and traditional contact buttons.

6 Does the system include safety features?

Yes, it includes intelligent voice prompts, IR sensors for automatic activation, tempered glass windows for visibility, and emergency stop mechanisms where required.
