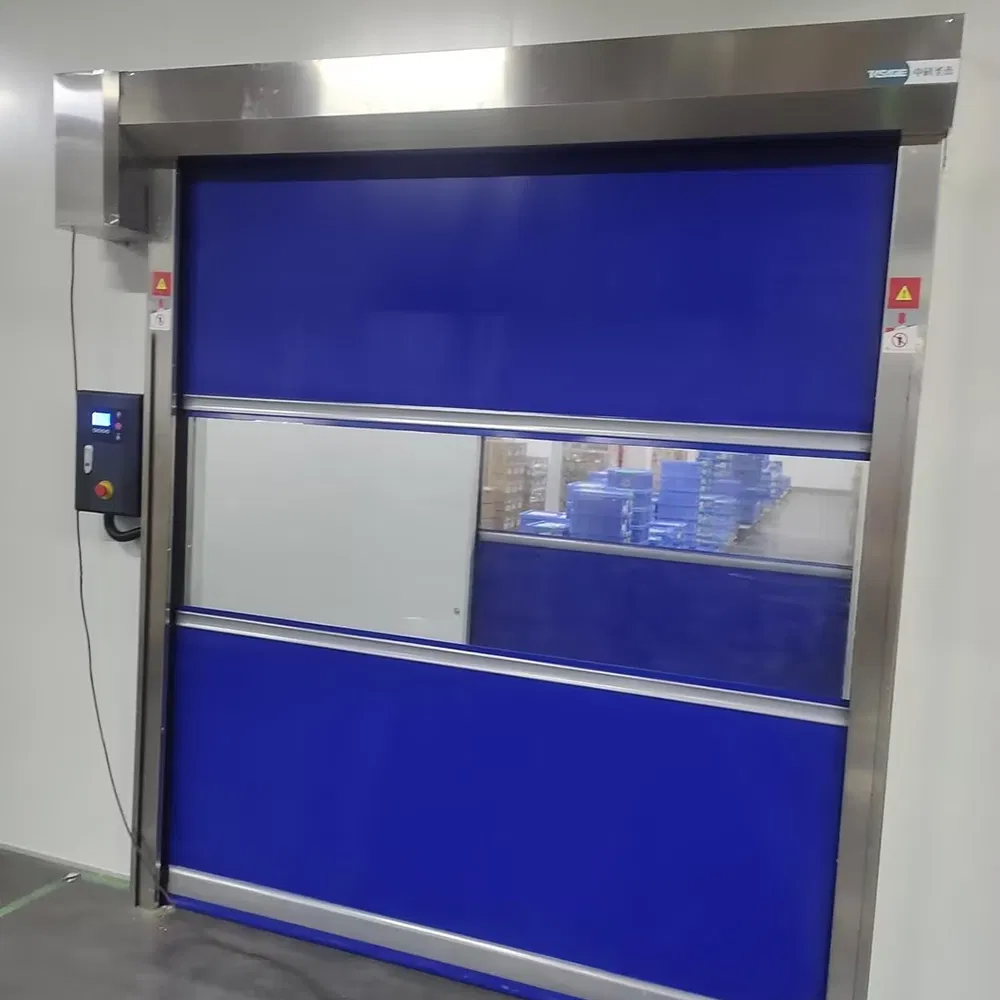

Double Stage Filtration Cargo Air Shower

1 / 5

Double Stage Filtration Cargo Air Shower

Customization:	Available
Application:	Precision Electronic Industry, Power Industry, Mechanical Engineering, Pharmaceutical,Food Industry
Certification:	CE, ISO

Send Inquiry

Product Description

Basic Information

Model NO.

Cargo Air Shower

Fuel

Electric

Structure

Bilateral Air Shower

Nozzles

Material

Stainless Steel

Power Supply

220V/50Hz

Air Speed

18-22 M/S

Specification

1700*2000*2180mm

Origin

China

Capacity

2500 units

✓

Product Description

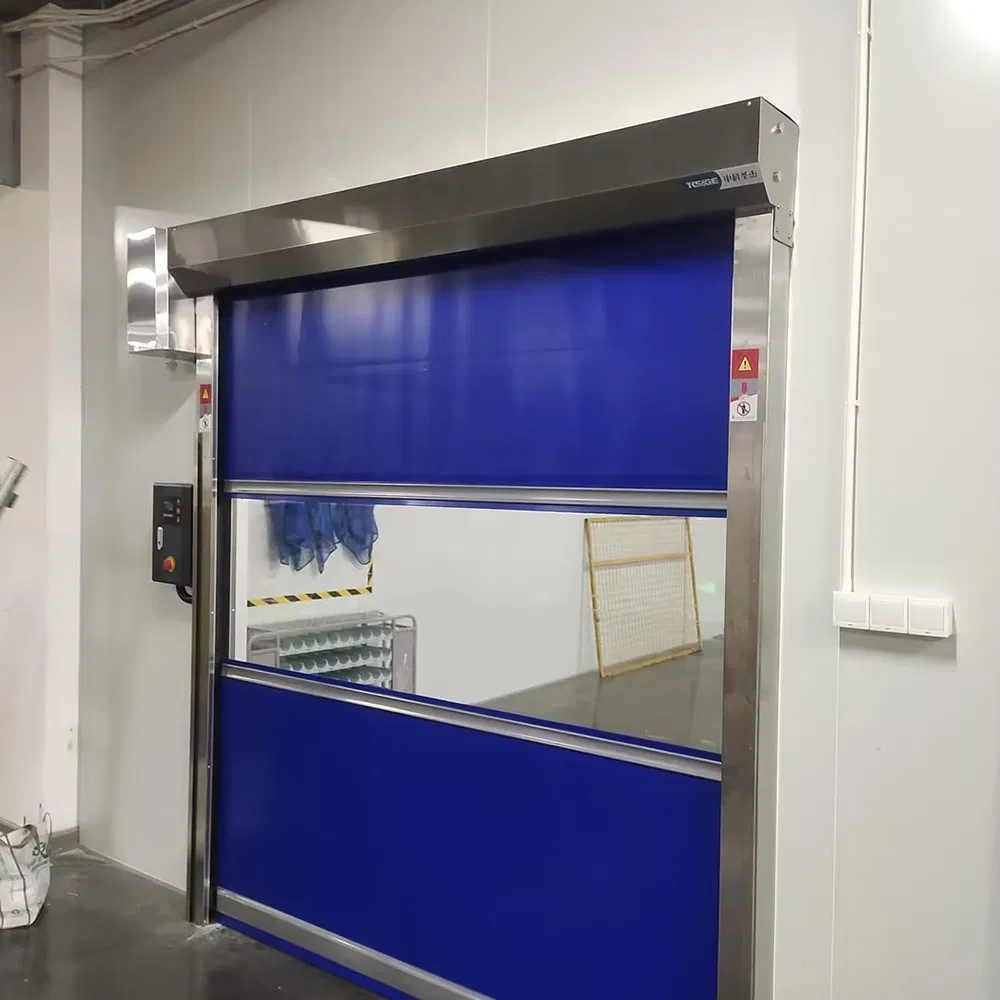

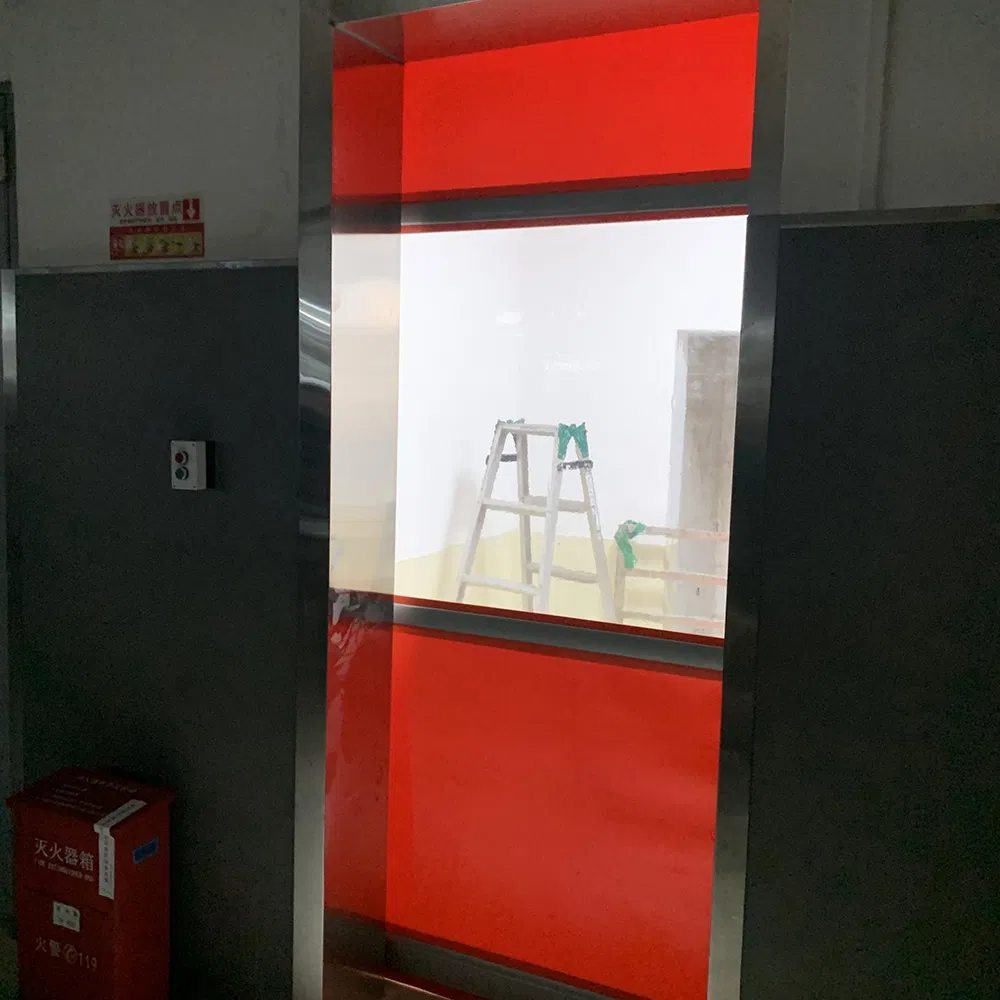

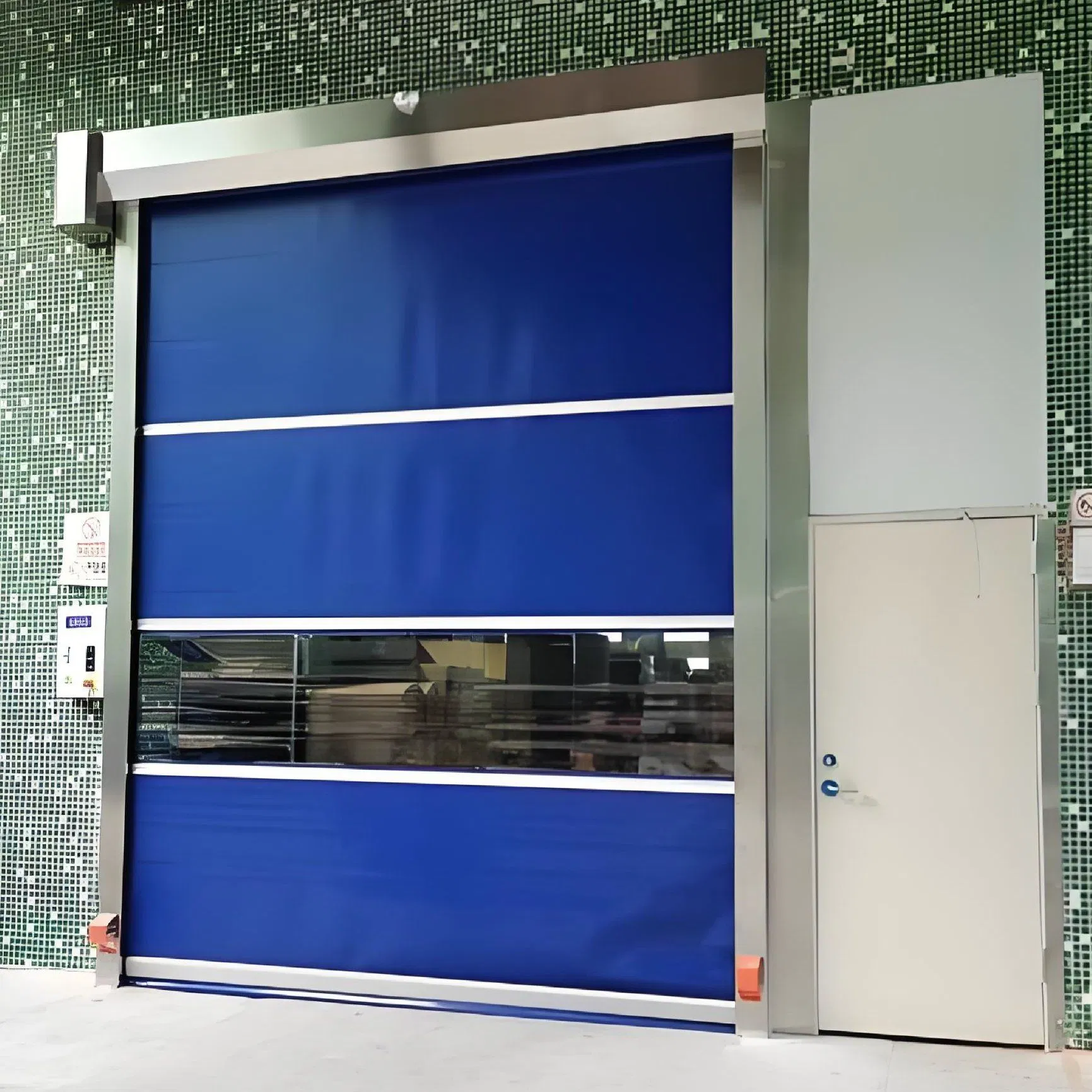

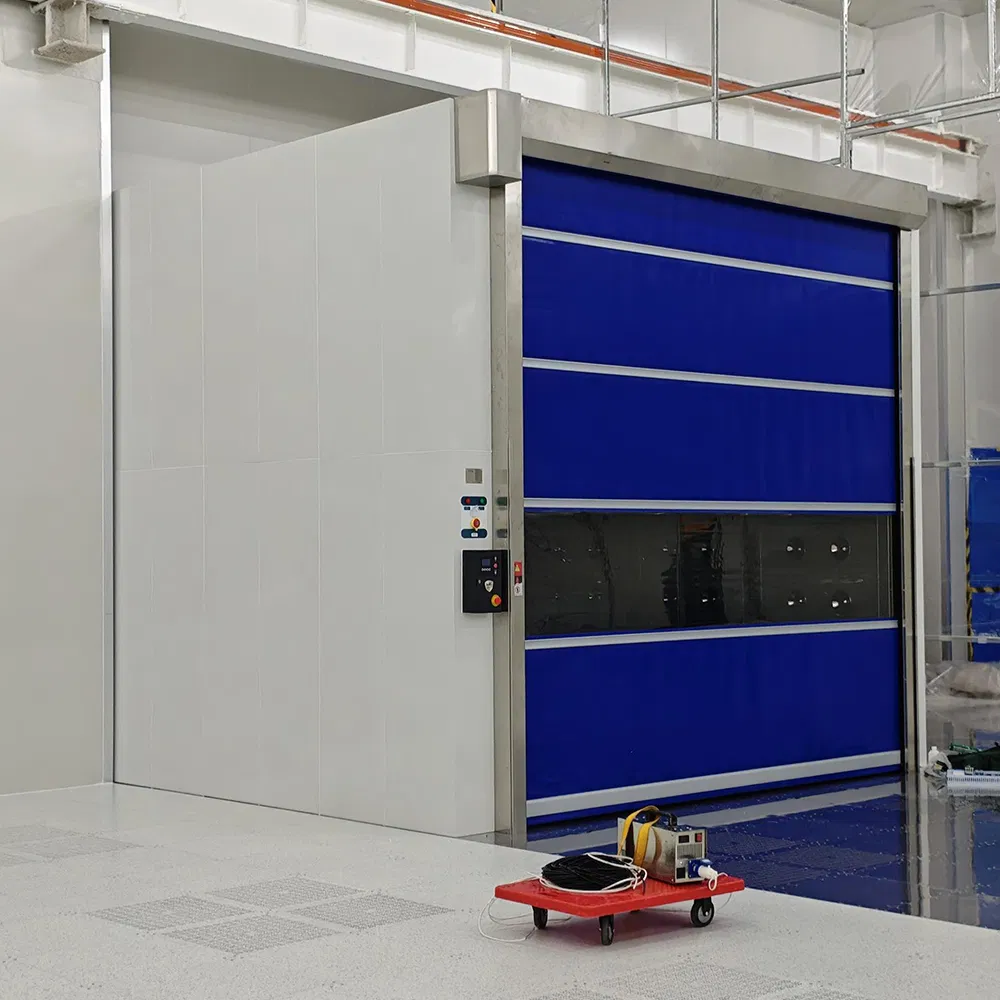

Cargo Air Shower with Automatic Sliding Door

Door Opening Methods

Wireless remote control switch, Microwave automatic sensor, Non-contact sensing switch, Contact button switch.

Optional Accessories

Stainless steel cabinet, UV sterilizer, Electrostatic eliminator, Concealed door device.

⚙

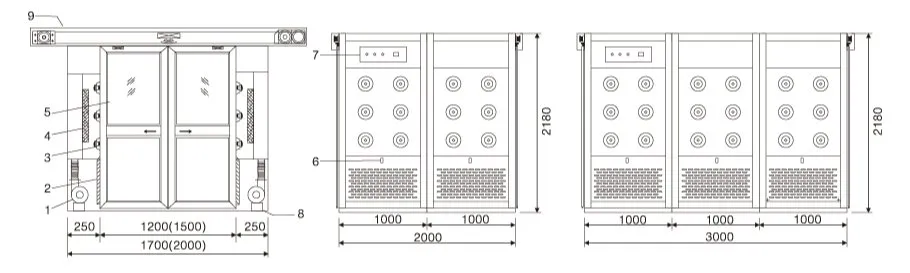

Technical Parameters

Description	ZKSJ-2000-2	ZKSJ-2000-3
Overall dimensions (mm)	W2000xL2000XH2180	W2000xL3000XH2180
Air shower dimensions(mm)	W1200XL2000XH1980	W1200XL3000XH1980
Number of nozzles	24	36
Air speed at nozzle	18-22 m/s
HEPA filter efficiency	99.99% at 0.3um
Cabinet material	1.2 mm cold-rolled steel / Electrostatic spray
Fan power (W)	750*4	750*6

★

Manufacturing & R&D

Specialized service provider integrating R&D, design, manufacturing, and installation of clean environment equipment. Production facilities utilize advanced CNC equipment, laser cutting, and fully automatic welding. Our professional clean equipment team consists of over 36% technical staff.

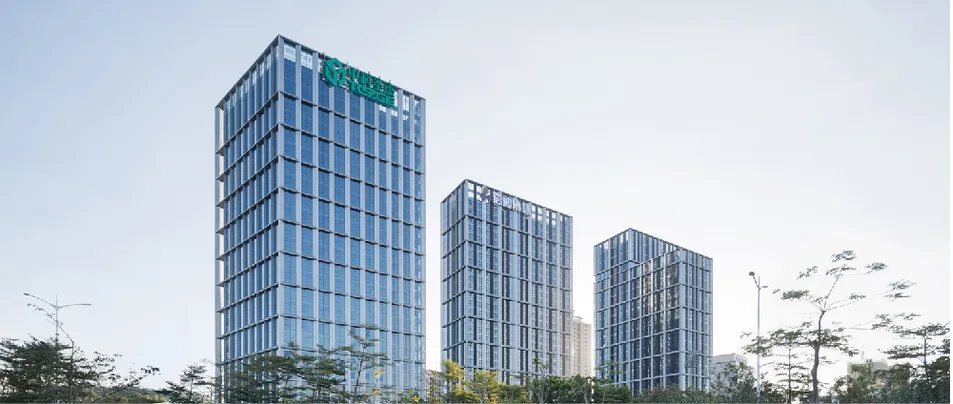

R&D Center Area: 2000m²

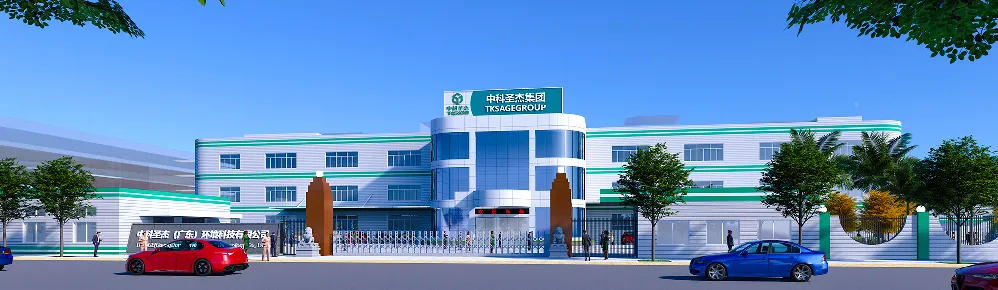

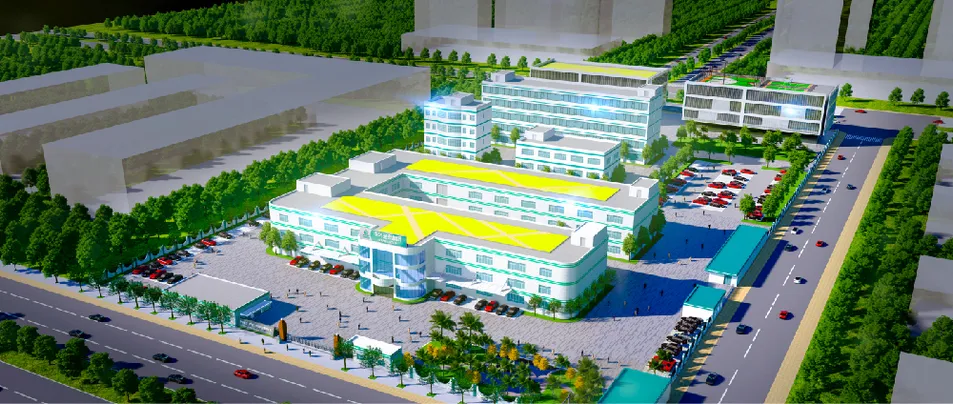

Production Base: 30000+m²

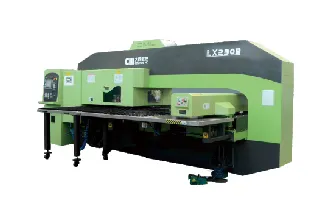

CNC Punching Machine

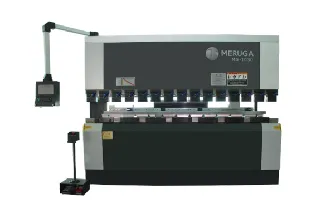

CNC Bending Machine

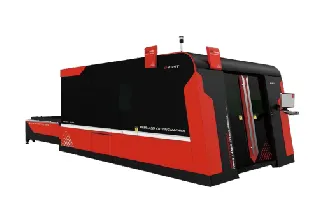

Laser Cutting Machine

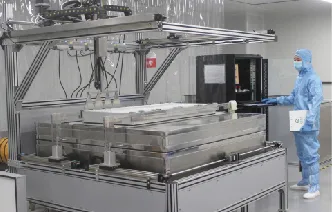

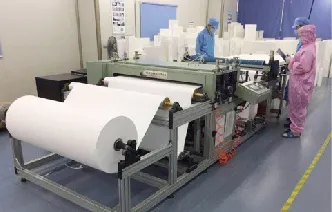

Automatic Filter Pleating

Filter Pleating Process

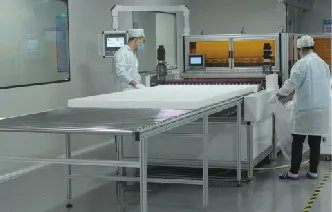

Automatic Filter Test Bench

⌘

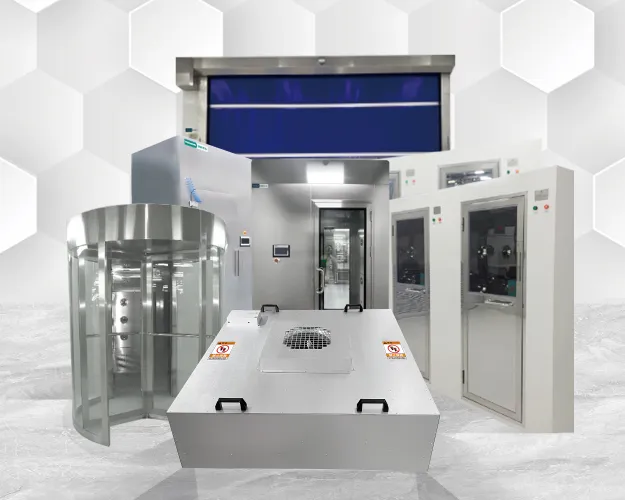

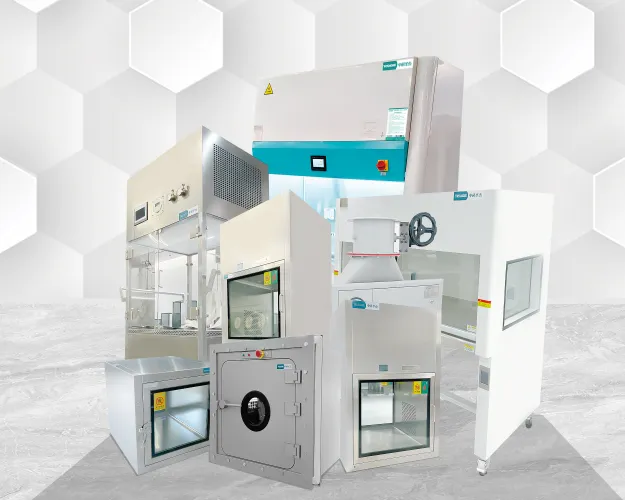

Main Product Ranges

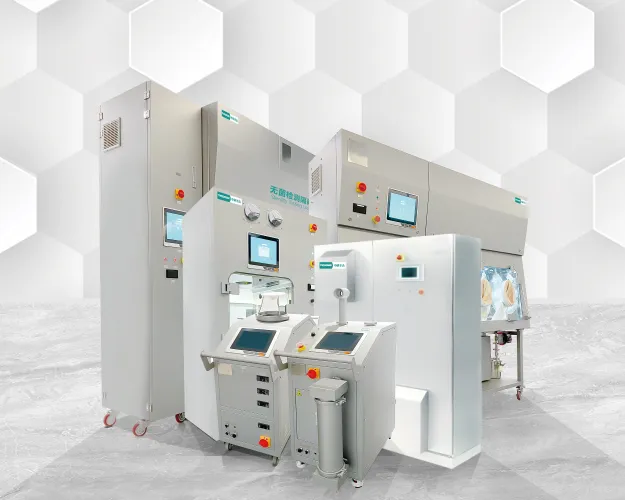

Life Science Sterilization

Biopharmaceutical Cleanroom

Electronics & Energy Control

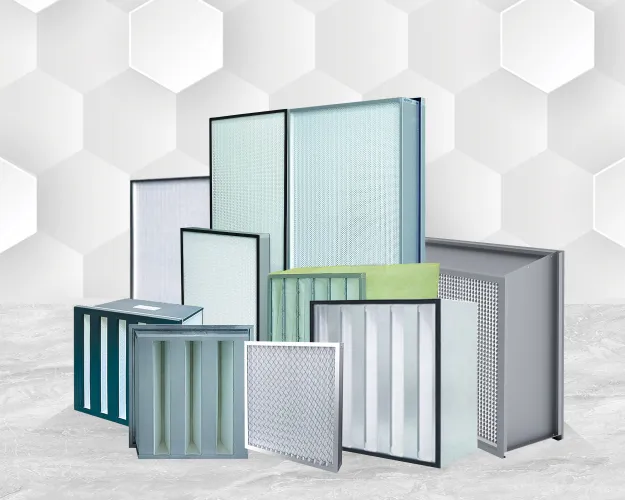

Air Filtration Systems

Frequently Asked Questions

What is the standard air speed for this cargo air shower?

The system provides a high-velocity air stream at the nozzles ranging from 18 to 22 meters per second for effective contamination removal.

Is the blowing time adjustable?

Yes, the blowing time is set to 10 seconds by default but can be adjusted between 10 to 99 seconds via the control panel.

What materials are used for the main cabinet?

The main cabinet is constructed from 1.2 mm cold-rolled steel plate with an electrostatic spray treatment. Stainless steel is used for the doors and nozzles.

What kind of filtration efficiency does it offer?

It features a double-stage filtration system including primary efficiency filters and HEPA filters with an efficiency of 99.99% at 0.3um.

What door opening mechanisms are available?

Available options include wireless remote control, microwave automatic sensors, non-contact sensing switches, and standard contact button switches.

What certificates does the product hold?

The equipment is manufactured under ISO9001-2015 standards and holds 3C, CE, and UL certifications.
