Heavy-Duty Adjustable H20 Formwork Solutions for Quick Assemble Projects

Customization:	Available
After-sales Service:	Technical Support, CAD/3D Design, on-Site Guidanc
Warranty:	1 Year

📋 Basic Information

Model NO.

H20 Timber Beam and Formwork System

Certification

ISO, CE

Material

Steel Wood

Type

Wall Formwork

Colour

Yellow, Customized

Advantage

Quick Assemble

Production Capacity

2000 Square Meters/Month

🏗️ Product Description

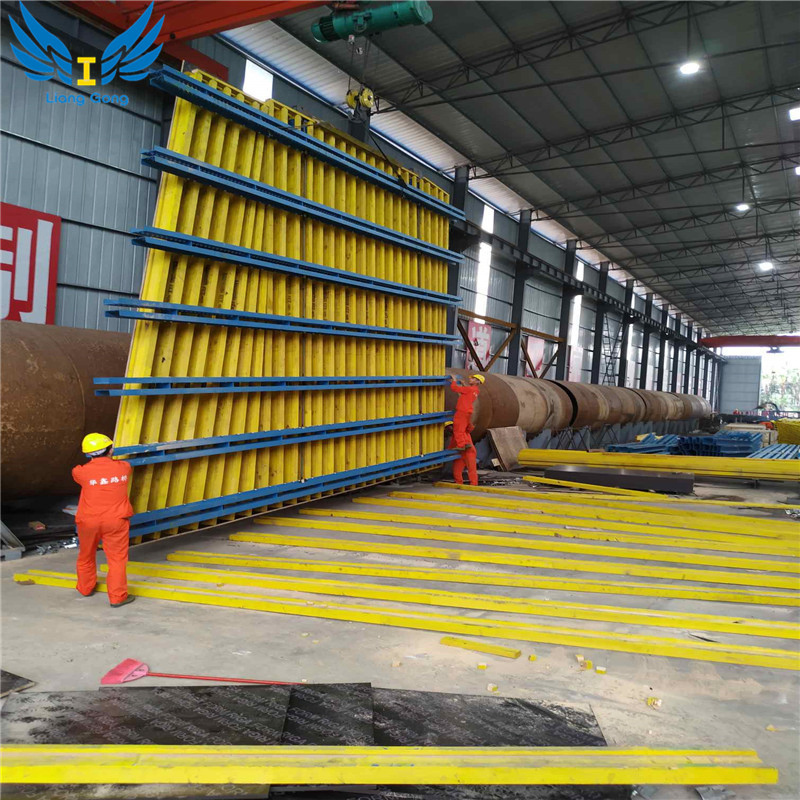

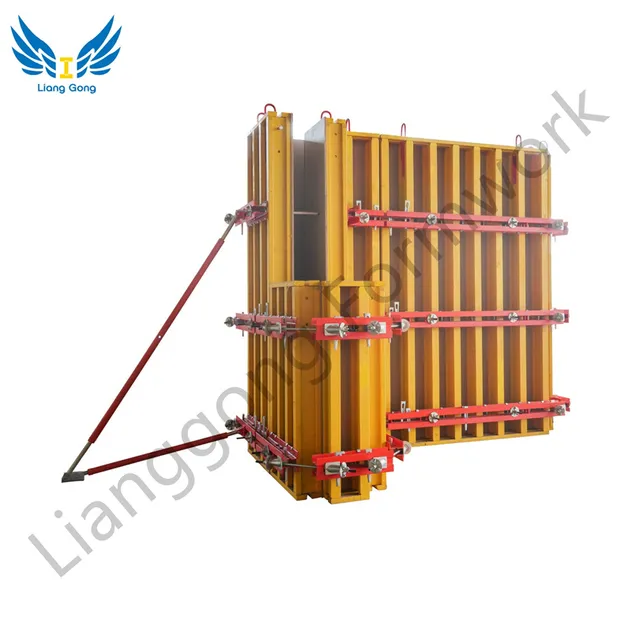

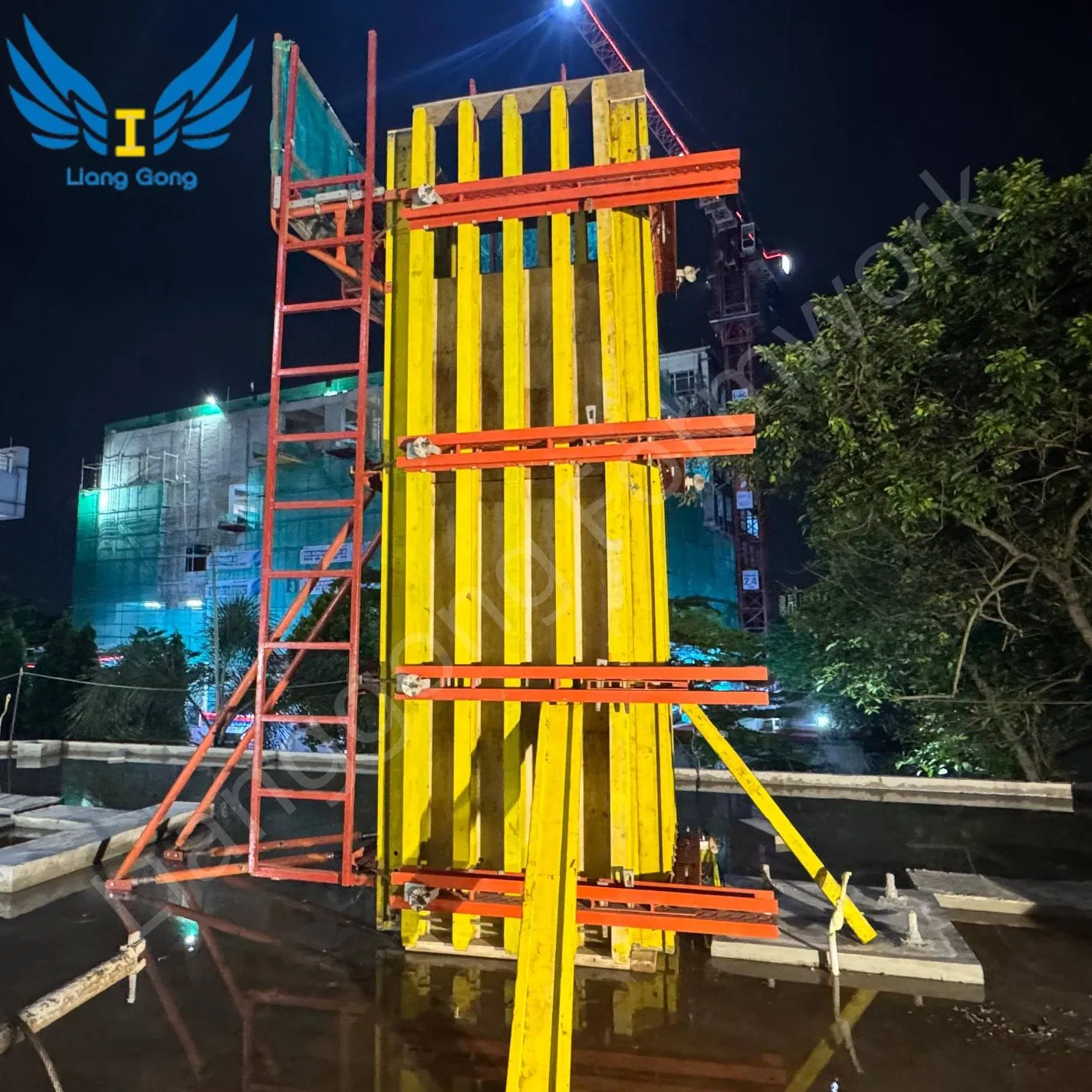

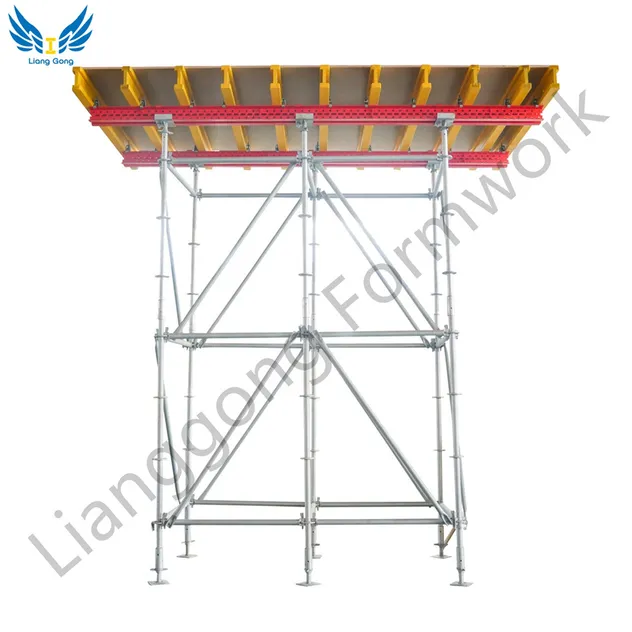

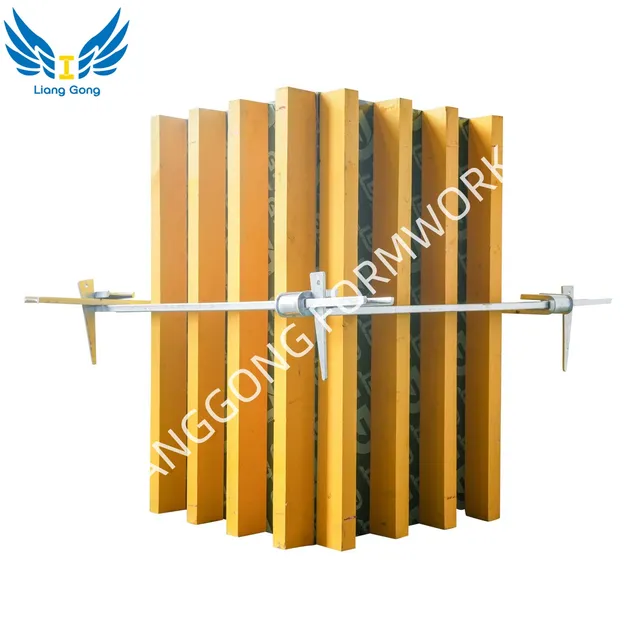

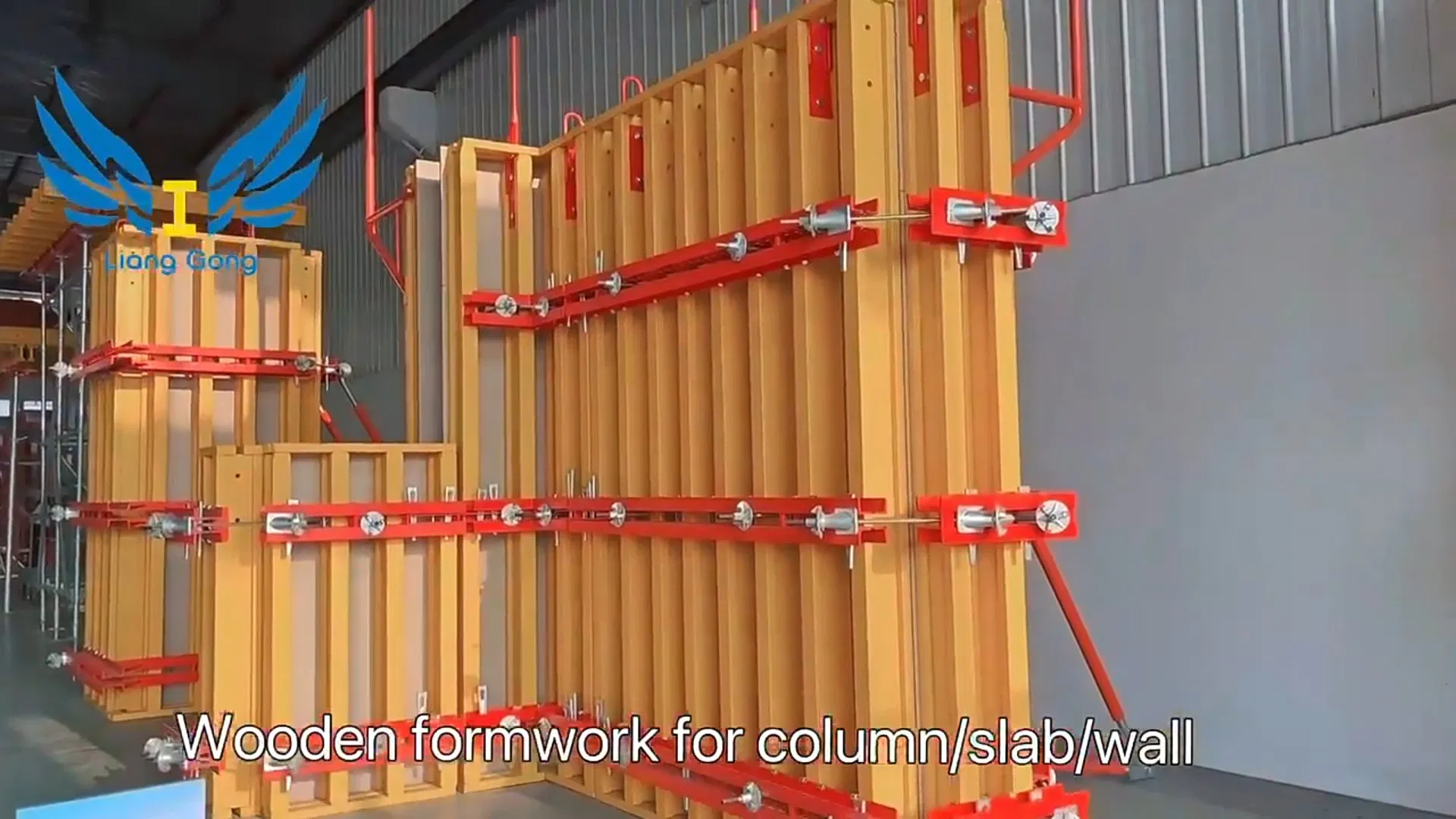

The H20 Timber Beam Formwork System is a reliable ally for concrete wall and slab projects. This robust combination of timber beams, steel walers, and plywood panels guarantees flawless finishes and precise formations with high reusability. Its easy assembly and versatility cater to diverse architectural designs, perfect for residential, commercial, and infrastructure builds. Experience unmatched strength, flexibility, and load-bearing capability for swift, cost-efficient construction.

🔧 Assembly Process

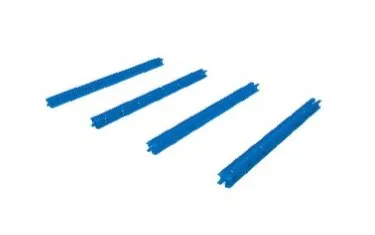

1. Positioning of Walers

Arrange walers as per the drawing on the platform. Mark positions and draw diagonal lines. Make sure the diagonals formed by any two walers are equal to ensure a perfect rectangular frame.

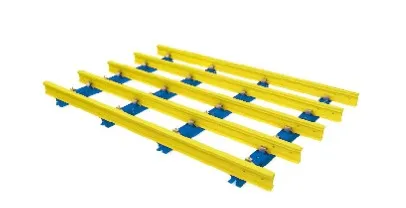

2. Timber Beam Assembling

Position a timber beam at each waler end as indicated in the drawing. Secure with flange clamps. Connect beam ends with a thin benchmark line to align other beams, ensuring they are parallel and clamped securely.

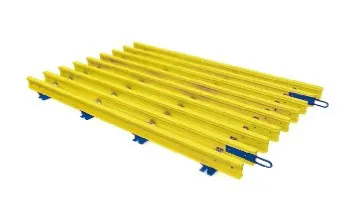

3. Installing Lifting Hooks

Attach lifting hooks as per technical drawings. Use clamps on both sides at the hook point, ensuring extreme tightness for safety during crane operations.

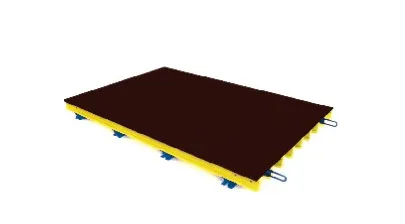

4. Laying Panel

Trim the plywood panel according to the project specifications and secure it firmly to the timber beams using specialized self-tapping screws.

⚙️ System Components

Component	Function Description
Plywood	Forms the wall surface; highly durable, usable up to 30-40 times.
H20 Timber Beam	Supports the plywood, transfers loads, and prevents structural deformation.
Steel Waler	Enhances overall stiffness, ensures uniform load transfer, and fixes shape.
Flange Claw	Critical connector for fixing timber beams to steel walers.
Hook	Engineered component for safe lifting of the formwork units.

⭐ Key Characteristics

Lightweight & Rigid: High strength-to-weight ratio for easy handling without sacrificing stability.
Shape Stability: Highly compressed panels ensure the formwork remains stable under high pressure.
Weather Resistant: Anti-corrosion and water-resistant treatment extends site service life significantly.
Universal Compatibility: Standard sizes match most European formwork systems globally.
Versatile Application: Suitable for all types of walls and columns, providing high rigidity.
Pre-assembly Ready: Can be assembled on-site or pre-delivered to save time and construction costs.

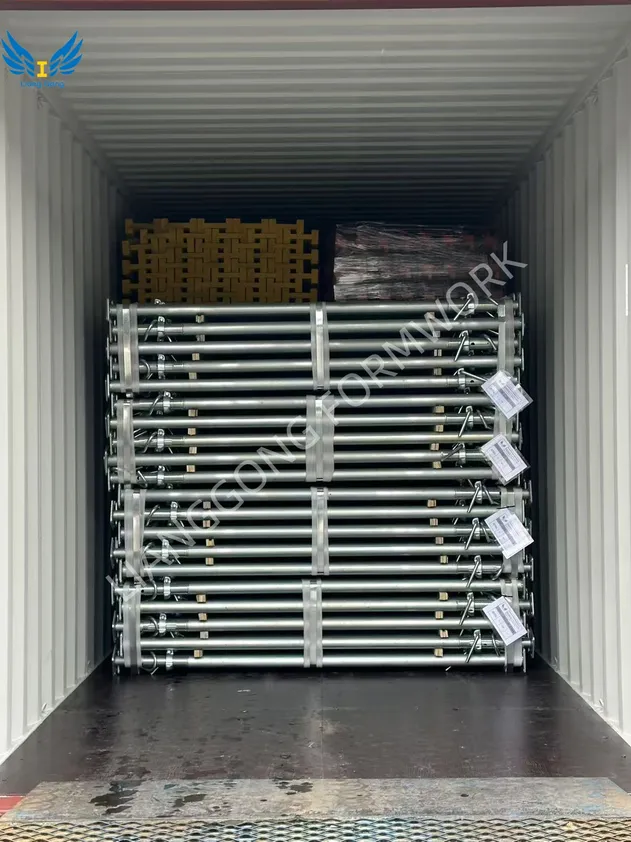

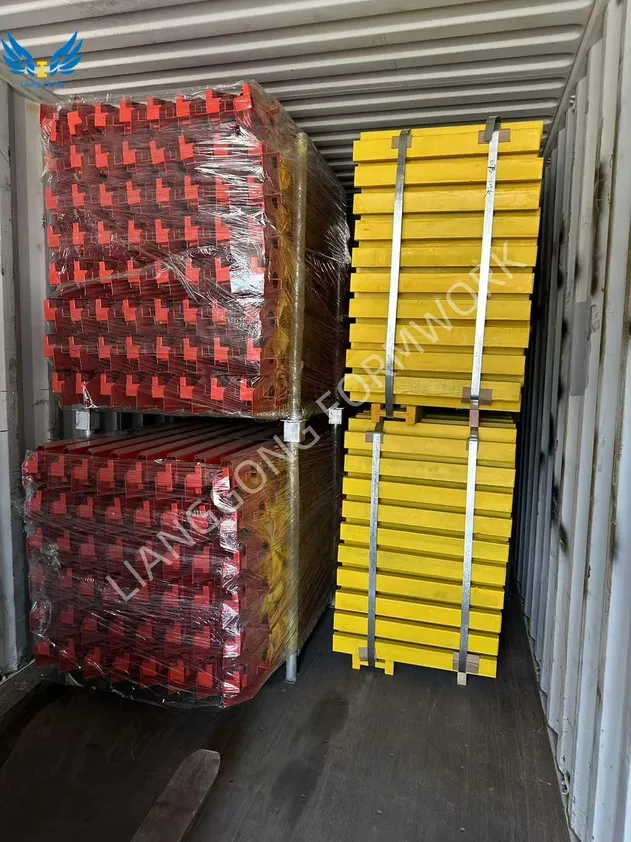

📦 Packing & Delivery

🛠️ Technical Support & Service

1. Consulting & Design: Personalized proposals and Auto-CAD structural drawings tailored to your project.

2. Quality Inspection: Large-scale production with professional QC teams and full test reports.

3. Global Shipping: Standard export packaging ensures secure and rapid transit to any destination.

4. Expert Instruction: Remote or on-site guidance to ensure your team masters the system efficiently.

❓ Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a professional manufacturing factory specializing in formwork and scaffolding systems.

Q: What is the typical delivery time for orders?

A: Usually 5-15 days if the items are in stock. For custom or large orders, it takes 15-20 days depending on the total quantity.

Q: Do you provide product samples?

A: Yes, free samples are available; however, the customer is responsible for the freight costs.

Q: What are your standard payment terms?

A: For payments ≤ 1000USD, 100% upfront. For payments ≥ 1000USD, 30% T/T in advance, with the balance due before shipping.

Q: Can the H20 timber beam system be reused?

A: Yes, the system is designed for high durability. The plywood can typically be reused 30-40 times, and the timber beams even longer with proper care.

Q: Do you offer on-site technical training?

A: Absolutely. We provide both remote guidance and on-site expert support to ensure your construction team masters the assembly and use of the system.
