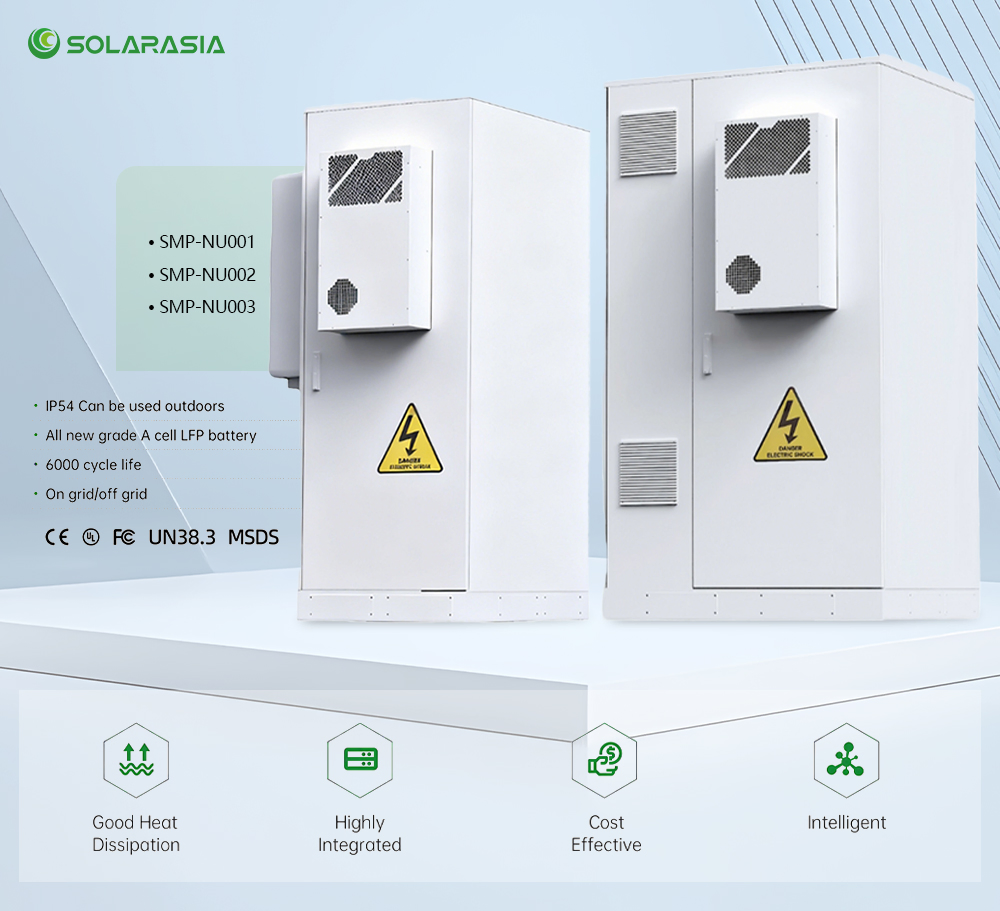

High Capacity All in One Inverter Ess Energy Storage Integrated Cabinet 51.2V 200ah 10.24kwh Battery Cabinet for Solar System

Customization: Available
Container Size: 773*560*165mm
Weight: 78kg

Product Description

i

Basic Info.

Model NO.
SMP-NU002
Nominal Voltage
51.2V
Nominal Capacity
10kwh
Cycle Life
6000 Cycles
Battery Type
LiFePO4
Grid Connection
off Grid, on Grid
Protection Class
IP54
MPPT Voltage
150-850V
Cooling
Forced Air/Natural Cooling
Origin
China

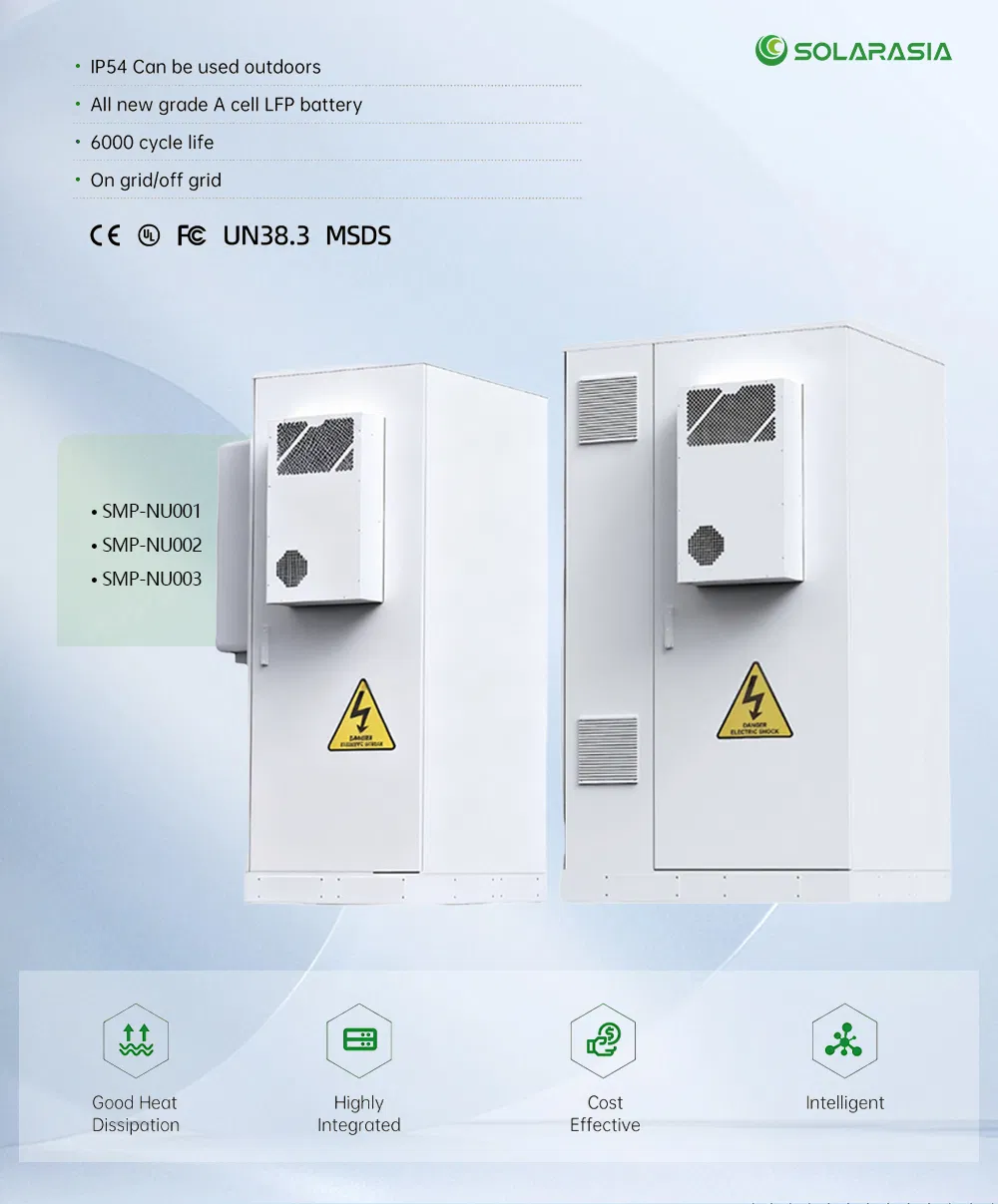

Energy Storage Integrated Cabinet

Product Highlights

Good Heat Dissipation Designed with an optimized airflow structure and high efficiency cooling system, ensuring stable temperature control and extended battery lifespan.
Highly Integrated Integrates batteries, BMS, PCS, EMS, and fire protection into a single compact cabinet, reducing installation complexity.
Cost Effective Modular design simplifies engineering and maintenance, providing a high-value solution for residential and industrial use.
Intelligent Operation Equipped with advanced monitoring and real-time diagnostics for optimized energy usage and higher safety.

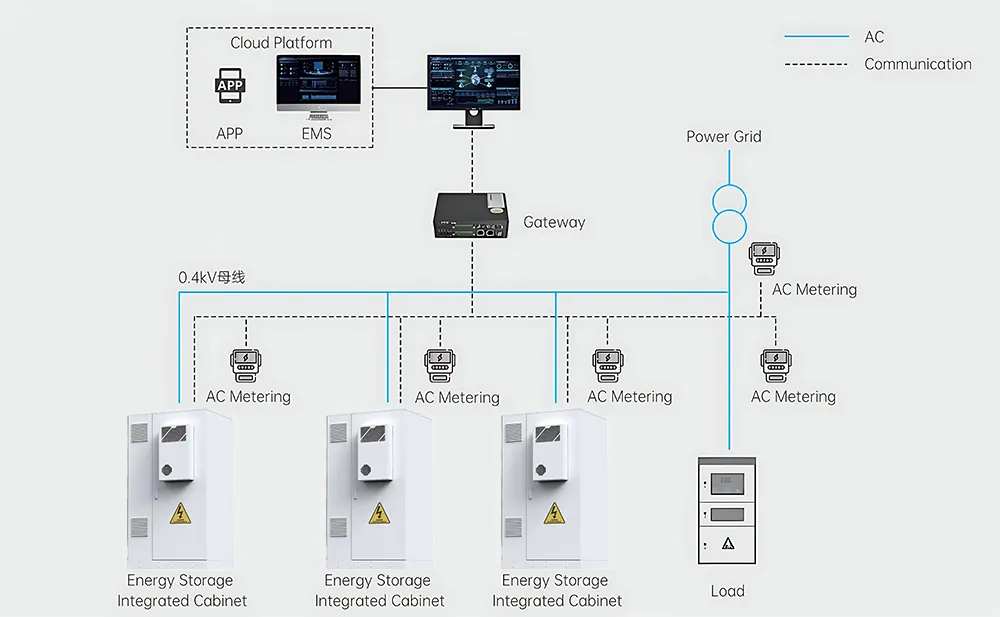

System Features

Specification

Parameter SMP-NU001 SMP-NU002 SMP-NU003
Battery Parameters
Nominal Voltage51.2V
Nominal Capacity200Ah
Energy10.24kWh
Cycle Life>6000 (25℃), 80% DOD
Inverter Parameters
Inverter Power20kW30kW40kW
Max. DC Input Power26,000W48,000W64,000W
MPPT Voltage150-850V
General Parameters
Protection ClassIP54
CommunicationRS485, CAN, WiFi
Dimension800x1000x2000mm

Application Scenarios

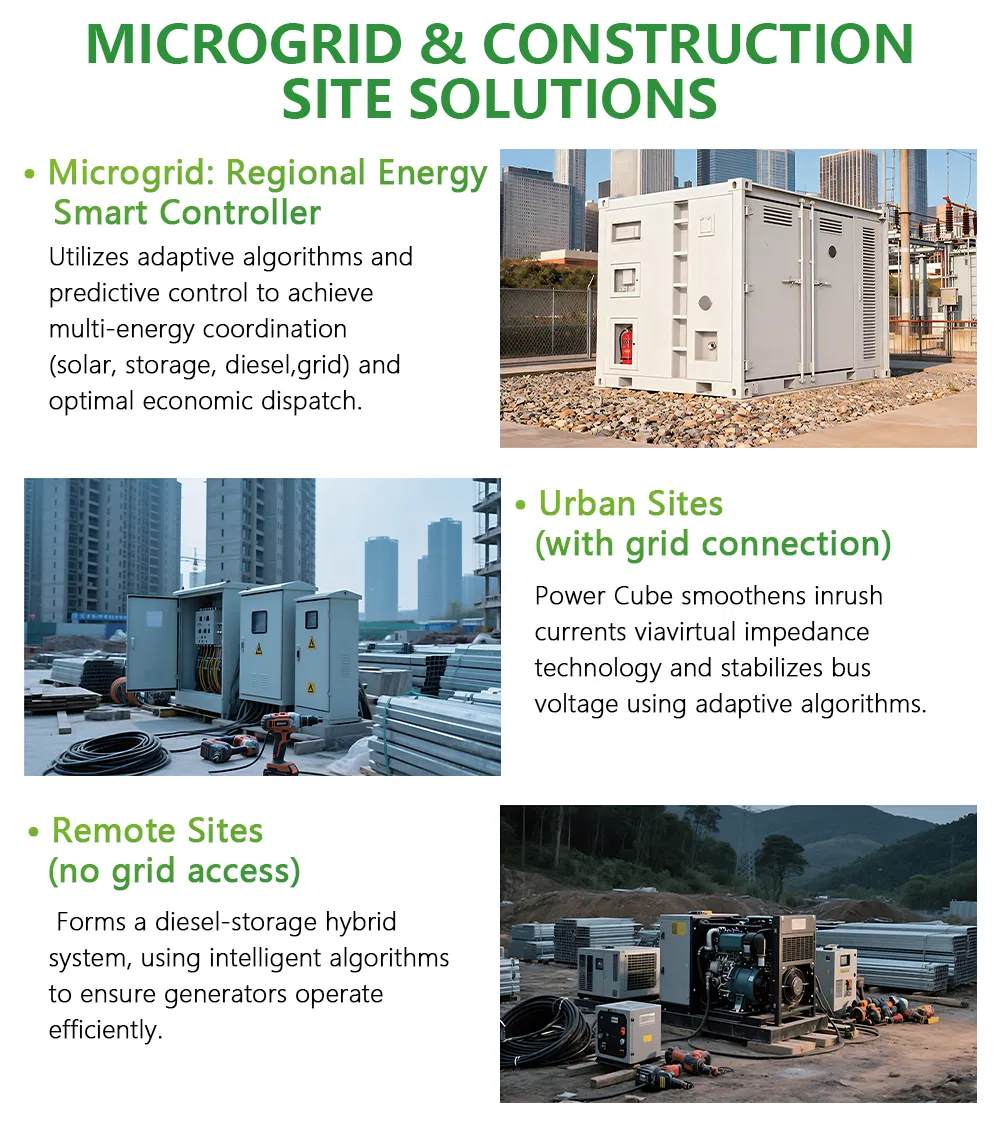

Scenario 1 Scenario 2

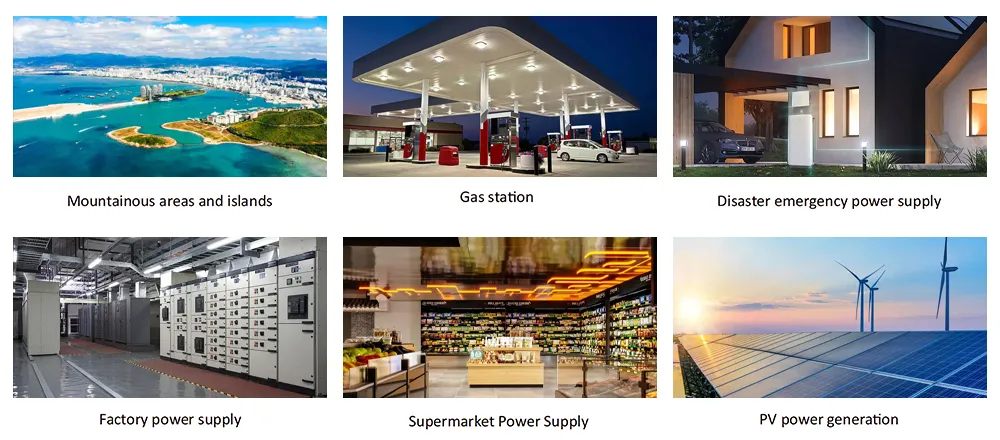

Application Overview

Certifications & Packing

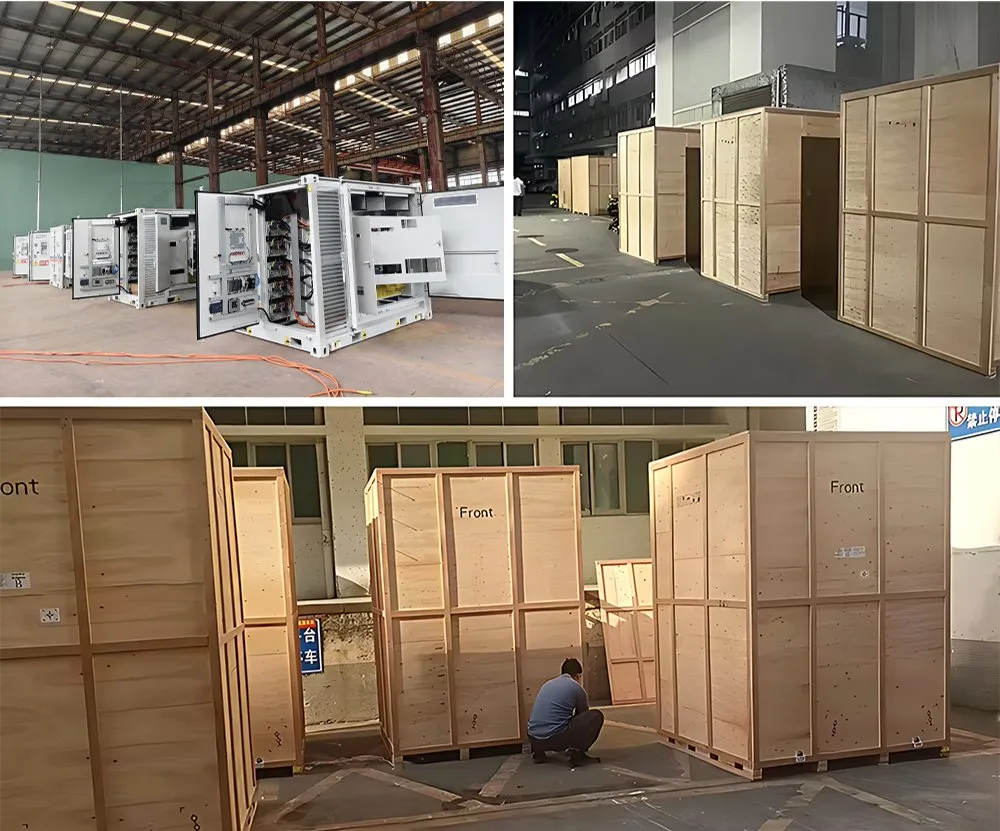

Certificates Packing
Delivery

Profile

Established in 2016, we are a preeminent energy technology enterprise. We specialize in solar panels, solar inverters, lithium batteries, and integrated solar systems. Our products have been distributed in over 100 countries, earning a remarkable reputation. Our manufacturing facilities are equipped with state-of-the-art production technology, ensuring full compliance with ISO, TUV, and CE standards. We focus on providing timely responses, professional guidance, and excellent service to partners worldwide, embarking together on the journey of sustainable energy innovation.
Facility 1 Facility 2
?

FAQ

What is an outdoor energy storage cabinet?
A fully enclosed system for safely storing electrical energy outdoors, integrating lithium batteries, BMS, and protection circuits.
What is the typical operating temperature range?
The system typically operates between -20°C and 60°C, utilizing advanced thermal management to ensure stable performance.
How long is the expected battery lifespan?
The batteries generally last 6–10 years or between 4,000–6,000 cycles at 80% depth of discharge.
Is this system compatible with solar or wind power?
Yes, it is fully compatible for off-grid or hybrid energy solutions, allowing for seamless integration with renewable sources.
What kind of maintenance is required for the cabinet?
Thanks to the intelligent monitoring system and IP54 protection, maintenance is minimal. Regular inspections of air filters and cable connections are recommended.
Can multiple units be stacked or connected?
Yes, the system supports stacking, with maximum quantities ranging from 4 to 6 units depending on the specific model and power requirements.
