Advanced 100MW Immersion Cooling System for Crypto Mining

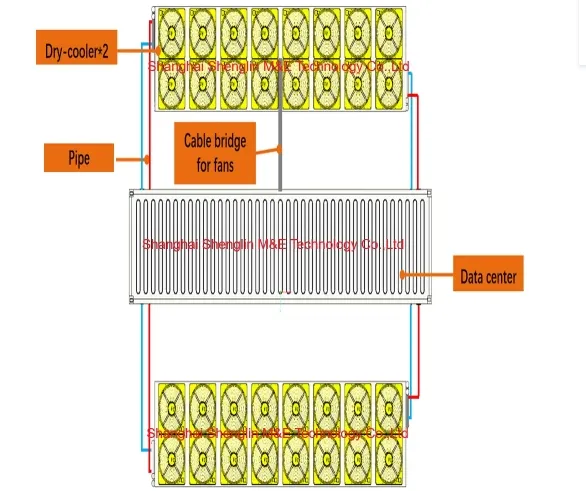

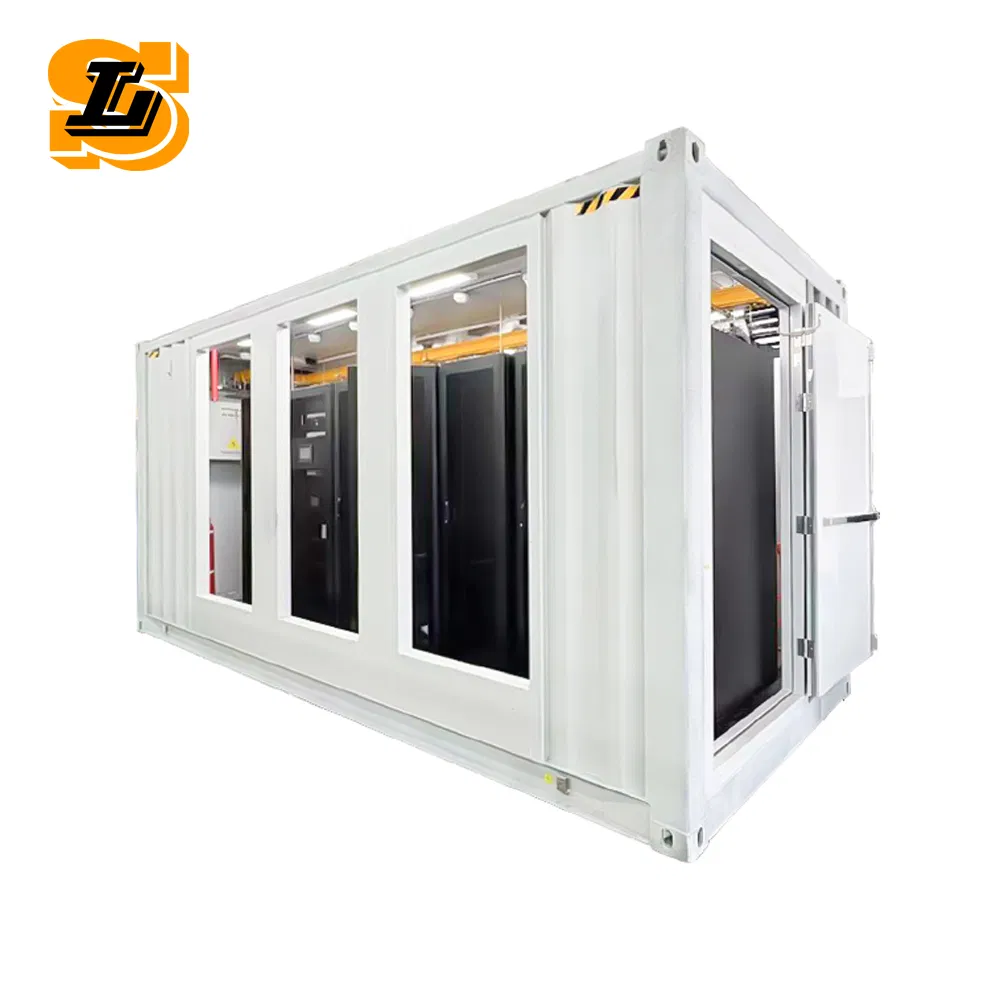

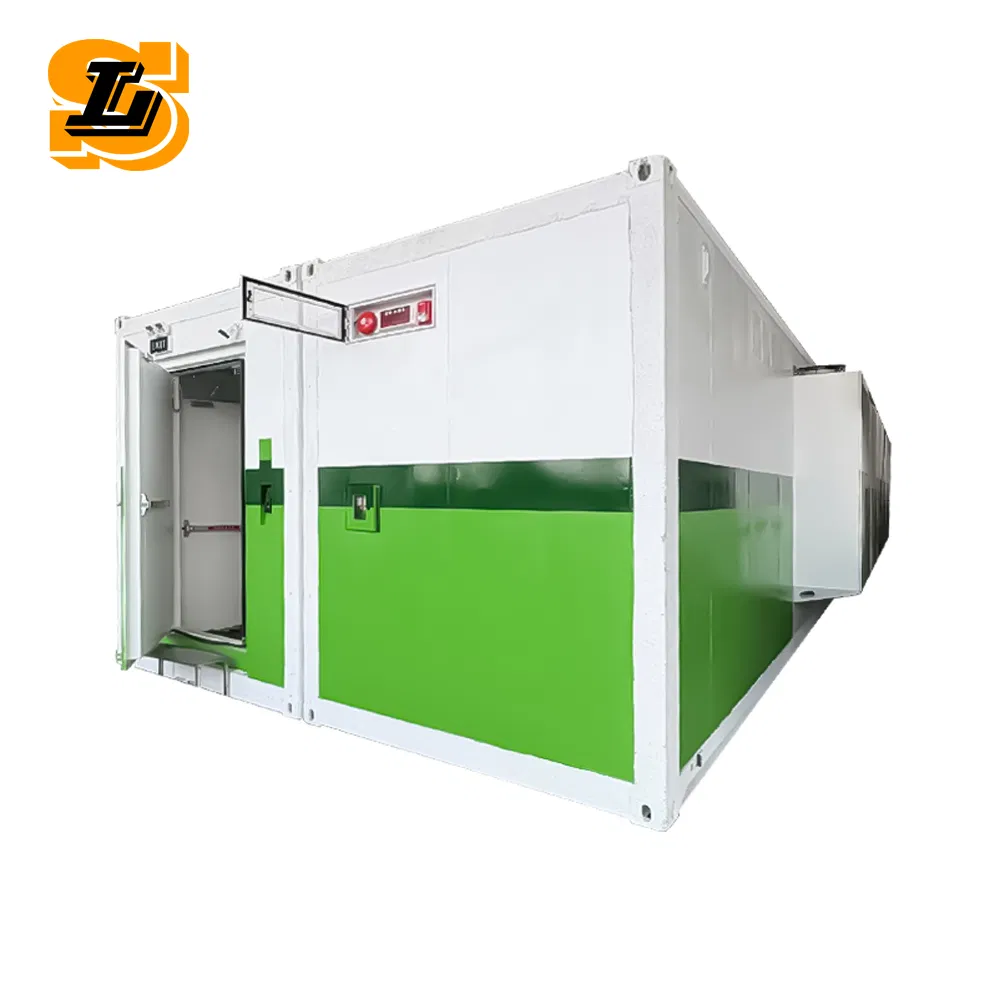

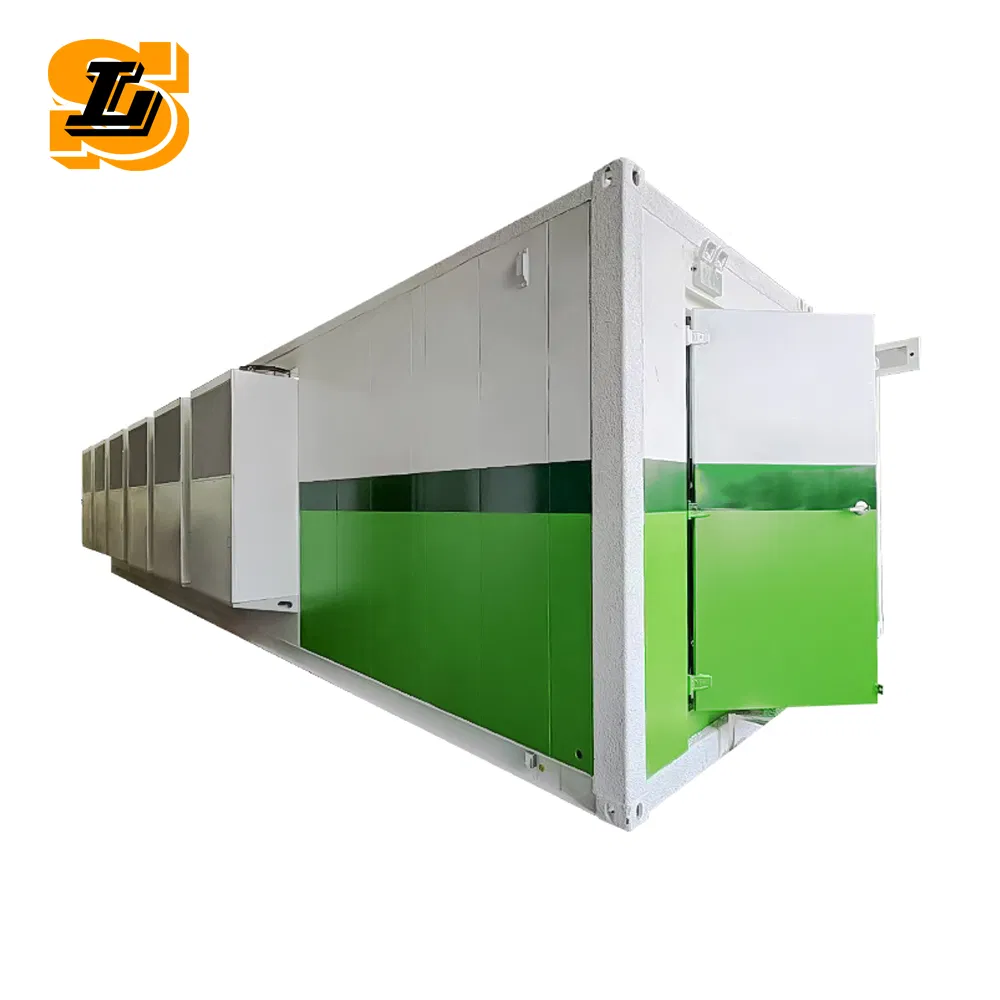

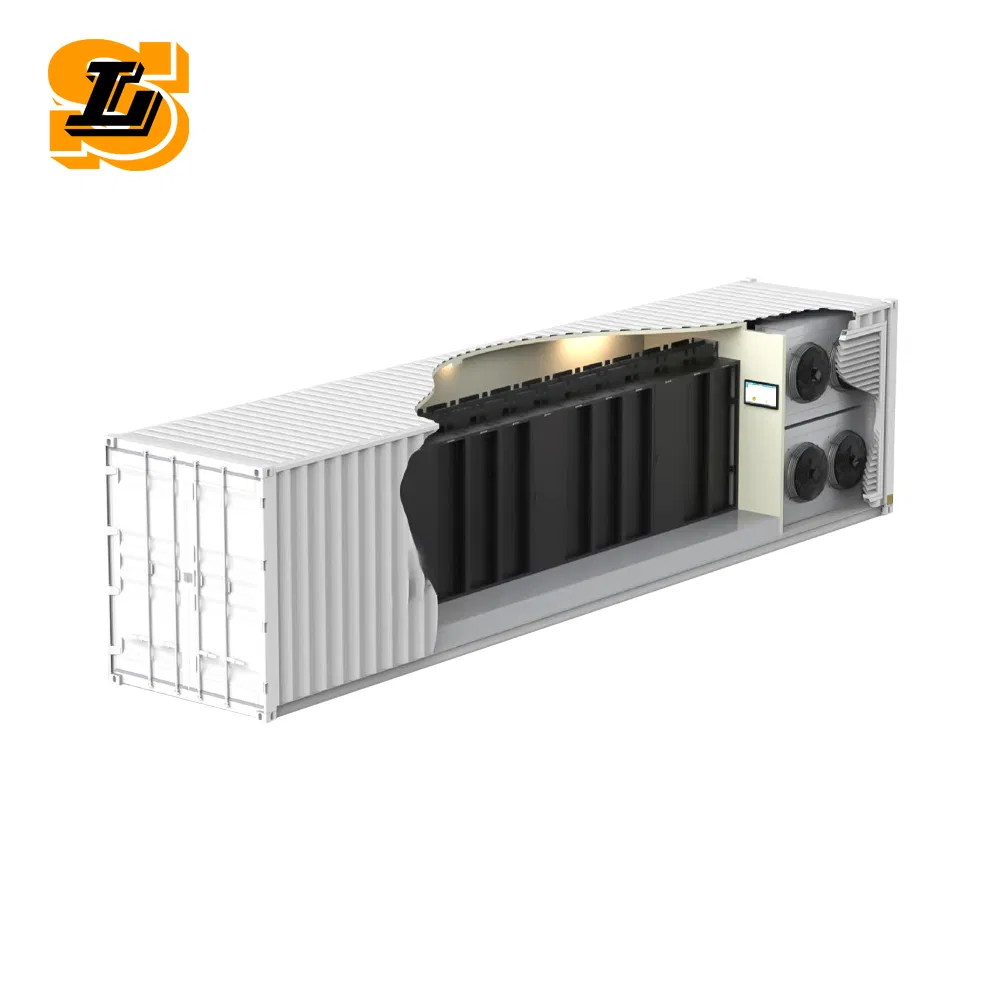

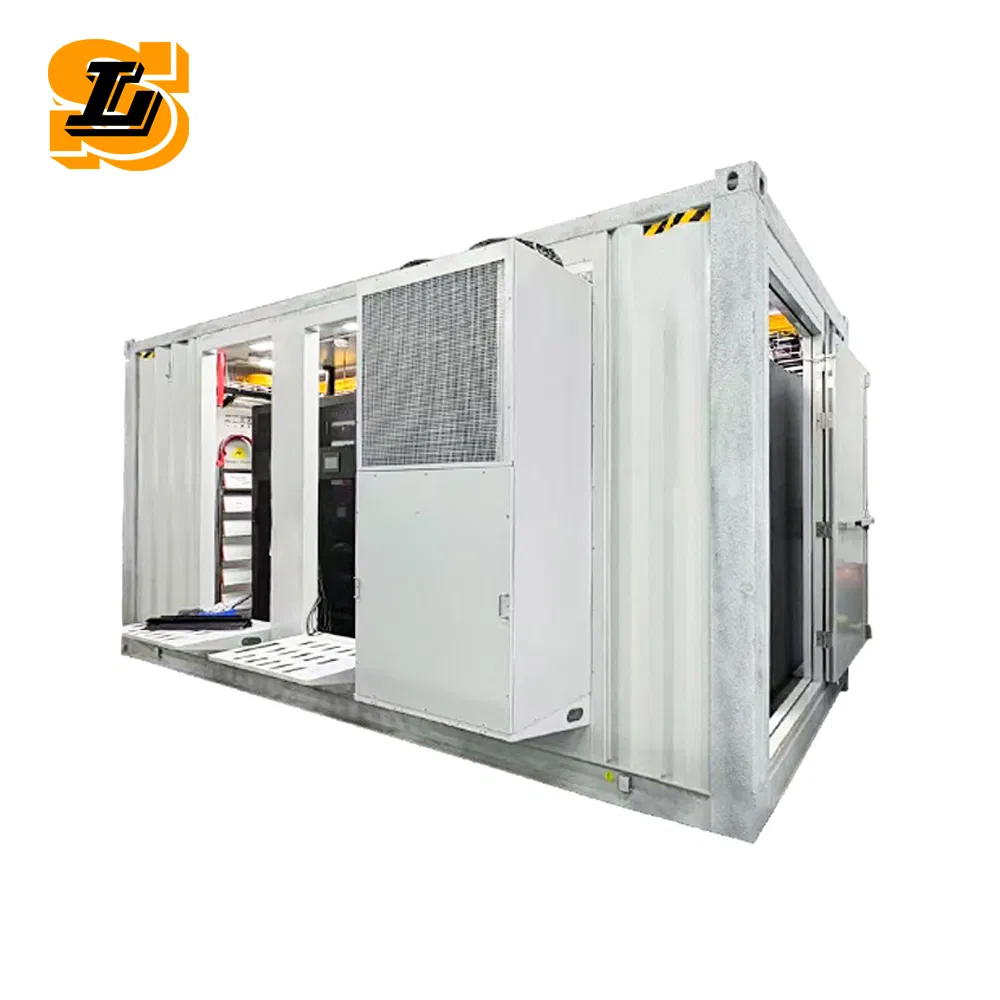

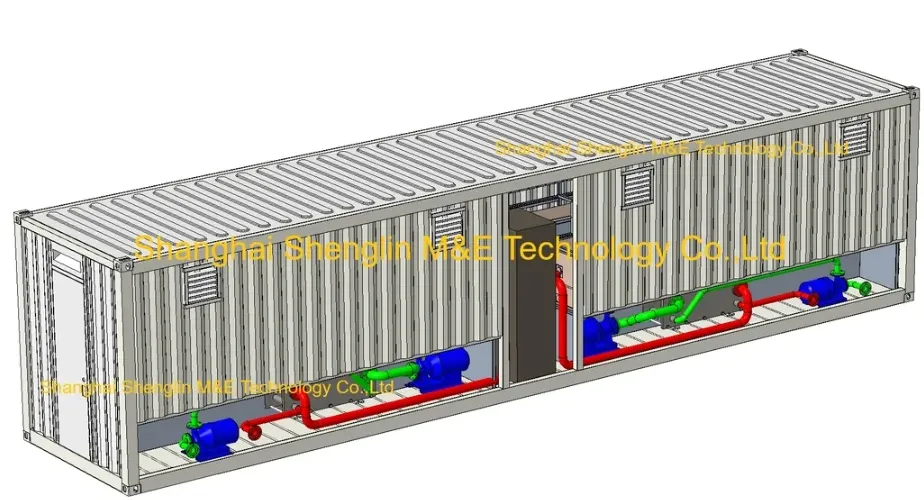

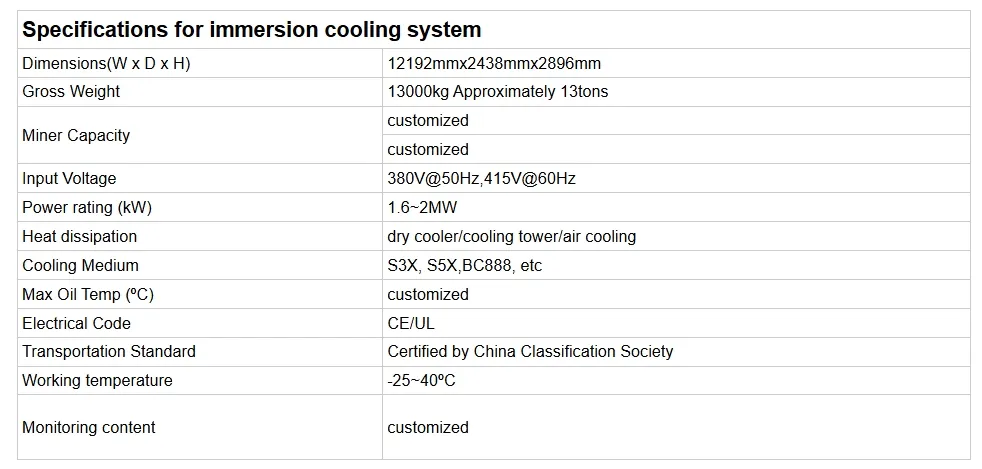

This single-phase immersion liquid cooling equipment meets the requirements of 2000 kW (2MW) heat dissipation, power supply, and distribution network. Designed for rapid deployment, this product is delivered in container form.
Highly integrated systems providing a stable and reliable operating environment for high-power computing.
Designed to withstand various conditions including rain, snow, hail, wind, salt spray, and lightning.
Project 1: USA
Project 2: USA
Capacity designs maximize heat transfer relative to fan energy consumption. Tube coupling ensures low pressure drop.
Equipped with world-leading fan brands (e.g., Ziehl-Abegg) for maximum air flow and long-lasting operation. IP54 protection class.
Rigid enclosure with hard gloss powder coated finish. Unit designed for 100% outdoor installation, leakage tested at 31bar.

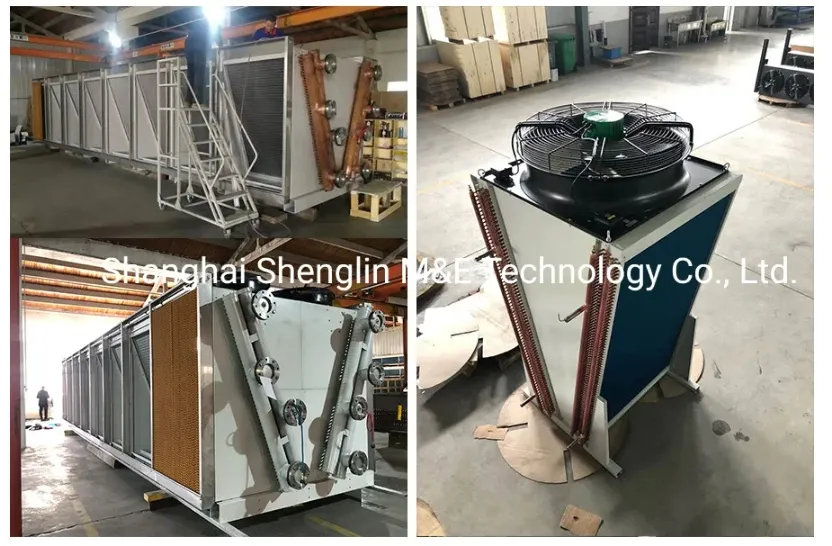

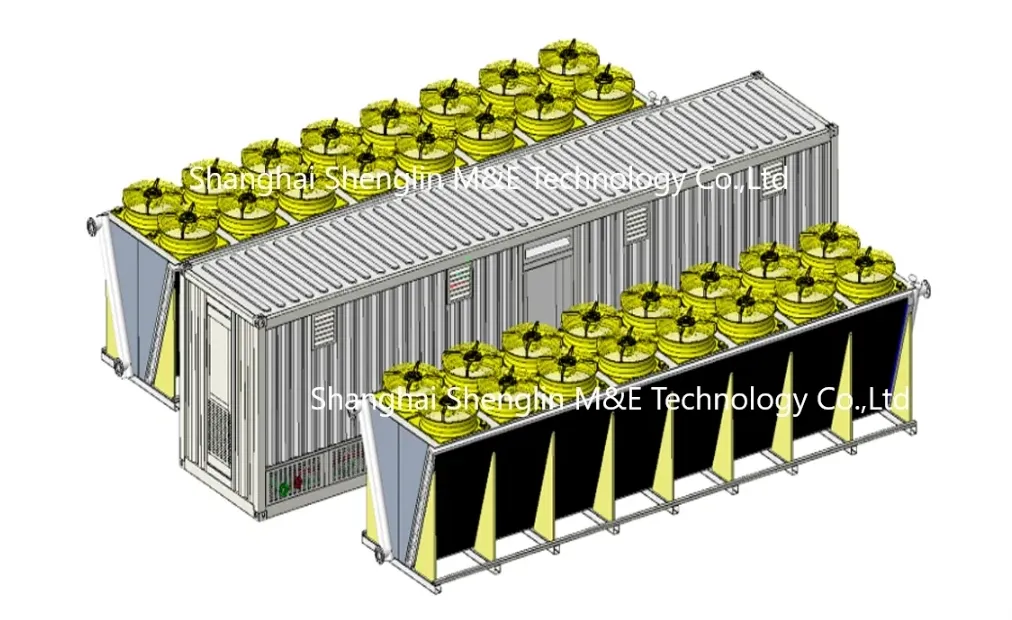

For bitcoin mining farms using immersion cooling, our dry coolers are the most cost-effective way to remove heat. Range: 5kW to 921kW.

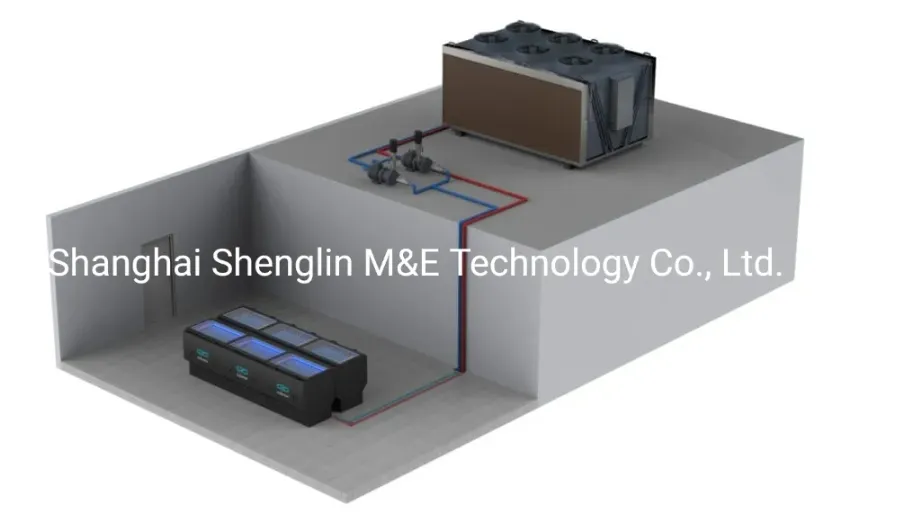

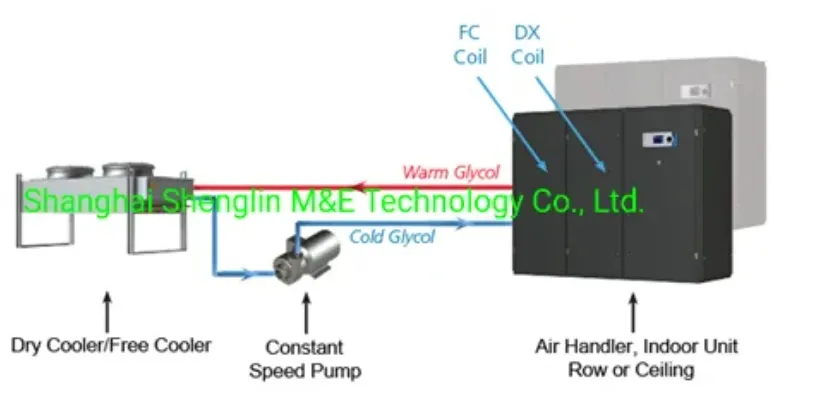

For battery or UPS storage rooms and data centers requiring precision air conditioning, the dry cooler serves as an ideal external cold source.

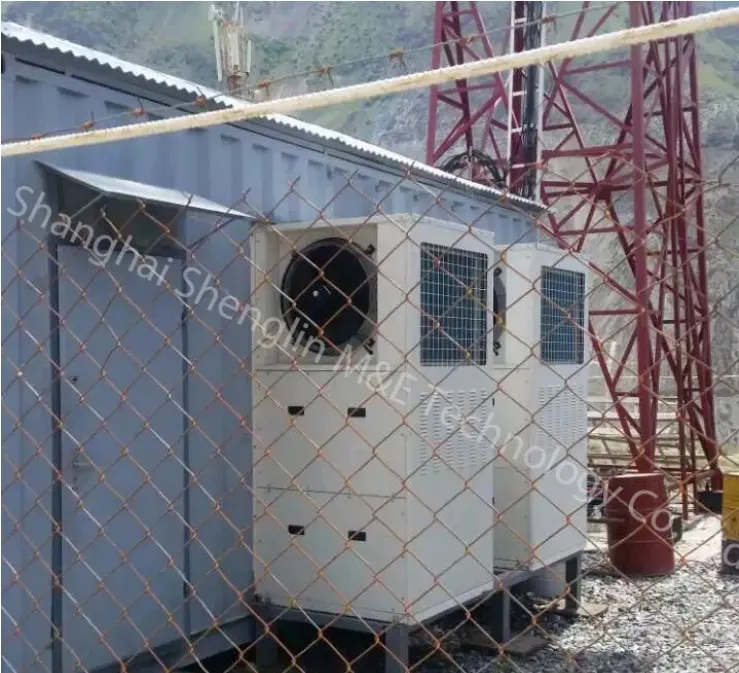

For telecommunication equipment rooms, we provide custom wall-mounted air conditioning designs.
| Type | D1-005 | D1-007 | D1-009 | D1-011 | D1-014 | D1-017 | D1-020 |
|---|---|---|---|---|---|---|---|
| Capacity (Water) KW | 4.89 | 6.83 | 9.39 | 10.99 | 14.32 | 17.01 | 19.80 |
| Water Flow (M3/h) | 0.85 | 1.20 | 1.63 | 1.91 | 2.50 | 3.00 | 3.50 |
| Pressure Drop (kPa) | 36.00 | 58.00 | 25.00 | 40.00 | 50.00 | 60.00 | 40.00 |
| Air Flow (M3/h) | 2828 | 2492 | 6199 | 5827 | 8469 | 8168 | 7601 |
| Sound Level dB(A) | 31 | 31 | 43 | 43 | 49 | 49 | 49 |
| Weight (kg) | 38 | 48 | 55 | 60 | 75 | 82 | 91 |
* Note: Standard units are vertical discharge. For horizontal discharge, add "H" to model nomenclature.
