Heavy-Duty Mobile Crypto Mining Container

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
Mobile Crypto Mining Container
Type
Water-Cooled
Cooling Water
Water/Ethylene Glycol
System Type
Open System
Fans Species
Frequency Fan
Noise Level
Low
Application Fields
Immersion Mining Cooling
Certification
CE, UL
Power Supply
380V/400V/415V
Tube Material
Copper, Aluminum, SS304, SS316L
Production Capacity
70 sets/Month
Origin
China

Heavy-Duty Mobile Crypto Mining Container

A professional solution for dry air cooling, chillers, and condensers with over 16 years of expertise in the HVAC area. Designed for maximum efficiency in immersion mining cooling applications.

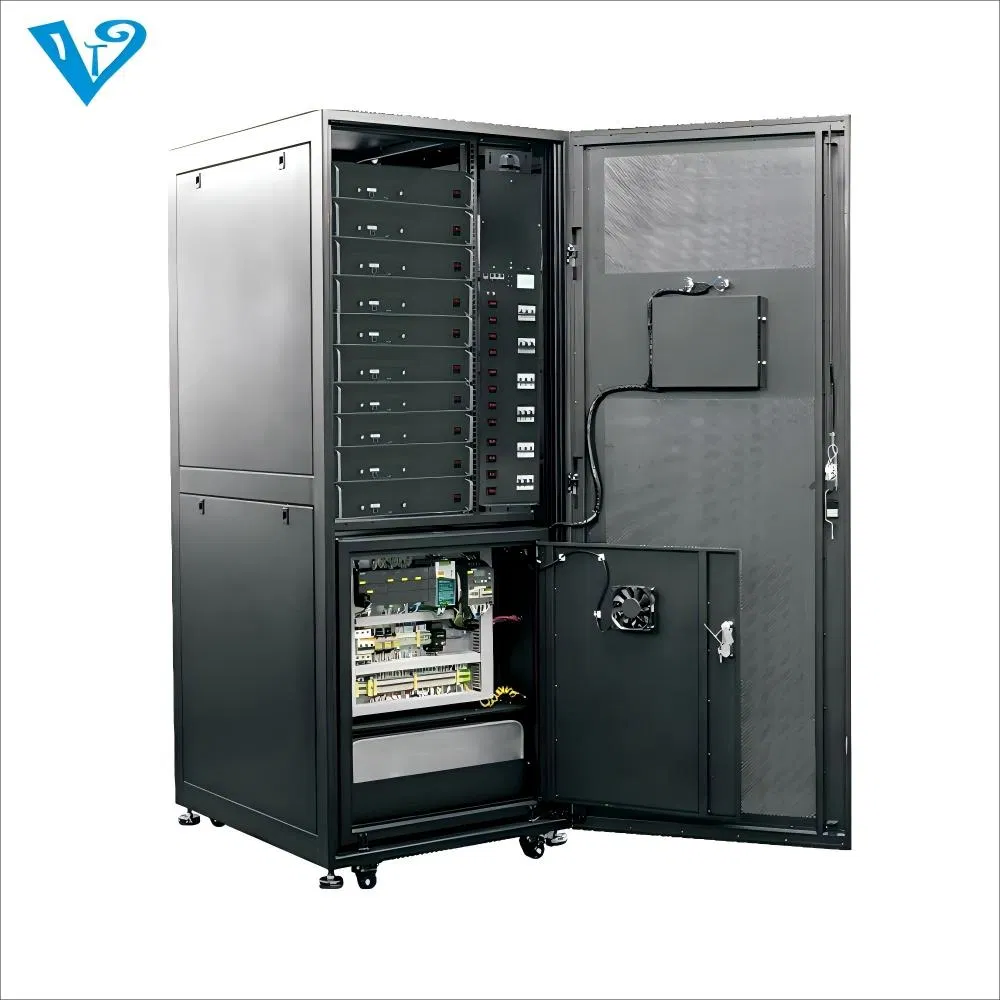

Cabinet Cooling System Specifications
Dimensions (W x D x H)800mm x 1000mm x 2000mm
Gross Weight480kg
Miner Capacity10 PCS 2U servers
Input Voltage380V@50Hz, 415V@60Hz
Power Rating100 kW

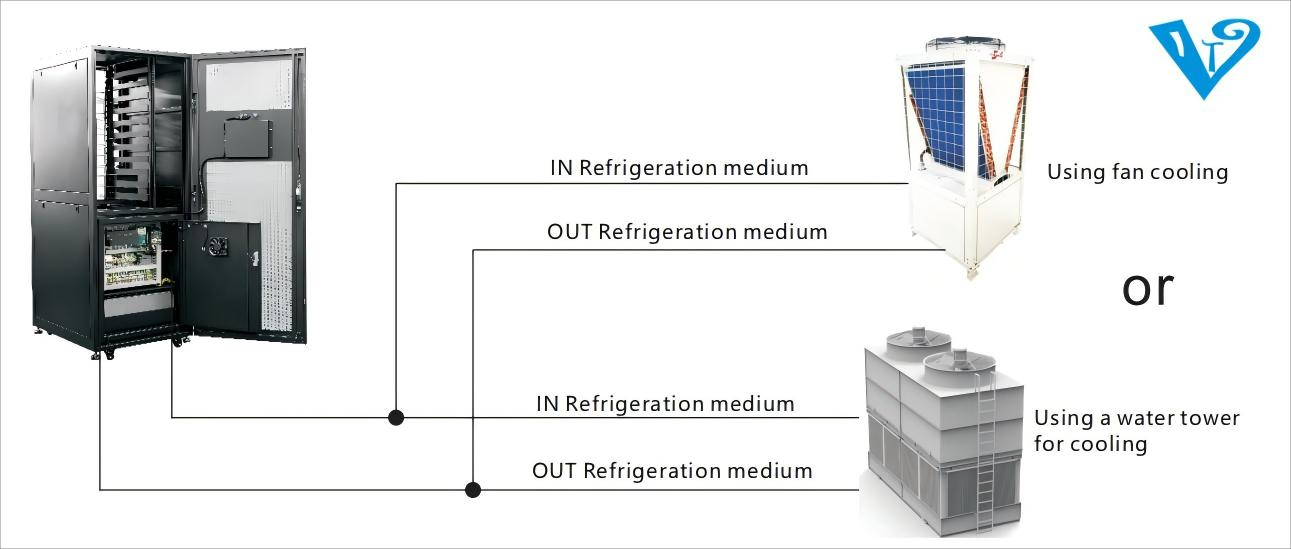

Heat Dissipation OptionsDry-cooler / Wet Cooling tower
Cooling MediumSoftened water / Antifreeze fluid
Max Oil Temp (ºC)In 55ºC, Out 60ºC
Monitoring ContentTemperature sensor, liquid sensor, water ban sensor, pressure sensor, 10 inch touch screen

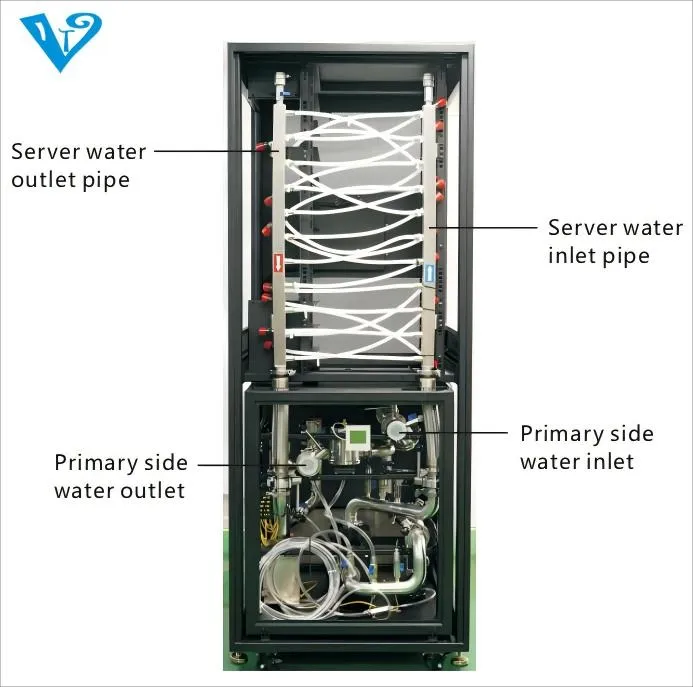

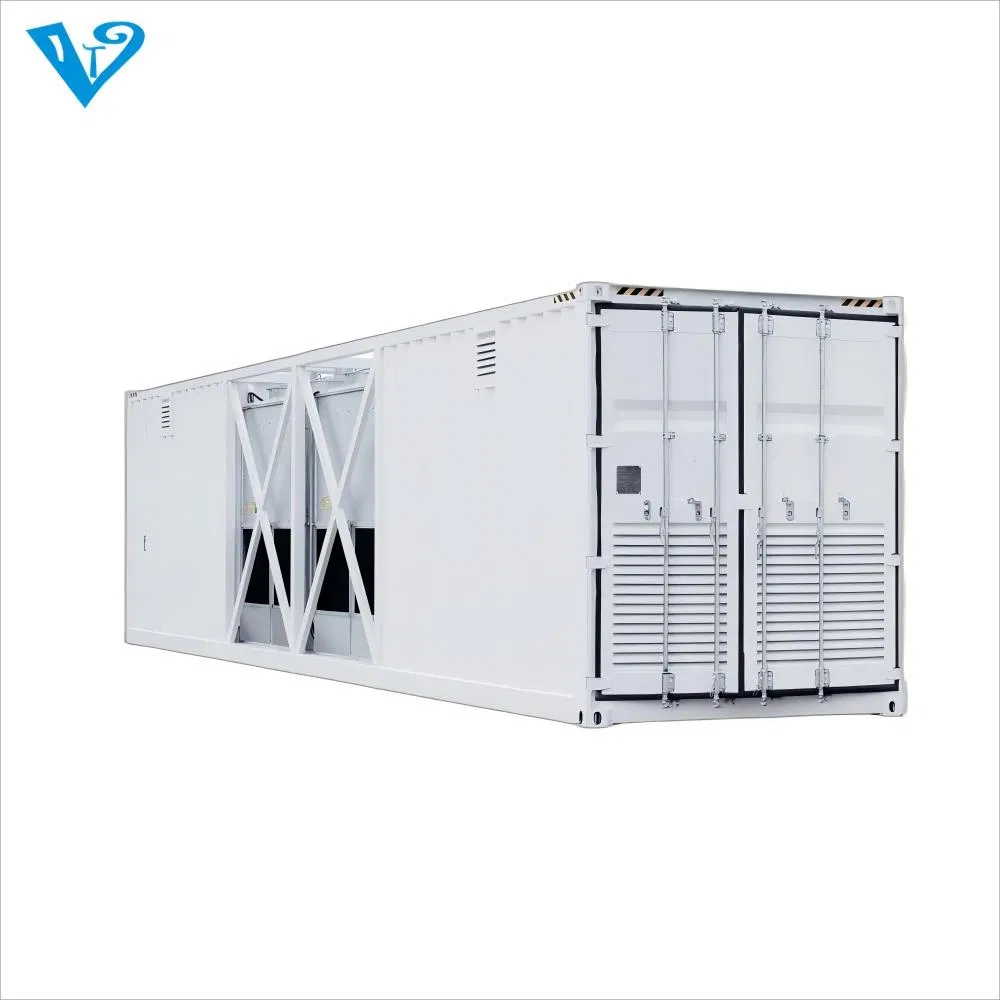

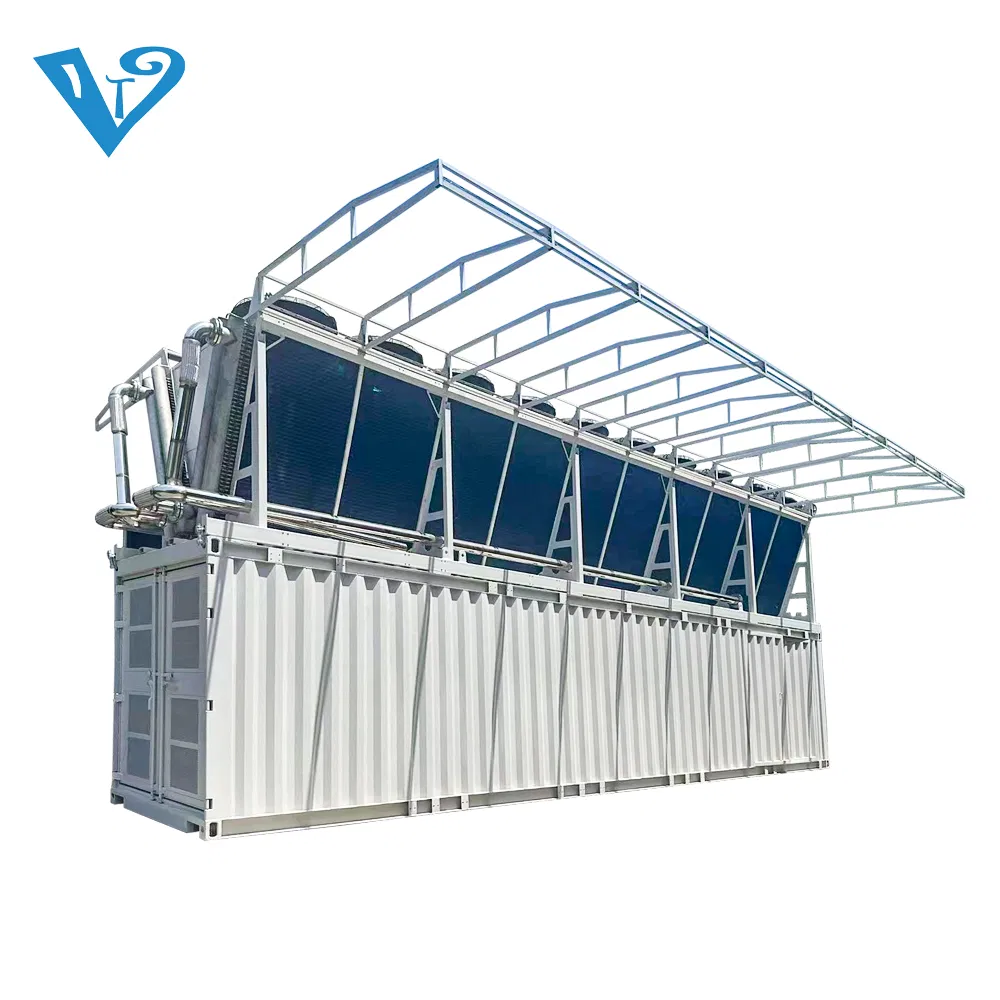

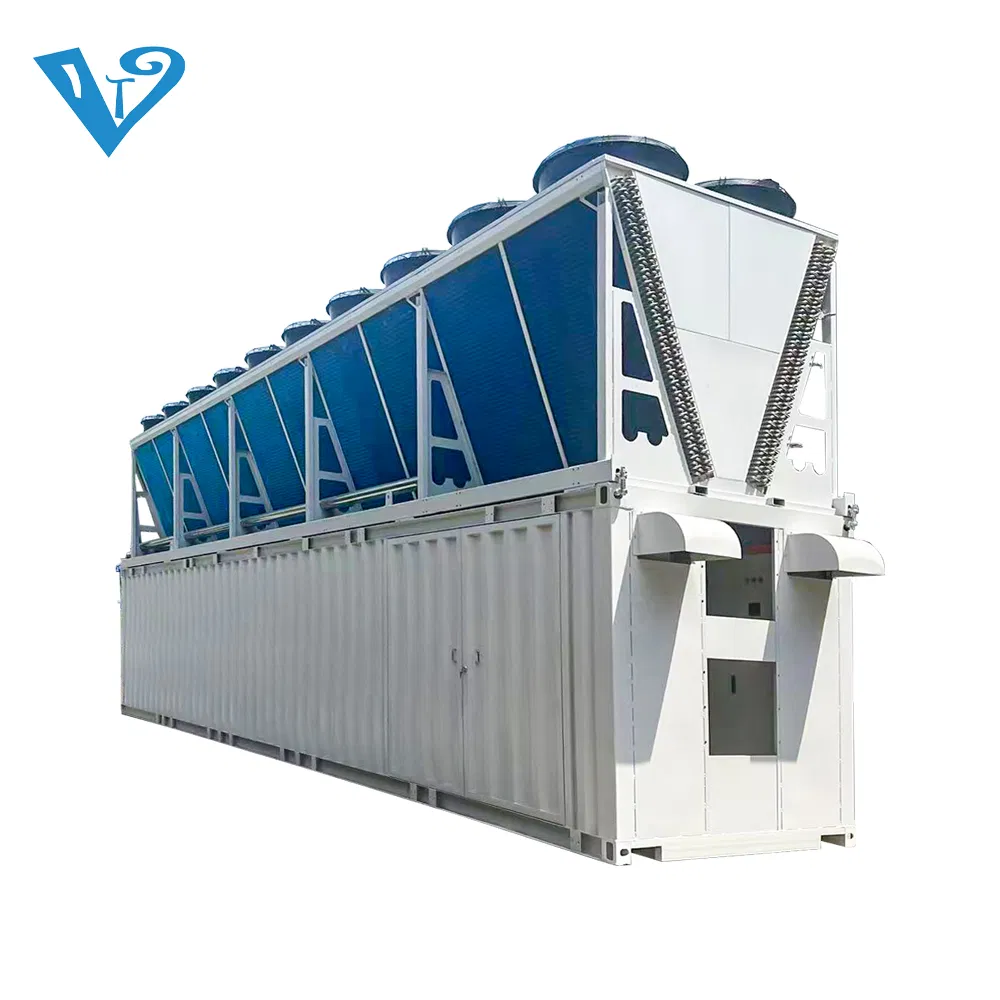

Hydro Cooling Container Specifications
Dimensions (W x D x H)6058mm x 2438mm x 2896mm
Gross WeightApproximately 6.5 tons
Miner Capacity126pcs 2U
Power Rating1000 kW
Heat Dissipation OptionsDry-cooler / Cooling tower / Hybrid cooling system / Heat recovery system
Max Oil Temp (ºC)In 50ºC, Out 60ºC
Monitoring ContentIndustrial PC, Web/APP Monitoring, Pressure sensor, Smoke alarm, Smart PDU, Power Meter
System Components & Visuals

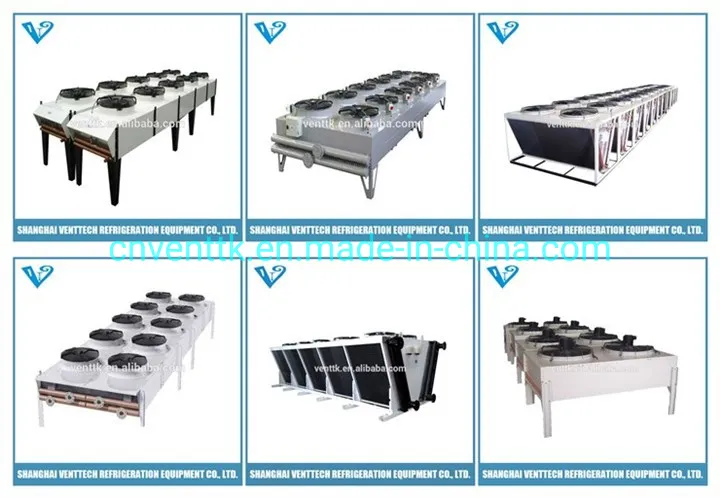

Immersion Mining Cooling Dry Cooler Features
  • 1
    High Efficiency Heat Exchanger: Capacity designs for maximizing heat transfer relative to energy consumption. Features low pressure drop design in the coil (max 100KPa).
  • 2
    Advanced Fan Systems: Only low specific energy consumption fans are used. Protection class IP 54 and insulation class F. Reliable operation and long-lasting performance.
  • 3
    Durable Build: Rigid enclosure with hard gloss powder coated finish. Designed for outdoor installation and 100% leakage tested at 31bar.
Available Custom Options
✓ Multiple and Sub-cooling circuits
✓ Stainless steel or aluminum casing
✓ Coated aluminum or copper fins
✓ Explosion-proof motors
✓ Customized fin spacing
✓ Water, oil, or glycol refrigerant design
D2 Series Technical Parameters
Type (D2-) 148-4x630 166-4x630 228-6x630 276-6x630 343-8x630 392-10x630
Water Capacity (KW)147.99165.85227.85276.53342.73391.99
20% Glycol (KW)142.42161.57219.09270.22333.55383.3
Air Flow (M³/h)7645974341114686108188148675191136
Fan No. x φ4x6304x6306x6306x6308x63010x630
Sound (dB(A)10m)646466666768
Length (mm)218621863250325042505250
Weight (kg)7698111134126115891864
Frequently Asked Questions
Do you provide customized dry cooler designs?
Yes, we specialize in manufacturing outdoor coolers according to your specific drawings or technical samples to meet unique project requirements.
What payment methods are supported?
We accept various payment methods including T/T (Telegraphic Transfer), Western Union, and PayPal for your convenience.
How do you ensure the quality of the cooling containers?
All products come with a one-year warranty from the B/L date. We conduct 100% leakage testing at 31bar and use high-quality components from leading global manufacturers.
What should we do if a specific model isn't listed?
Please send us the descriptions and pictures of the products you need. Our engineering team will review the specifications and check if a custom manufacturing solution is available.
Can we order a single unit for quality testing?
Yes, we understand that quality verification is crucial for large-scale mining operations. We are glad to provide 1 unit for initial quality testing.
What is the typical delivery timeframe?
Depending on the complexity, standard cabinet systems typically take 30 working days, while larger hydro cooling containers require approximately 45 working days for delivery.
