Basic Specifications
Model NO.S-01
SizeCustomized
Column and BeamSteel Structure
Roof and WallSandwich Panel
MaterialSteel Structure
CertificationISO, CE, SGS
Warranty3 Year Guarantee
Transport PackageFlat-Pack
OriginChina
Production Capacity10000m2/Month
Product Description

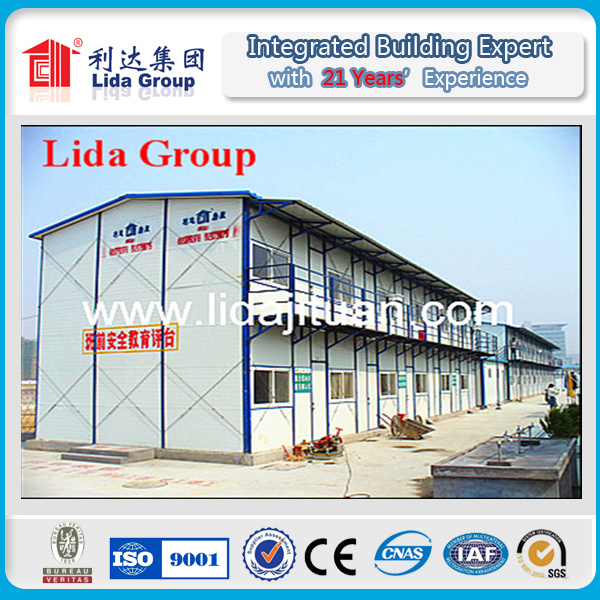

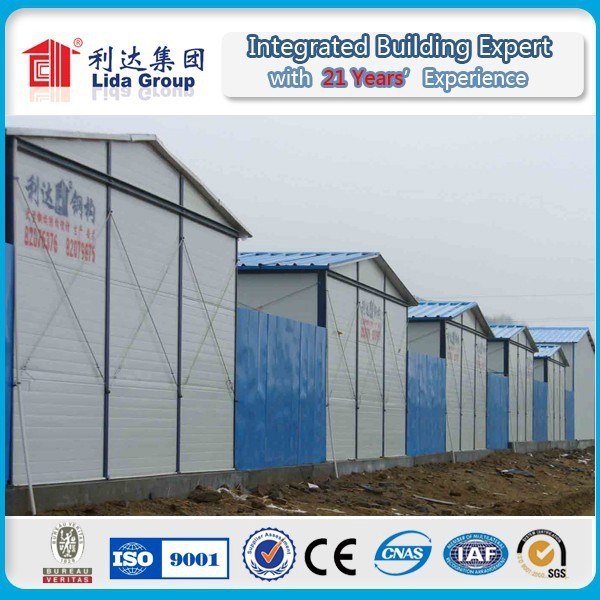

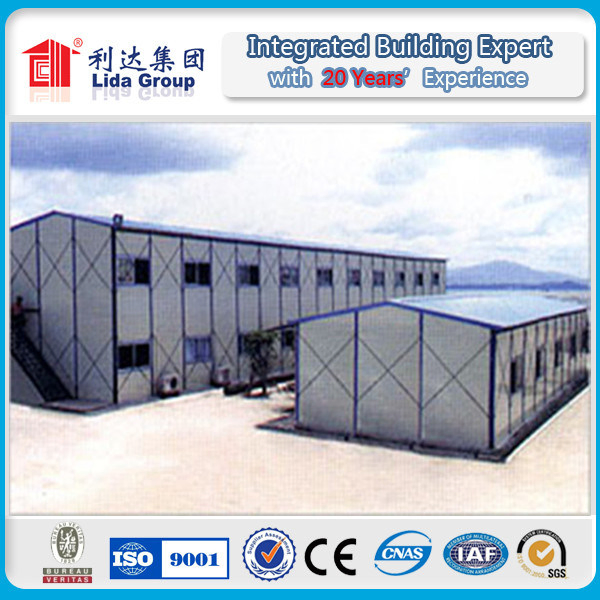

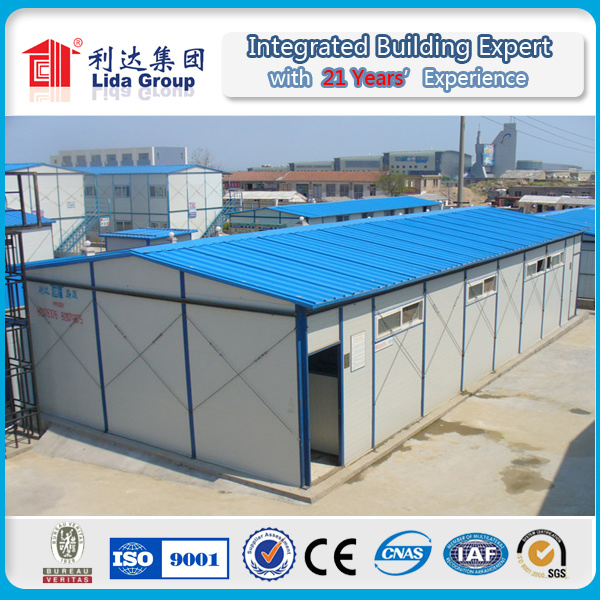

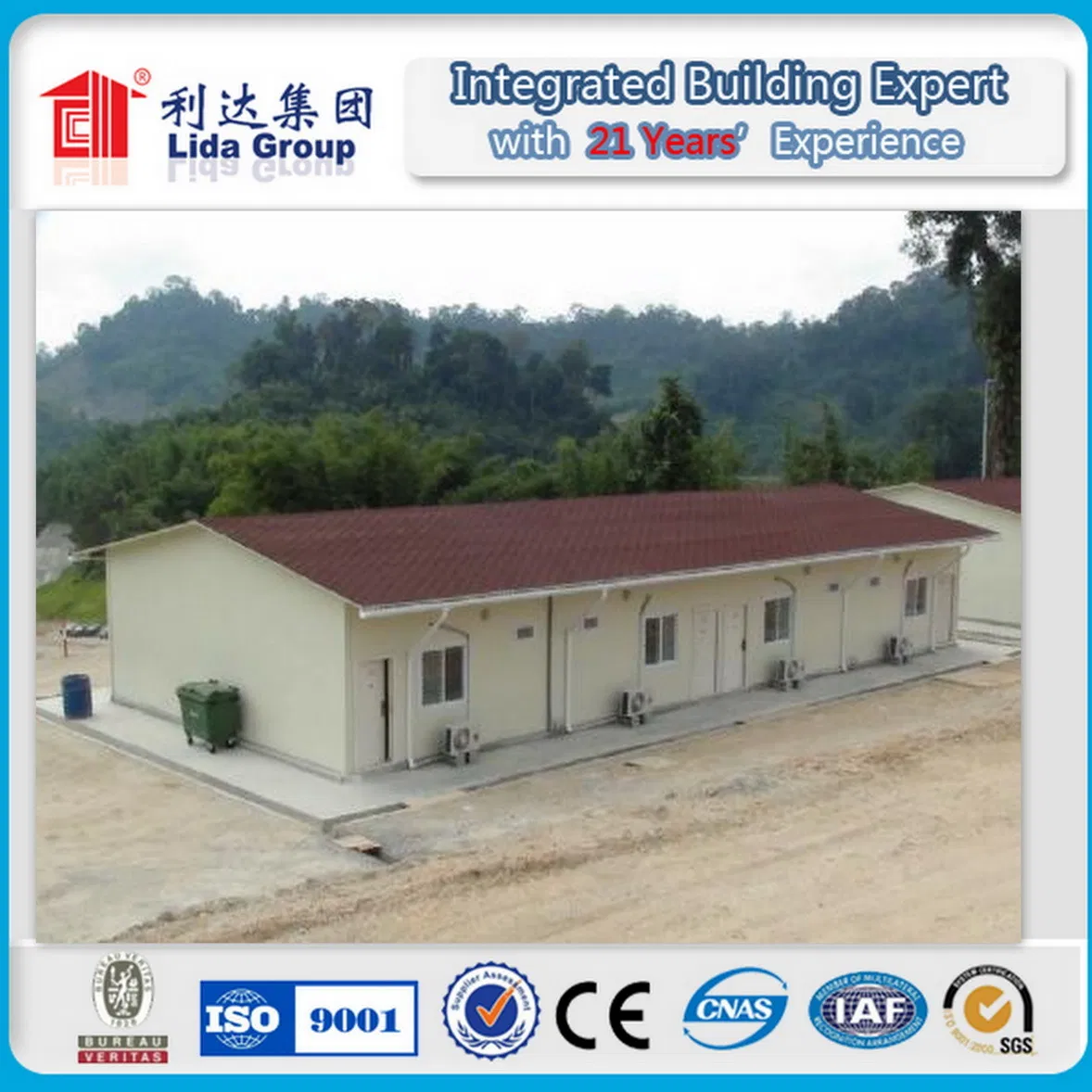

Prefab Steel Camp Construction Solutions
Technical Parameters
- Wind resistance: Grade 11 (wind speed ≤ 120km/h)
- Earthquake resistance: Grade 7
- Live load capacity of roofing: 0.6kn/m2
- External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
- Second Floor Load Capacity: 150 kg/m2
- Live load of corridor: 2.0kn/ m2
- Wall permitted loading: 0.6KN/ m2
- Ceiling Permitted live loading: 0.5 KN/m2
- Wall Coefficient of thermal conductivity: K=0.442W/m2k
- Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
Steel Framework & Components
1. Main Framework: Fabricated by 80*80 to 150*150 Square Tube (Q235 Steel). Surface: Alkyd painting, two primary and two surface layers.
2. Triangle Beam: Fabricated by C80, C100, C120, C140 Section steel (Q235 Steel).
3. Purlins: C80-C140 Section steel, Galvanized finish.
4. Walls: Insulated Steel Sandwich Panels (50-120mm thickness). Options: Polystyrene, Rockwool, or Polyurethane insulation.
5. Flooring: Concrete foundation with ceramic tiles/PVC leather for ground floor; 18mm plywood with PVC for first floor.
| Material List For One Storey Prefabricated House |
| Steel Column |
Q235 Steel Square Tube, alkyd painting finish. |
| Roof Structure |
Q235 Steel C Section steel, alkyd painting finish. |
| Roof/Wall Panel |
Insulated Sandwich Panel (950mm width), 50-120mm thickness. |
| Ceiling |
6mm gypsum board with steel keel. |
| Windows |
PVC window with 4mm glass and fly screen. |
| Electrical |
Honyar brand, solid core BV cable, 16A universal sockets. |
Certifications & Visuals
Frequently Asked Questions
1. What is the wind and earthquake resistance of the prefab camp?
The structure is designed for Grade 11 wind resistance (up to 120km/h) and Grade 7 earthquake resistance, ensuring safety in various environmental conditions.
2. What types of insulation are available for the walls and roof?
We offer three main insulation materials for our sandwich panels: Polystyrene (EPS), Rockwool (120Kg/m3), or Polyurethane (40Kg/m3), with thicknesses ranging from 50mm to 120mm.
3. What certifications do your prefab houses carry?
Our products are fully certified with ISO9001, CE, and SGS approvals, meeting international quality and safety standards.
4. Is the electrical and plumbing system included?
Yes, we provide optional electrical fittings (wires, sockets, switches, distribution boxes) and plumbing systems (PPR pipes, sanitary ware like closets and wash basins) as per your design requirements.
5. What is your monthly production capacity?
We have a large-scale manufacturing capability with a production capacity of approximately 10,000 square meters per month.
6. What is the warranty period for the structure?
We provide a 3-year guarantee on our prefabricated house structures to ensure long-term reliability and customer satisfaction.
