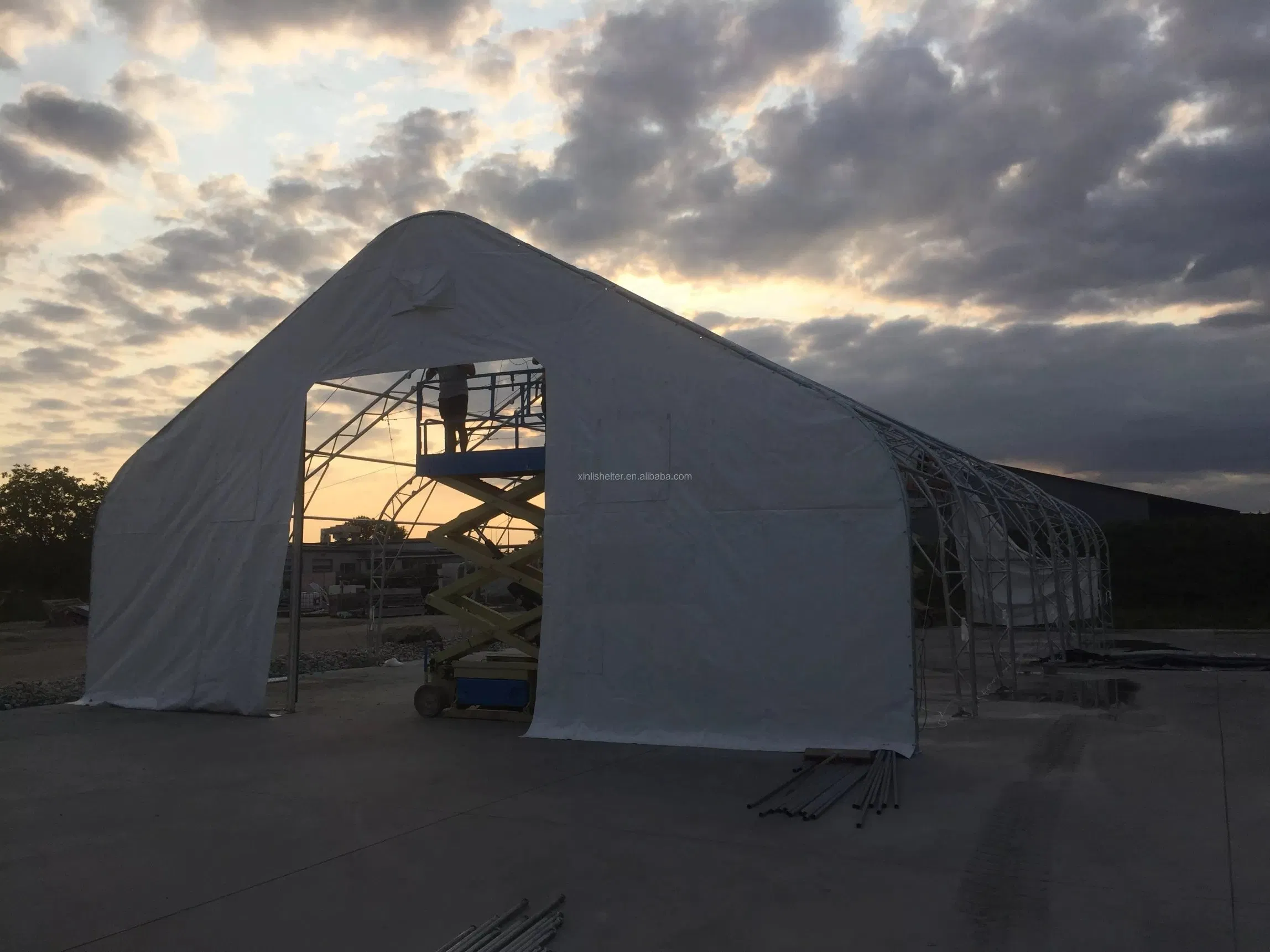

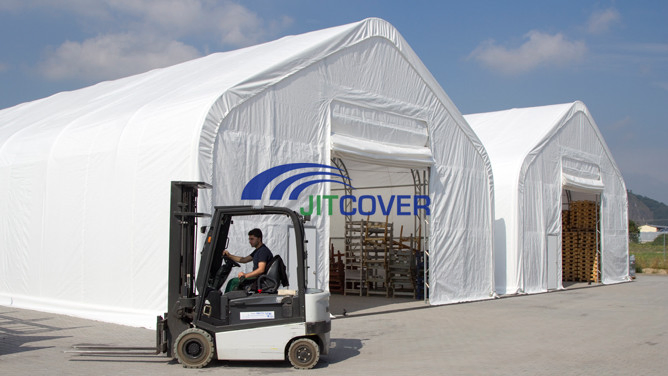

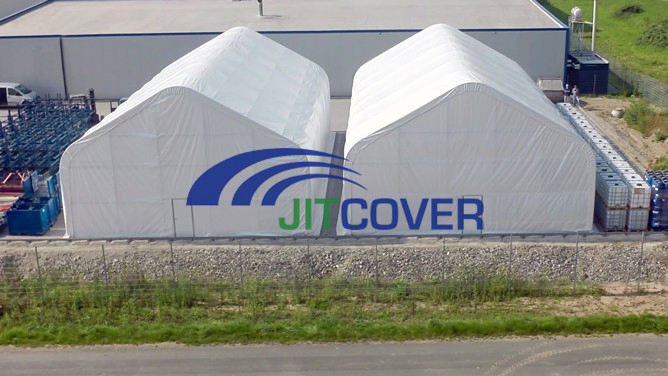

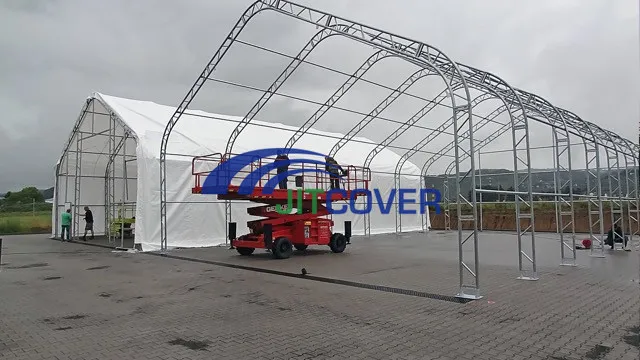

This popular truss style model is a leading solution for industrial shelters. Featuring a generous size and a strong galvanized trussed frame structure, it uses high-quality materials designed for wide commercial applications.
| Technical Parameters | |
|---|---|
| Model | 408021PT |
| Size (LxWxH) | 24.4 x 12.2 x 6.4m (80' x 40' x 21') |
| Frame Material | Hot-dip galvanized steel tube (60x1.5mm) |

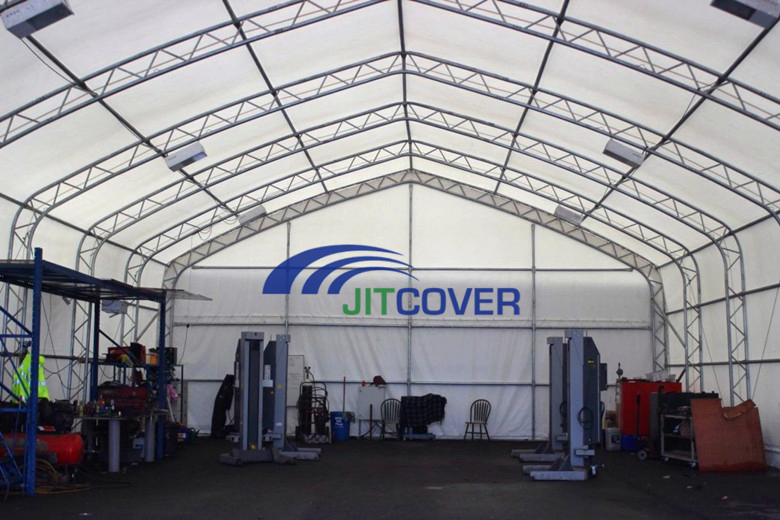

| Frame Structure | Peak style, heavy duty trussed structure |
| Cover Material | 300g PE, 450g to 900g PVC |

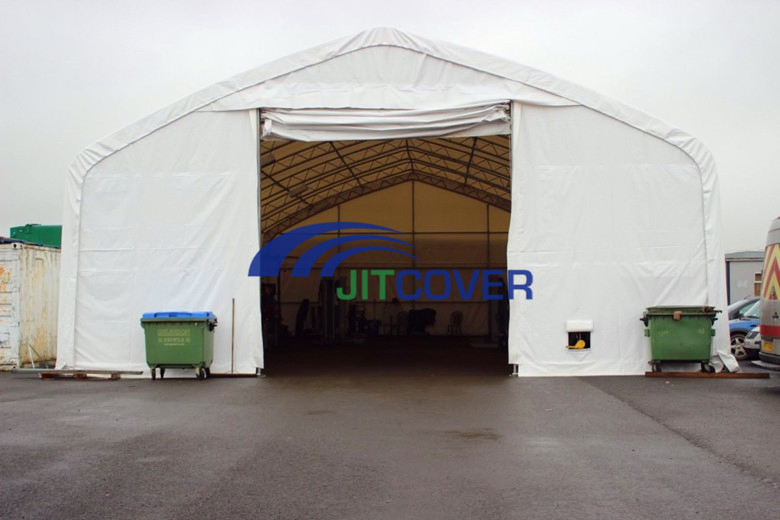

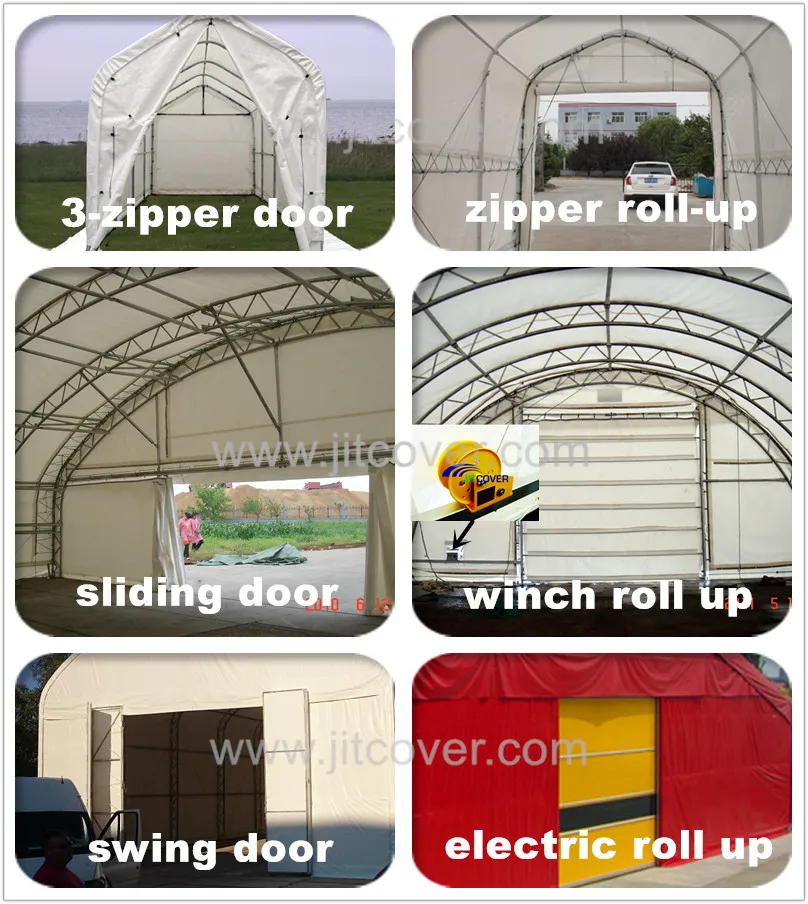

| Door Type | 3-zipper door / Winch Door (W4.6xH5.05m) |
| Warranty | Frame: 8-15 years; PVC Cover: 8-10 years |
| Model | Width | Length | Shoulder Height | Ridge Height | Weight (610g PVC) |
|---|---|---|---|---|---|
| 304015 | 9.15m | 12.0m | 2.9m | 4.5m | 1355kg |
| 306515 | 9.15m | 20.0m | 2.9m | 4.5m | 1900kg |
| 406021 | 12.2m | 18.3m | 4.1m | 6.4m | 2195kg |
| 408021 | 12.2m | 24.4m | 4.1m | 6.4m | 2860kg |
| 5010024 | 15.24m | 30.50m | 4.6m | 7.3m | 4800kg |
| 654926 | 20.0m | 15.0m | 3.8m | 8.0m | 7200kg |

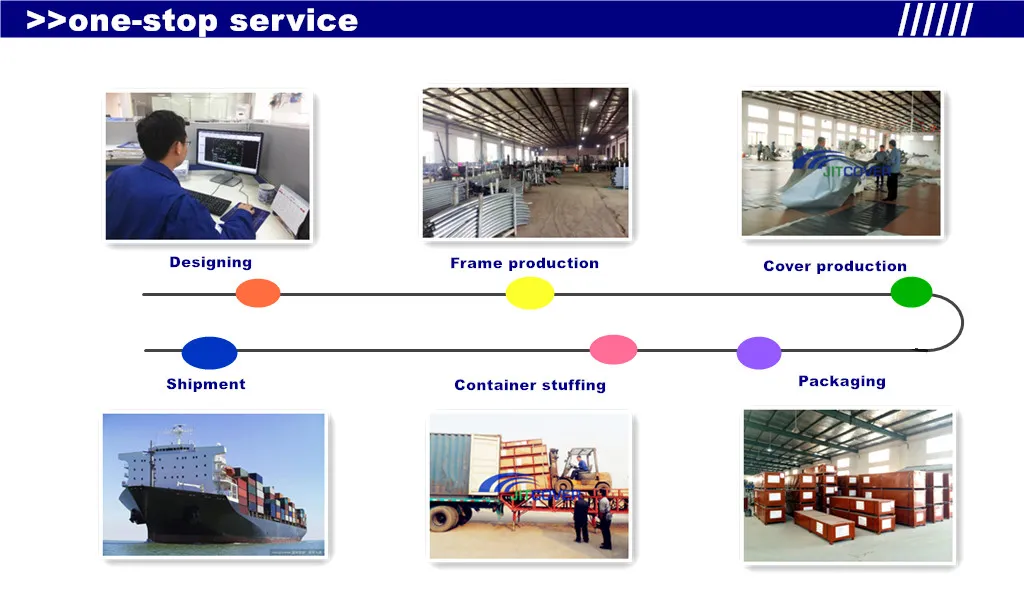

1. Advanced manufacturing with skilled workers and massive material stock.
2. Upscale raw materials including thick hot-galvanized steel and premium PVC fabric.
3. Experienced engineering team providing fast response on custom models.
4. Strict Quality Control System compliant with international standards.
5. Direct factory pricing to ensure maximum cost-effectiveness.
