Are you looking for an affordable prefab labour quarters solution? We are a leader in providing prefab kit houses, Prefabricated Site Offices, Prefab Guest Houses, and construction site canteens. From design to installation, we can provide a one-step solution and service.

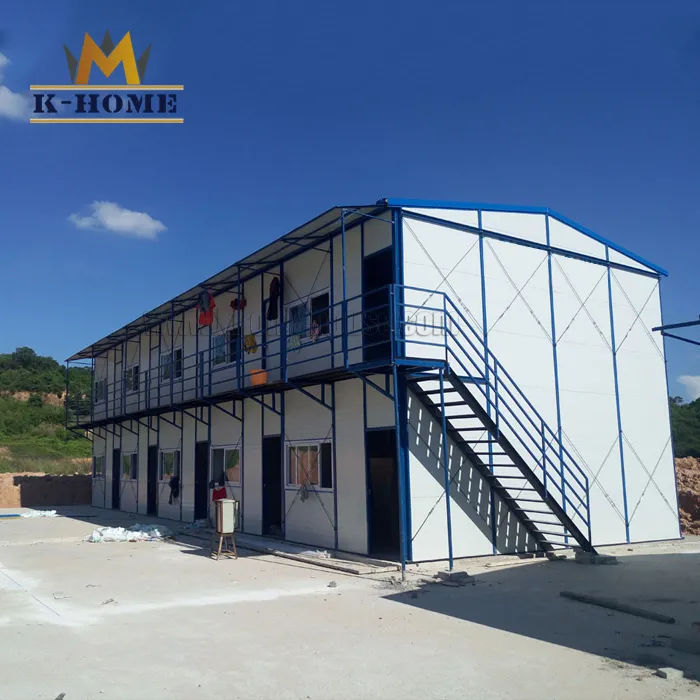

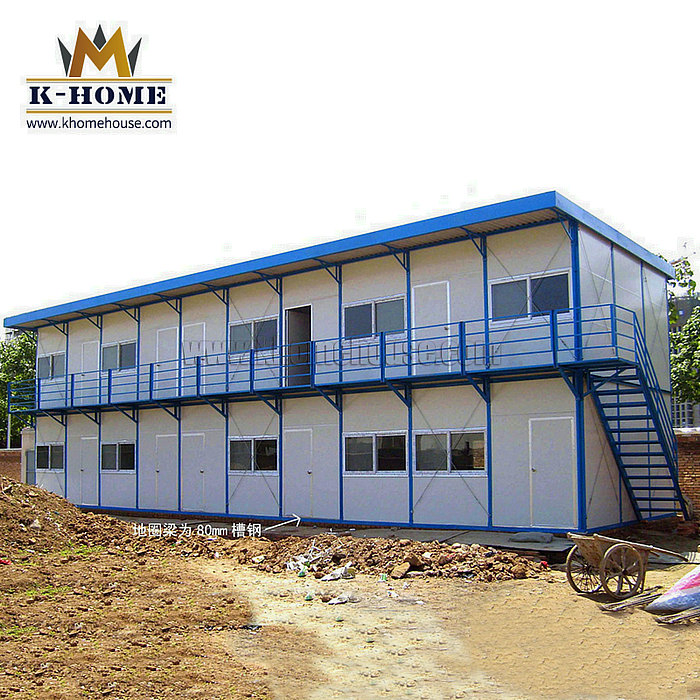

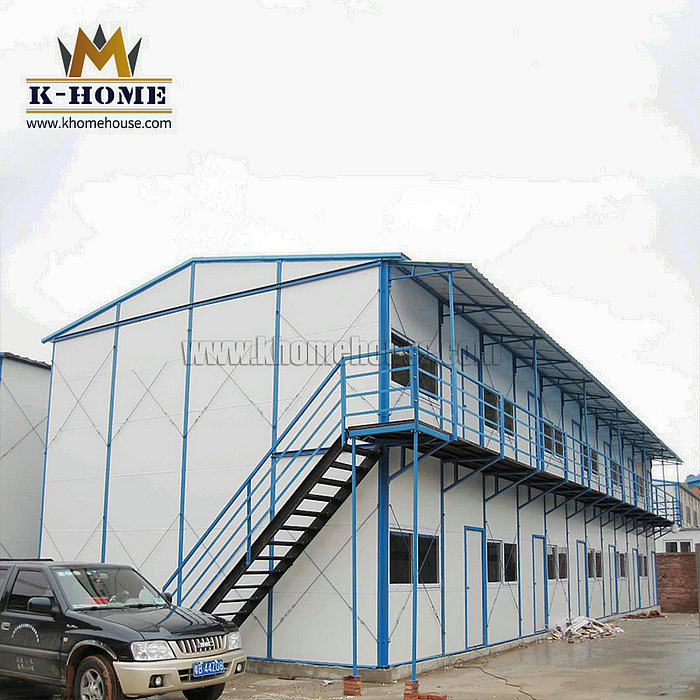

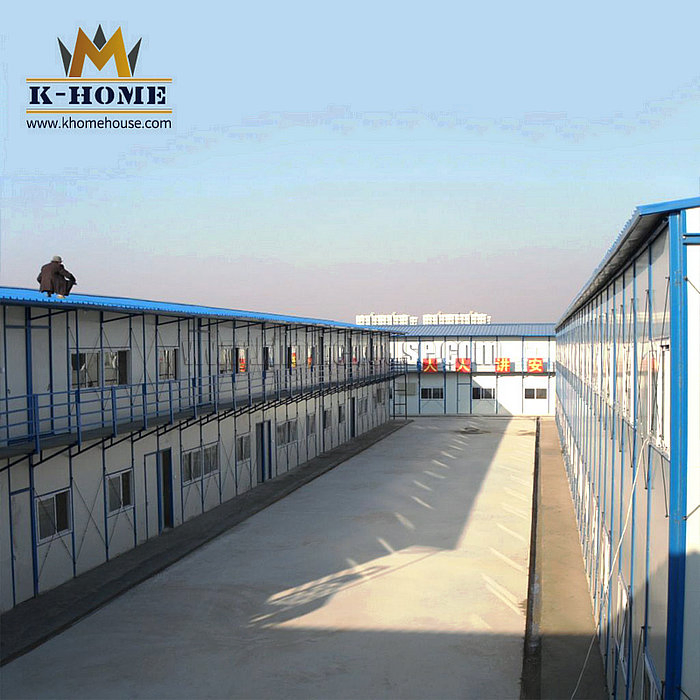

The Prefab Steel Home is a mature product suitable for various positions in different countries. Its main steel structures are galvanized and painted as a second surface, and the wall and roof panels have the best heatproof features. These affordable prefab homes can meet different size and design requirements, such as single slope roofs, double slope roofs, stairs, etc.
Temporary prefab houses have been widely used for different applications. When you need a fast house build in the field, we can meet your various requirements.
Color steel panel material types:
Metal decorate insulation boards are painted with polyester paint (or Fluorocarbon paint), combined with engraved aluminum zinc alloy steel plates, polyurethane insulation, and glass fiber. Surfaces can simulate marble, ceramic tile, cultured stone, or red wood grain for different artistic effects. Real stone paint or sandstone finishes are also popular for wall decoration.
Standard Specification: Length 3800mm, Width 380mm, Thickness 16mm
Thermal conductivity: 0.024W/(m*k)
Apparent Density: 182/m³

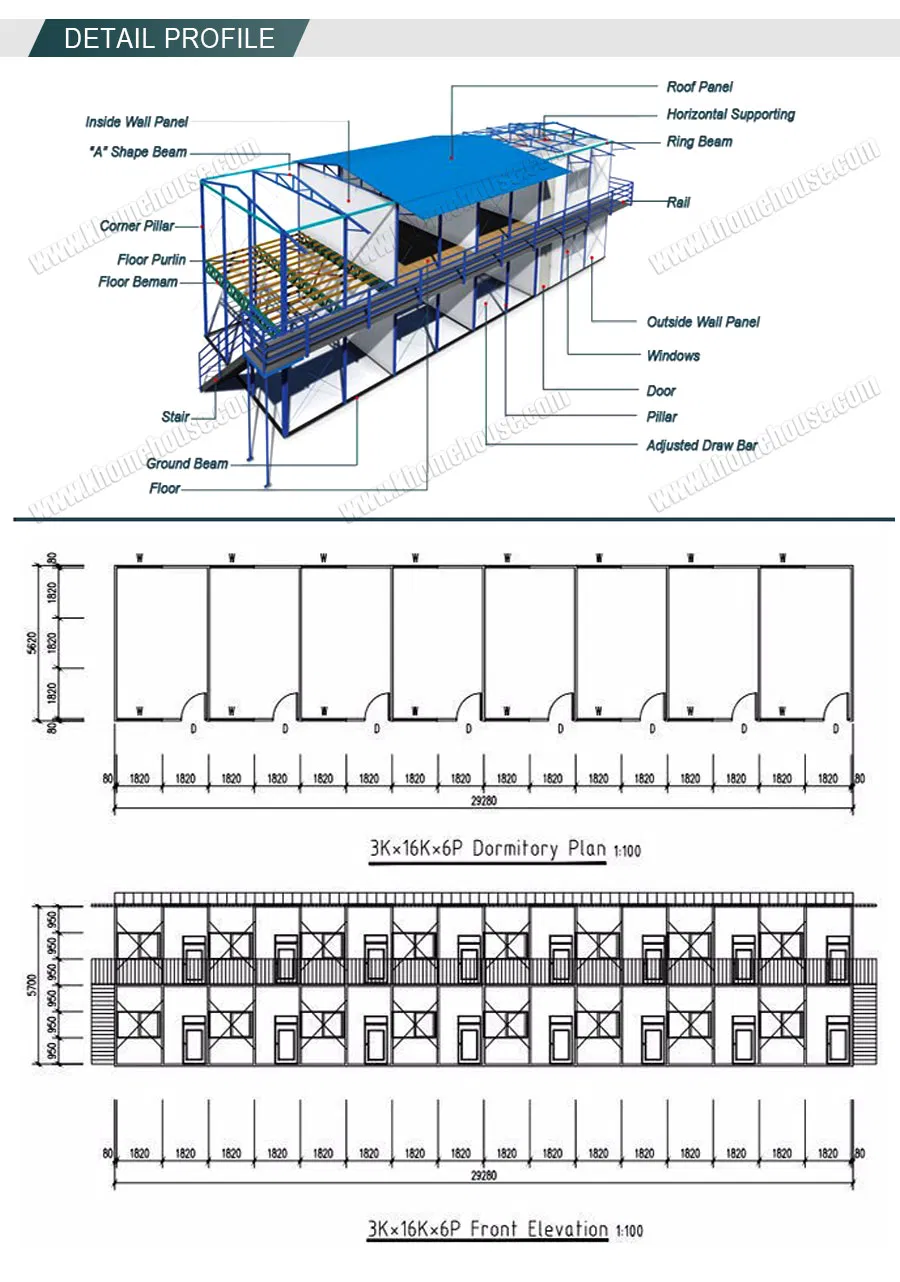

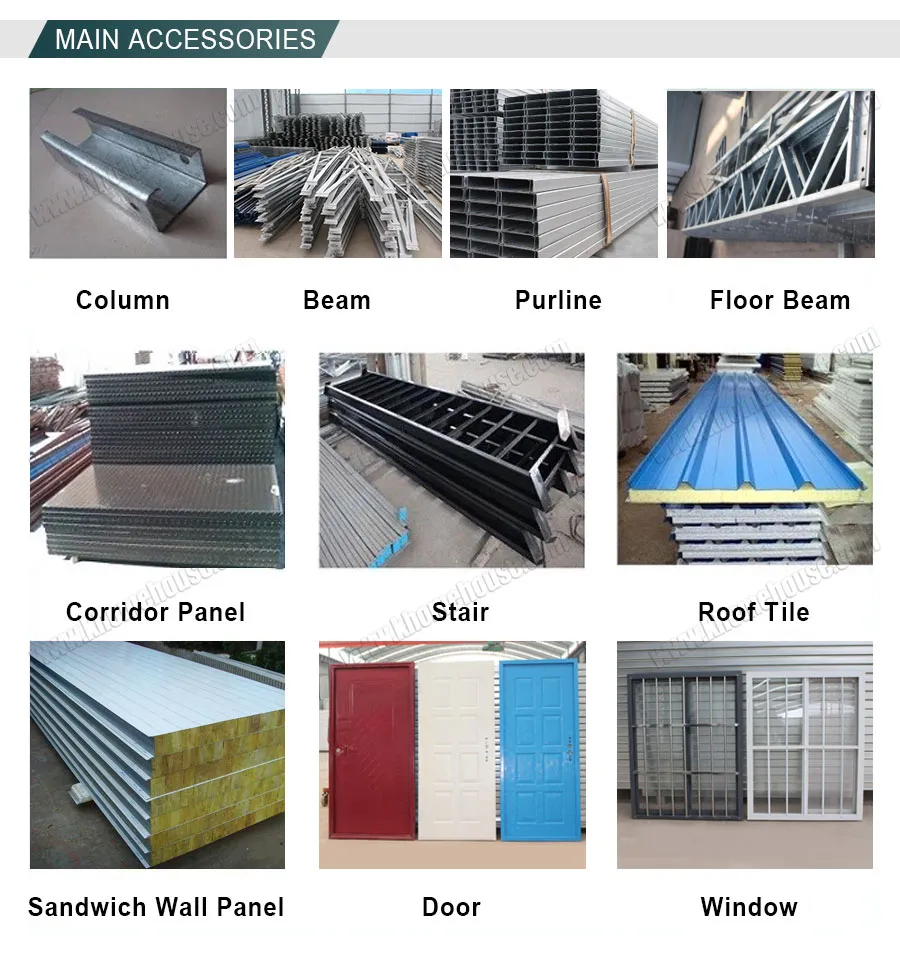

| Category | Component | Specification |
| Steel Structure | Ground Beam | C80*40*15*2.0 |
| Pillar | C80*40*15*2.0 | |
| Periphery Beam | C80*40*15*2.0 | |
| Second Floor Beam | C80*40*15*2.0 | |
| Floor Purlin | Square tube 40*60*1.3 | |
| Roof Beam | C80*40*15*2.0 | |
| Roof Purlin etc | #4 Angle Iron | |
| Floor | Second floor | 15mm plywood board |

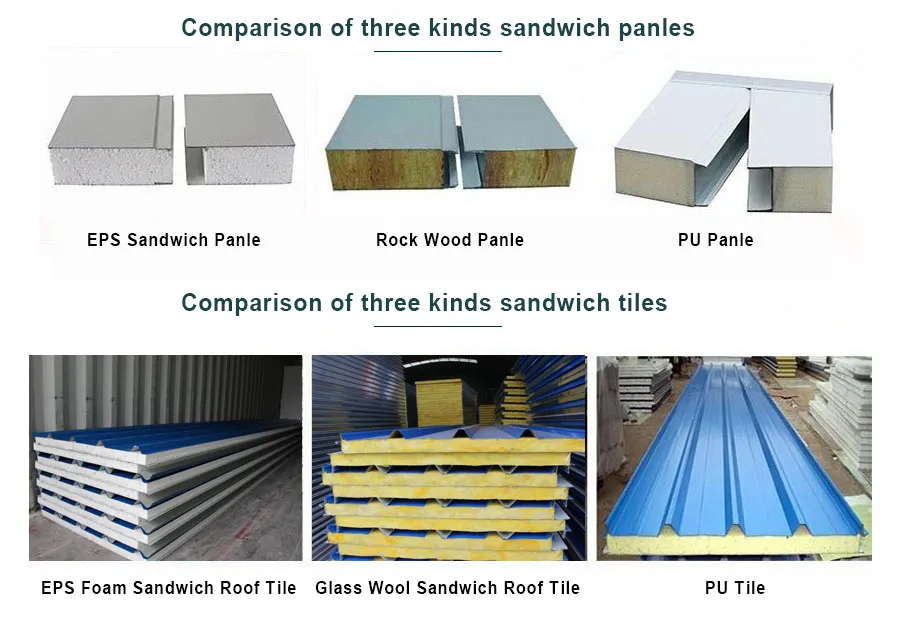

| Roof and Wall | Roof Panel | Corrugated 50/75/100mm Eps/Glass wool Sandwich Panel |
| Wall Panel | 50/75/100mm Eps/Glass wool Sandwich Panel | |
| Door and Window | Door | Panel/Pvc/aluminium |
| Window | Pvc/aluminium 1740*950mm | |
| Accessory | Edge cover/Glue/Screw etc | |
* All materials can be customized as your need for large quantities.
Primary Usages: Office, sale house, classroom, shop, Restaurant & Bar, exhibition hall, hospital, dormitory, mess hall, industrial plant, warehouse, parking lot, simple camp, single slope house, movable sentry box.
