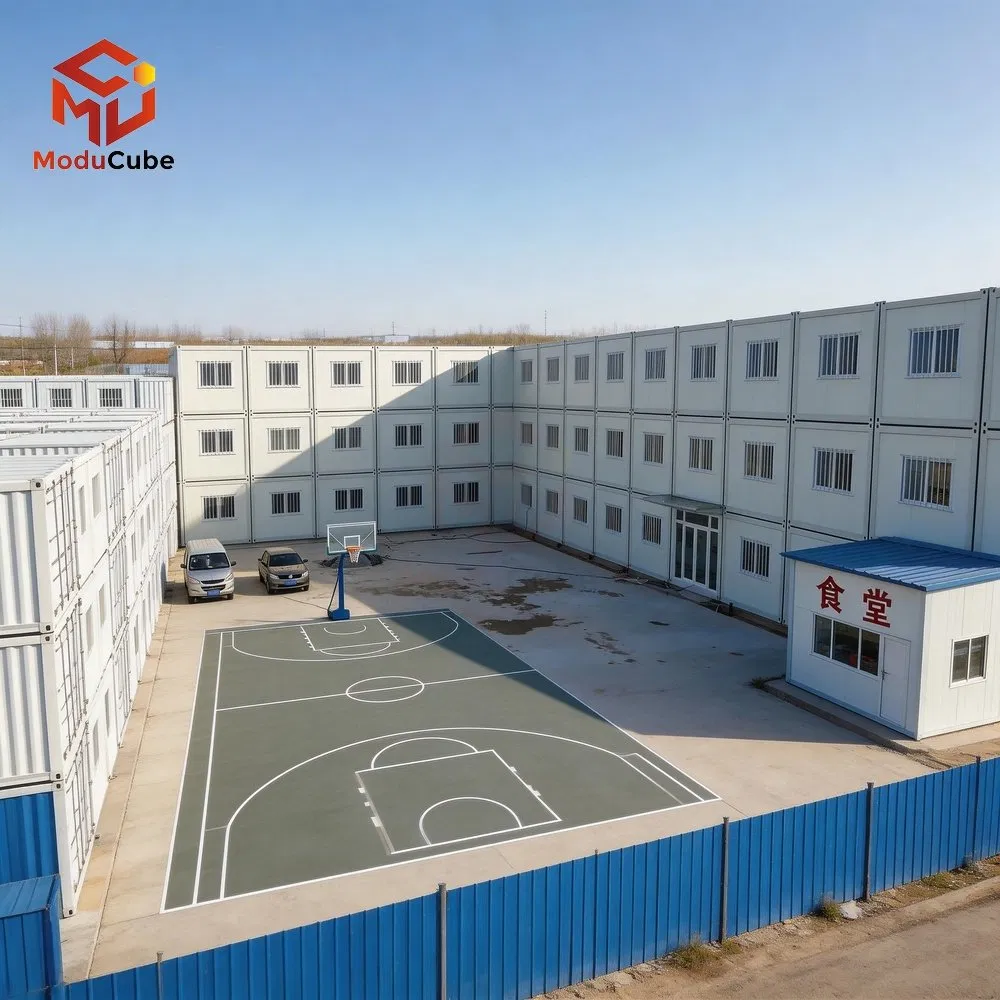

Premium Manufacture Prefabricated Construction Site Jungle Refugee Camp

Customization:	Available
After-sales Service:	2 Years
Application:	Apartment

Basic Information

Model NO.

C29

Installation

Fast Installation

Material

Steel Structure

Warranty

2 Years

Product Type

Container House

Wall Panel

EPS/Rock Wool/PU

Flooring Load

150kg/M²

Roof Load

50kg/M²

Key Features: Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Thermal Insulation, Waterproof, Wind Resistance.

Product Overview

All components are integrated upon factory shipment.

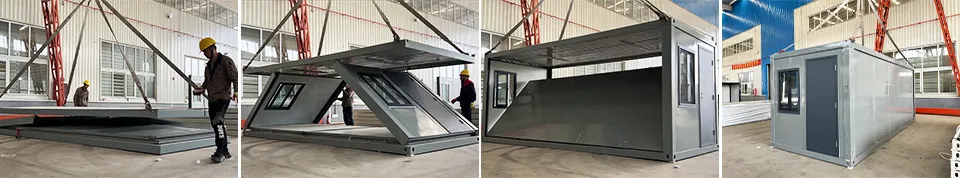

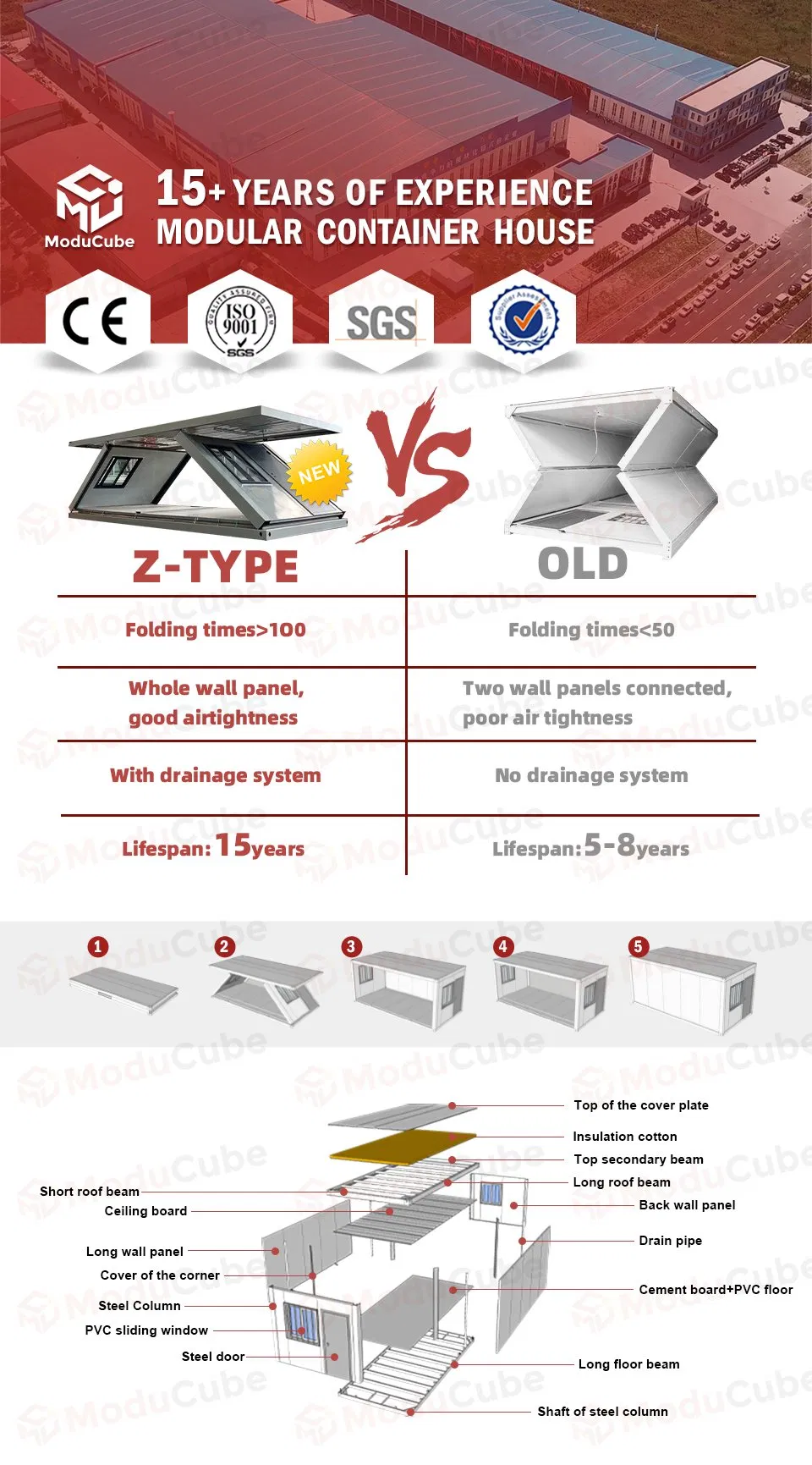

A single Z-type container comes as an integral structure from the factory, encompassing all components such as the top and bottom plates, steel columns, four-sided walls, doors, and windows. The tops of the four corner columns feature bearing pulley assemblies, ensuring that the upright columns and the 3-meter-long wall sections can slide freely as a whole. Installation can be completed by 2 people in 30 minutes, with no material waste.

Specifications

Packing List & Dimensions
External (LWH)	5900mm×2500mm×2470mm

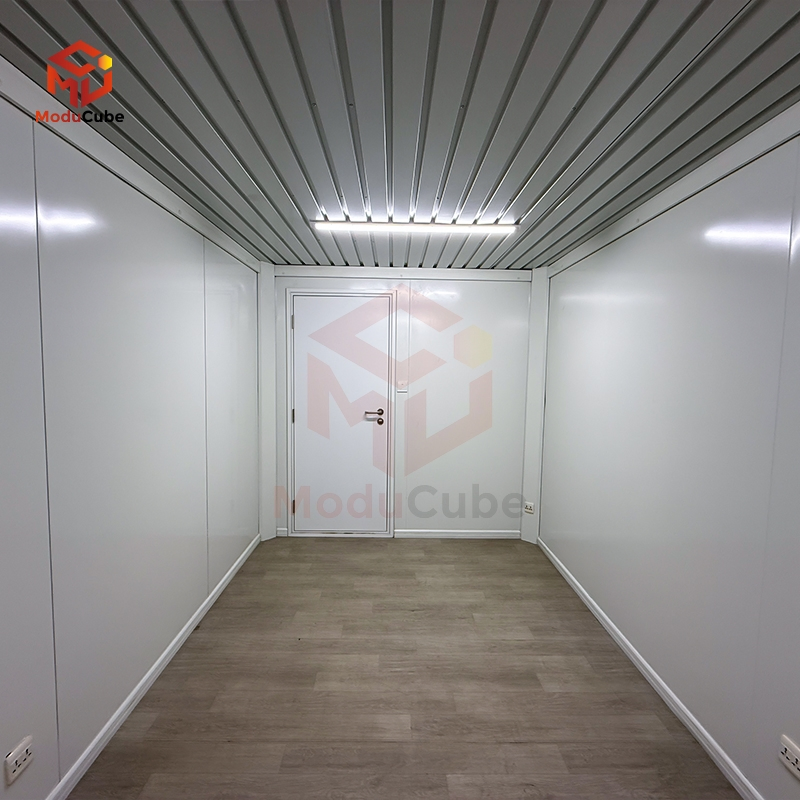

Internal (LWH)	5780mm×2340mm×2280mm
Folded (LWH)	5900mm×2500mm×440mm
Main Profiles	Top Panel (2.5mm), Bottom Panel (2.75mm), Corner Columns (2.5mm)
Wall Panels	0.38mm galvanized color steel plate with Rock Wool core
Roof Insulation	Glass wool felt insulation layer, 75mm thick
Floor	16mm Cement sanded board + 1.6mm floor leather
Electrical	LED strip lights (36W), 10A sockets, 16A AC socket, Distribution box

Our Advantages

Rapid Deployment: Install in just 30 minutes with quick disassembly and assembly.

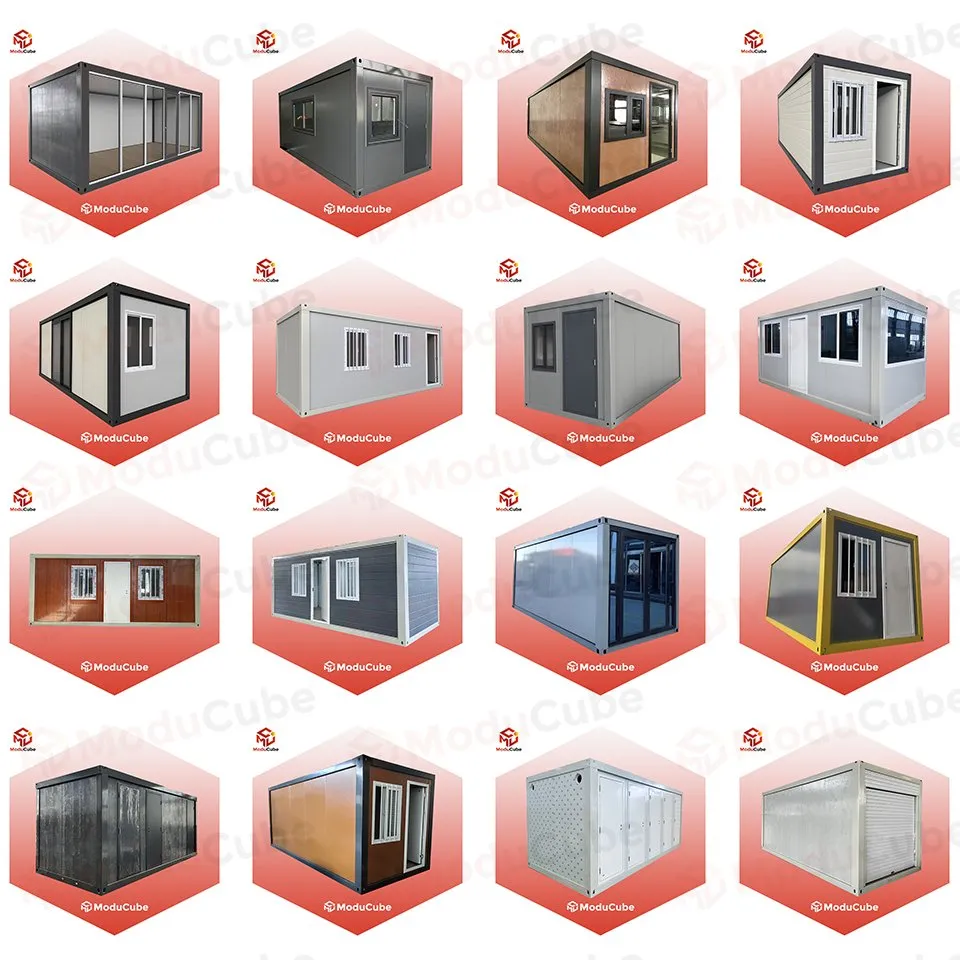

Versatile Applications: Ideal for offices, events, warehouses, shops, hostels, and tea rooms.
Latest Design: Developed and launched with enhanced insulation and sealing properties.
Durability: Engineered for folding thousands of times without structural compromise.
Efficiency: On-site installation speed increased by 80% due to high prefabrication.

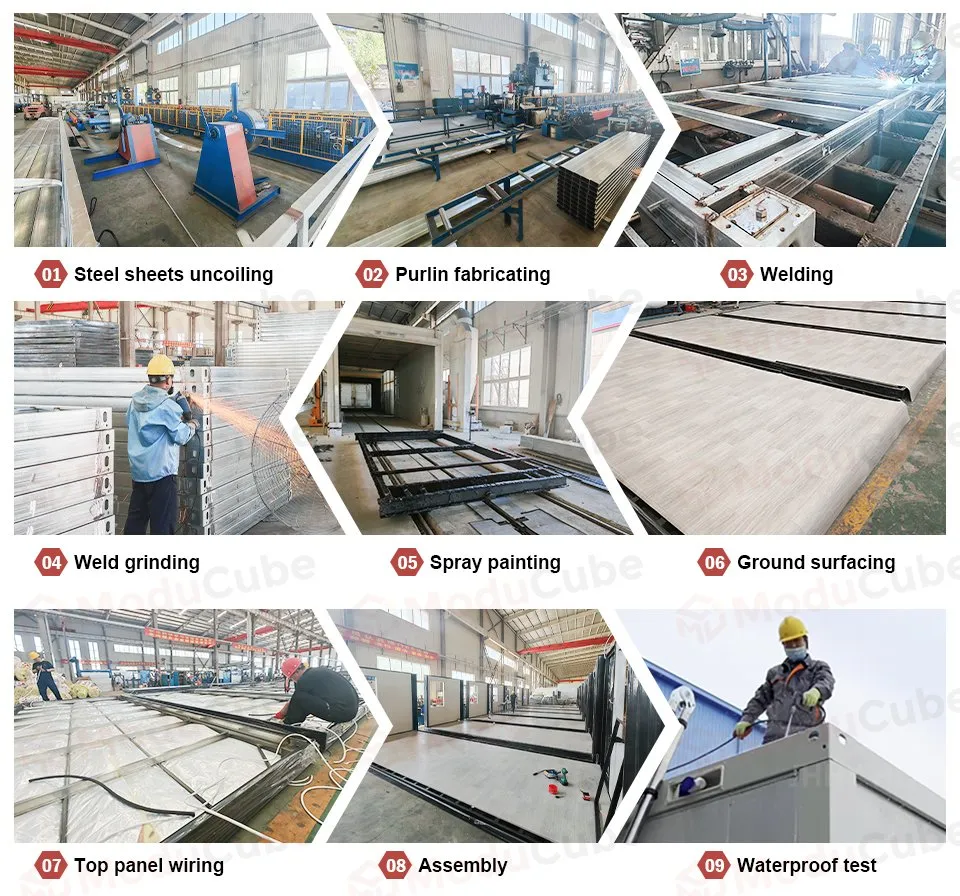

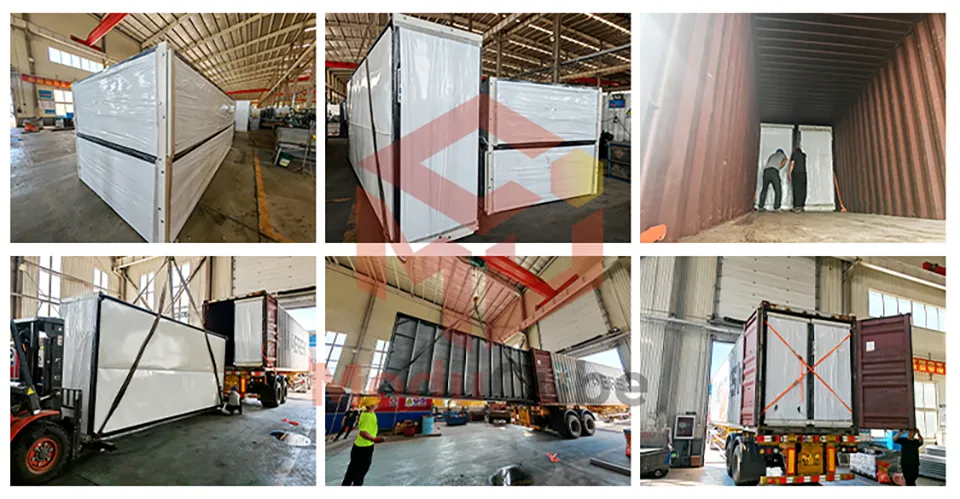

Products Process & Delivery

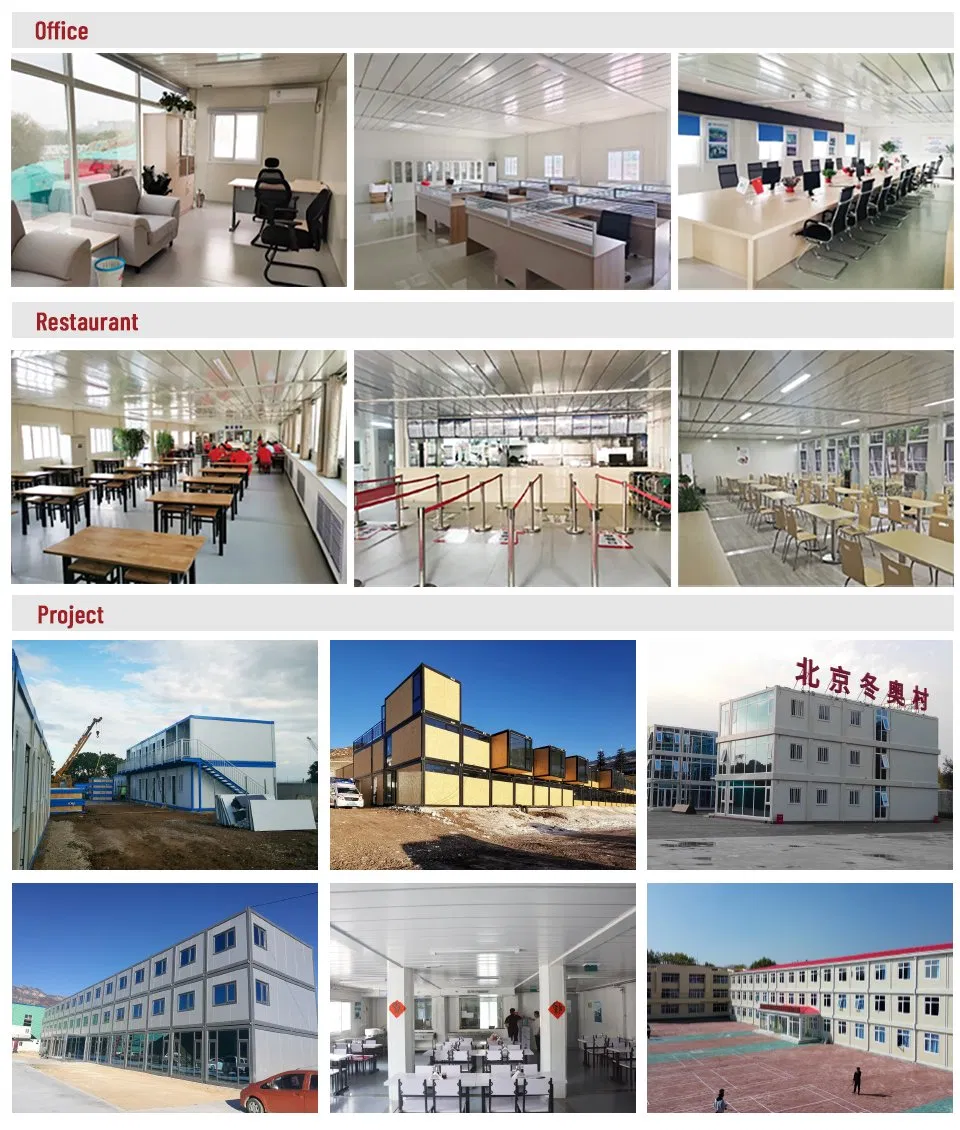

Project Case

Why Choose Us

One-stop solutions for design and customization.
Specializing in container houses for over 15 years.
Over 15 staff in the R&D team & 5 independent production lines.
Rapid 10-day delivery for standard orders.

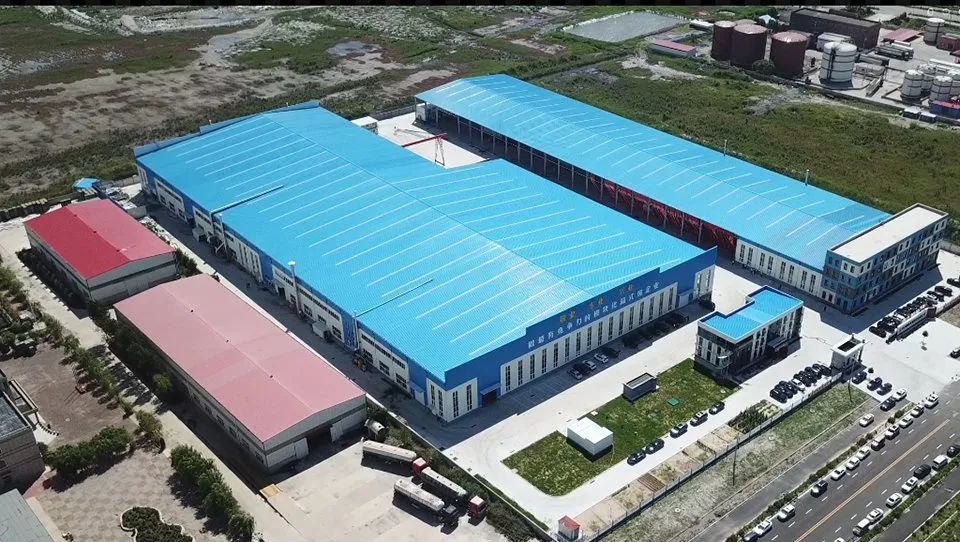

Manufacturing base exceeding 100,000 square meters.
More than 60 national-level technical patents.
Top-tier monthly capacity of up to 1000 units.

Certifications

Frequently Asked Questions

Do you provide on-site installation service?

We provide detailed installation instruction drawings and videos for every project. For large projects, we can provide on-site workers and supervisors upon negotiation.

What's your delivery time?

Normally, delivery time is 7-10 days after the deposit is received. For large orders, the delivery schedule can be negotiated.

How do you control the quality of your product?

We ensure quality through optimized design solutions, selection of qualified raw materials, precise manufacturing techniques, and strict quality inspections.

How do you deal with quality problems?

We offer a 2-year warranty. During this period, we are responsible for all quality issues caused by our production.

What is the expected service life of the container house?

Under conventional climate and environmental conditions, the service life of the container house steel frame is approximately 20 years.

How do the products adapt to different climates?

For strong wind regions, we improve internal structural resistance. For cold regions, we increase wall thickness or use superior insulation. For high corrosion areas, we use specialized resistant materials or coatings.
