140kw Double Side Panel Modular Air Handling Unit

Customization:	Available
Type:	Air Handling Unit
Air Tube Material:	Galvanized Sheet,Glass, Steel, Plastic Duct, etc;

Send Inquiry

Product Description

Basic Specifications

Model NO.

Durability

Ultrahigh Corrosion Resistance

Voltage

380/400 VAC

Noise Level

Ultra Low

Applications

Electronics, Machinery, Hotel

Mounting

Floor Standing

Lifetime

15~20 years

Certification

ISO, CE

Condition

New

Package

Stretch Film + EPE + Wooden

Specification

3000*2300*2250

Capacity

5000 PCS/Year

Product Description

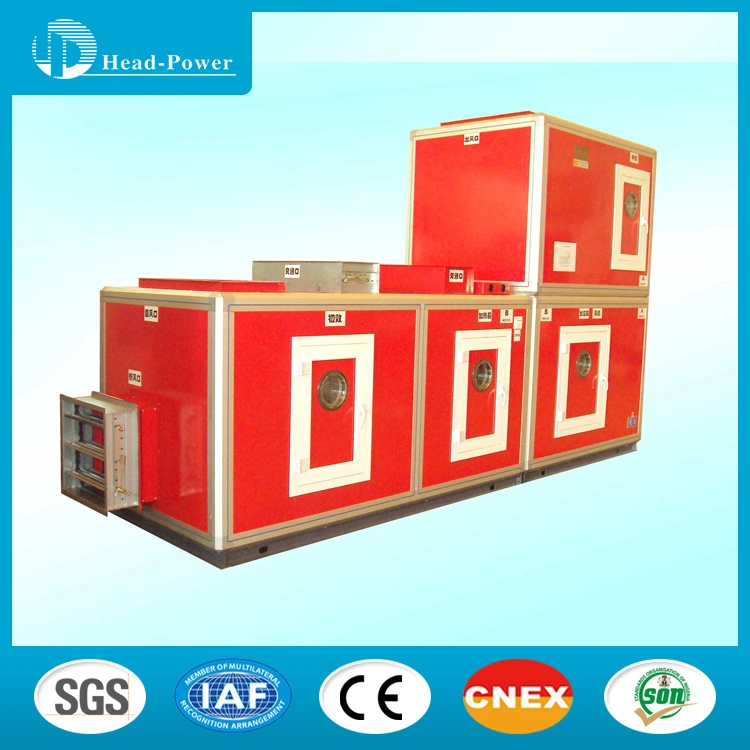

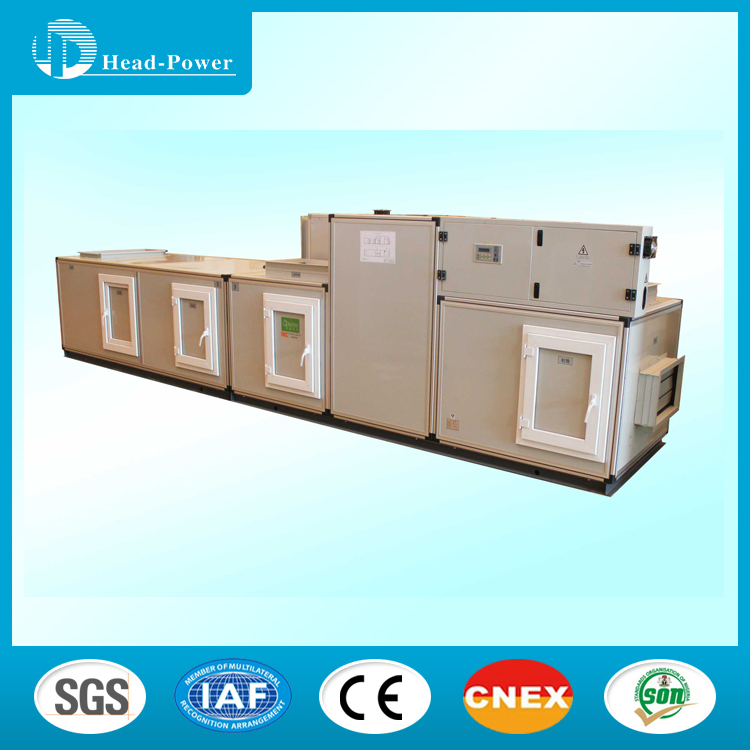

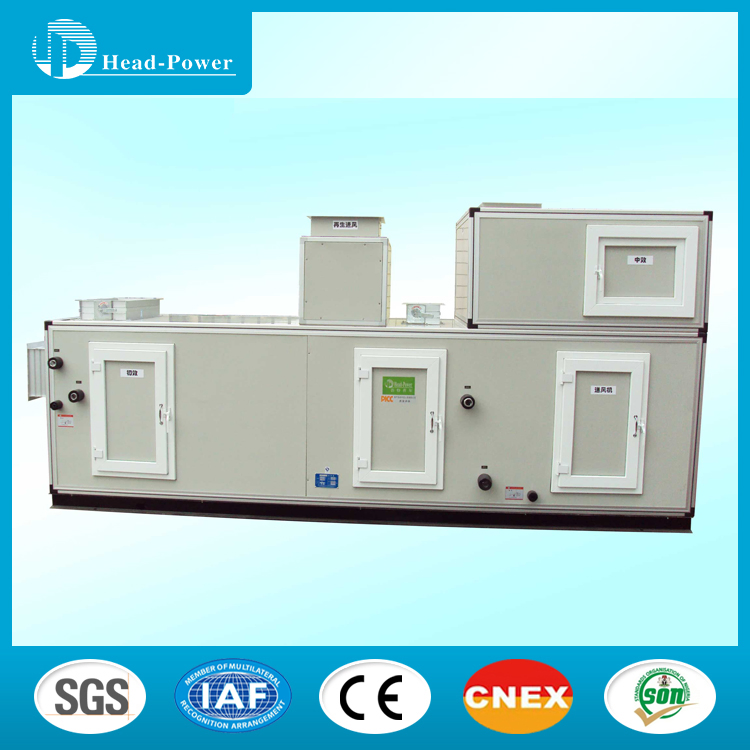

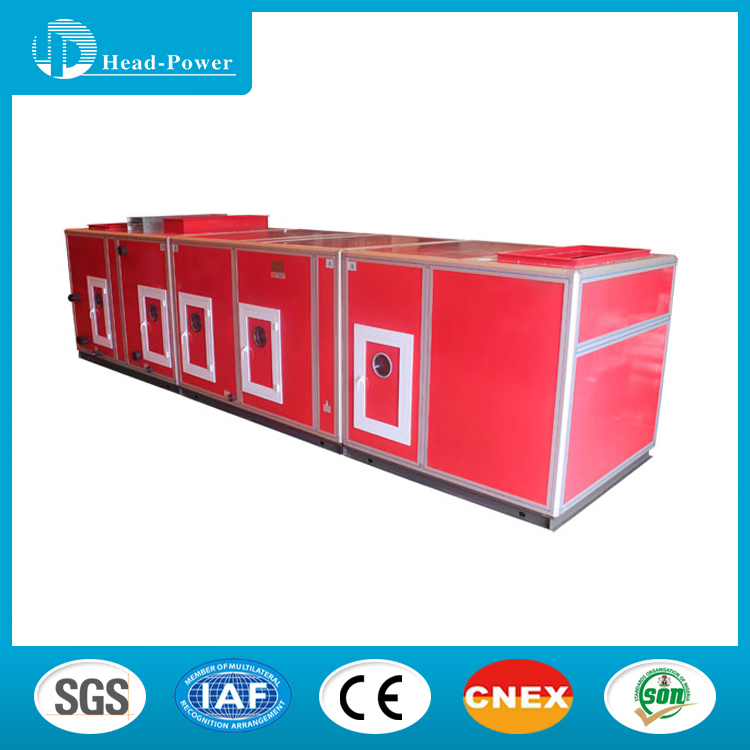

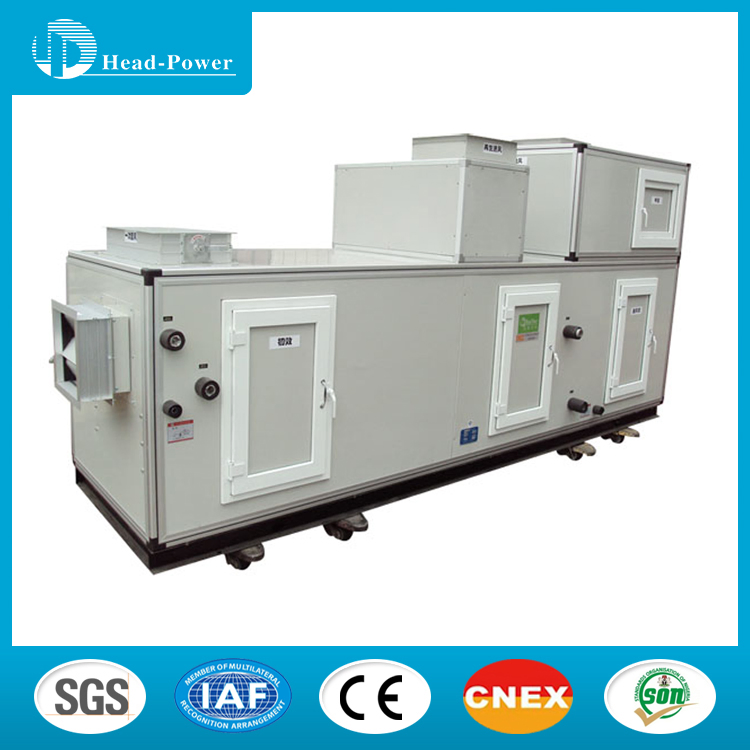

140KW Double side panel modular air handling unit

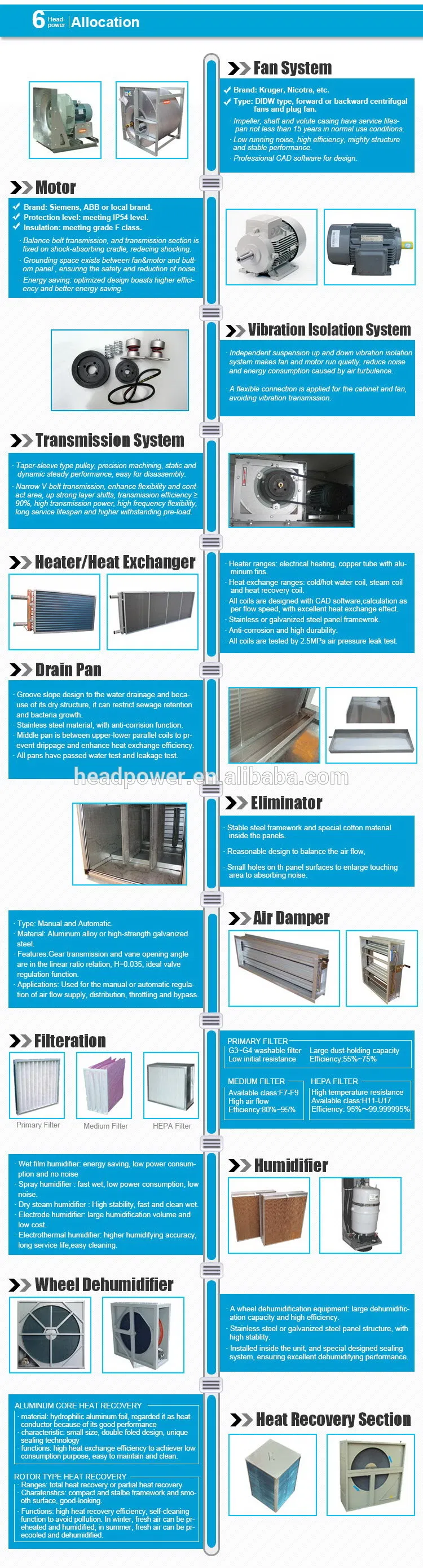

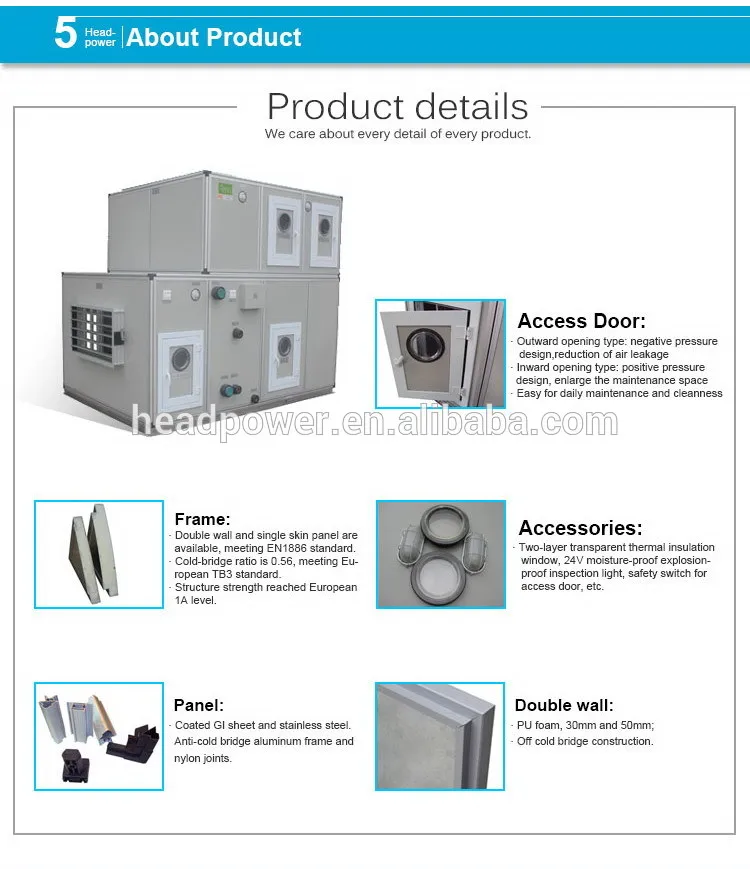

Frame and Panel Aluminium alloy frame, anti cold bridge design; Double skin panel, 30mm and 50mm thick for option, material is color steel, beautiful appearance.

Access Door Outward opening for negative pressure section, inward opening for positive pressure section, reduce air leakage. Access window is optional.

Fan System DIDW backward or forward curved blade centrifugal fan; Impeller, shaft and casing have service lifespan for not less than 15years; low running noise, high efficiency.

Motor & Drive Famous brand good quality motor, insulation class F. Belt drive, high quality V-shaped belt, anti vibration rubber or spring damper.

Heater/Heat Exchanger Available: electric/steam heater, chilled/hot water coils, copper tubes with aluminium fins. Designed with CAD for excellent heat exchange.

Drain Pan Suitable slope design for easy drainage, stainless steel or painted galvanized steel material. Leakage and pressure tested.

Filtration Nylon/metal mesh prefilter, G3~G4 primary filter, F7~F9 bag filter. HEPA or special function filters are optional.

Air Damper Galvanized steel or aluminium alloy material, available in manual or electronic regulation.

Humidifier Options Wet film, high pressure spray, steam, electrode, or electric heating humidifiers available based on requirements.

Wheel Dehumidifier Handles humidity lower than 50% with high efficiency, specially designed for industrial dehumidifying needs.

Heat Recovery Plate type aluminium or wheel heat recovery, high efficiency energy saving for precooling or preheating.

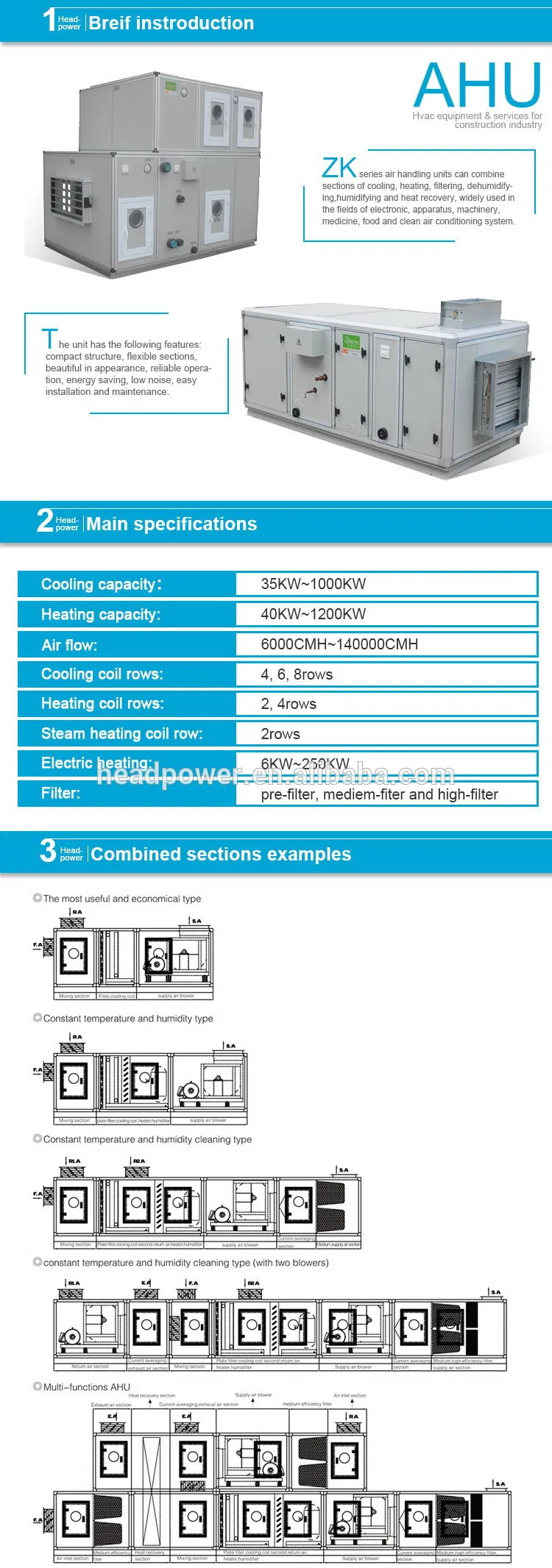

Flexible Combination All sections can be combined flexibly according to specific project requirements.

Applications

Industrial Fields: Electronic factory, pharmaceutical factory, precision instrument factory, petrochemical factory, tobacco factory, cooling for production processes, and more.

Frequently Asked Questions

What is the expected lifespan of this air handling unit?

Under normal operating conditions, the unit and its key components like the impeller and shaft are designed to have a service lifespan of at least 15 to 20 years.

Can the filtration levels be customized?

Yes, we offer multiple filtration stages including G3-G4 primary filters, F7-F9 secondary bag filters, and optional HEPA or special function filters to meet specific air quality standards.

How does the unit prevent air leakage?

The design features outward opening doors for negative pressure sections and inward opening doors for positive pressure sections, effectively utilizing pressure to tighten seals and reduce leakage.

What types of heat recovery systems are available?

We provide both plate-type aluminium heat recovery and wheel heat recovery options, both of which offer high efficiency in energy saving during precooling or preheating.

Is the unit suitable for high-humidity industrial environments?

Yes, the unit can be equipped with a wheel dehumidifier that is specifically designed for industrial applications to maintain humidity levels even below 50%.

What materials are used for the outer panels?

The unit utilizes an aluminium alloy frame with double-skin color steel panels. Insulation thicknesses of 30mm or 50mm are available to ensure thermal efficiency and durability.
