Product Overview
Key Characteristics
✔

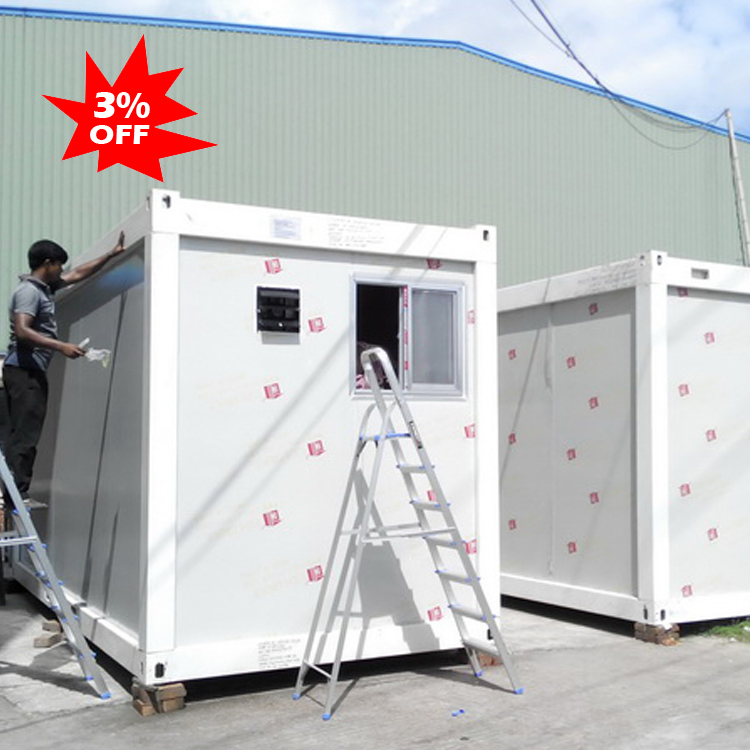

Easy Assembly: Simple to assemble and disassemble multiple times without damage.
✔
Flexible Design: Units can be lifted, fixed, and combined freely to meet specific space requirements.
✔
Durable Protection: High-performance heatproof and waterproof design.
✔
Cost Efficient: Convenient transportation; 4 units can be loaded into a single 20ft standard container.
✔
Long Service: Built for longevity with a lifespan reaching 15-20 years.
Technical Parameters
| Wind Resistance |
Grade 11 (Wind speed ≤ 111.5 km/h) |
| Earthquake Resistance |
Grade 7 |
| Fire Proof Rating |
B2 Grade |
| Live Load of Roofing |
0.5 kn/m2 |
| Floor Live Load |
2.0 kn/m2 |
Material Specifications
Steel Framework:
Material: Light steel structure (Q235). Surface treated with sand blasting, epoxy basic painting (55μm), and final vinyl acrylic painting (55μm). Includes standard container corner fittings and PVC rainwater pipes.
Floor
4mm steel girder, 75mm rock wool insulation, 15mm plywood/cement board, PVC leather or anti-slip aluminum finish.
Ceiling
1.2mm stamping steel plate, 75mm rock wool insulation, 9mm MDF laminated decorative panel.
Walls
75mm thickness sandwich panel (EPS or Rock wool) with 0.5mm galvanized color steel sheets.
Doors & Windows
Aluminum frame sandwich panel door; PVC sliding windows (1130*1000mm) with fly screens.
Main Material Summary
| Item |
Description |
| Structure |
Light steel structure material Q235 |
| Wall Panel |
75mm Sandwich panel with steel plate surface |
| Roof System |
1.2mm steel plate + 75mm rock wool + 9mm MDF |
| Windows |
PVC sliding window |
| Doors |
Aluminum frame with 50mm EPS insulation foam |

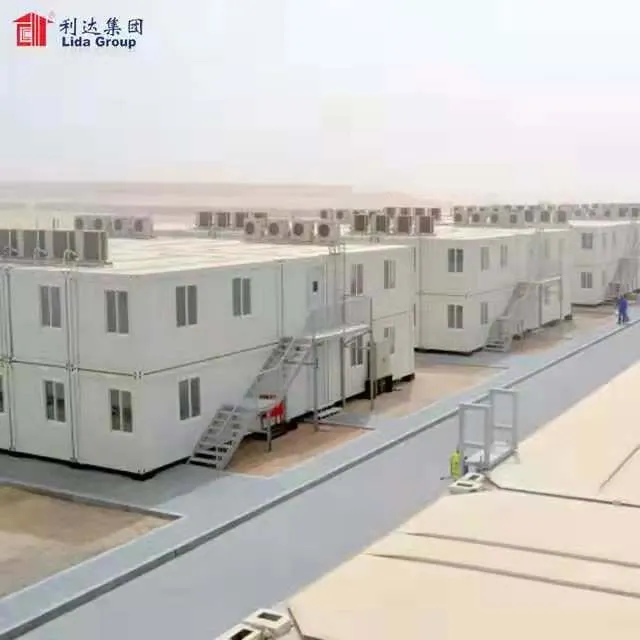

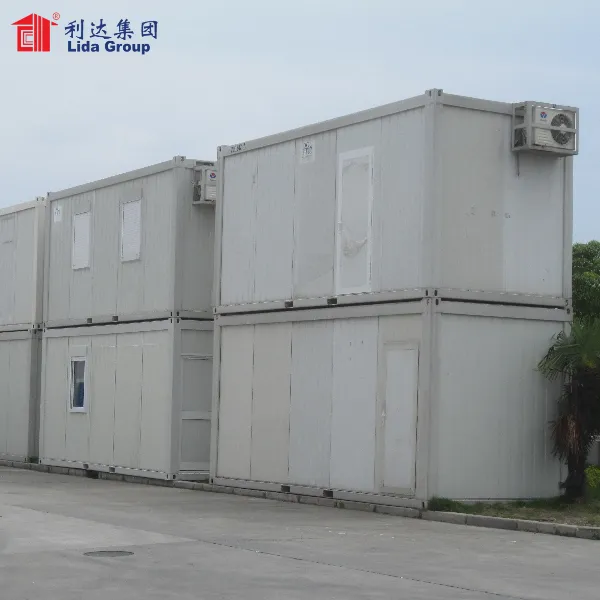

Loading & Transport
Bulk packing in container loading: 1x40HQ container can accommodate 5 units of 20ft container houses.
Frequently Asked Questions
What is the expected service life of these container houses?
The standard service life is more than 20 years, depending on the environment and maintenance.
How well does the structure resist natural elements?
The units are designed with Grade 11 wind resistance (up to 111.5km/h) and Grade 7 earthquake resistance.
Can the container houses be moved after installation?
Yes, one of the primary advantages is that they can be easily assembled, disassembled, and relocated several times without structural damage.
What insulation materials are used for temperature control?
We use 75mm rock wool or EPS in the walls and ceilings to provide excellent thermal insulation and fireproofing (B2 grade).
How many units can be shipped in a single container?
For efficient logistics, 5 units of 20ft container houses can typically be loaded into one 40ft HQ container.
What are the common applications for these modular units?
They are highly versatile and commonly used for temporary or permanent offices, houses, labor camps, schools, and hotels.
