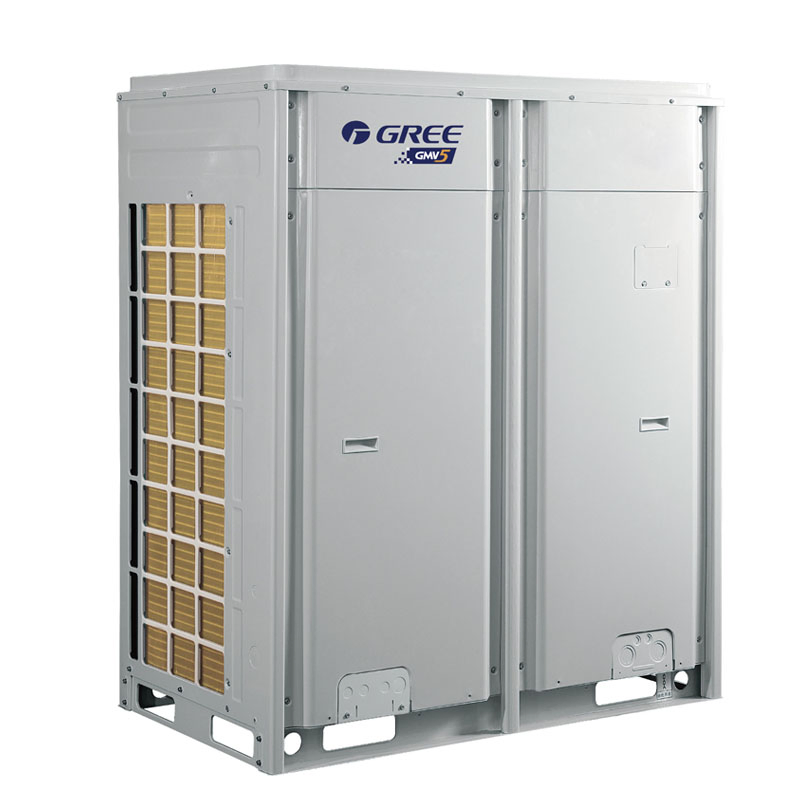

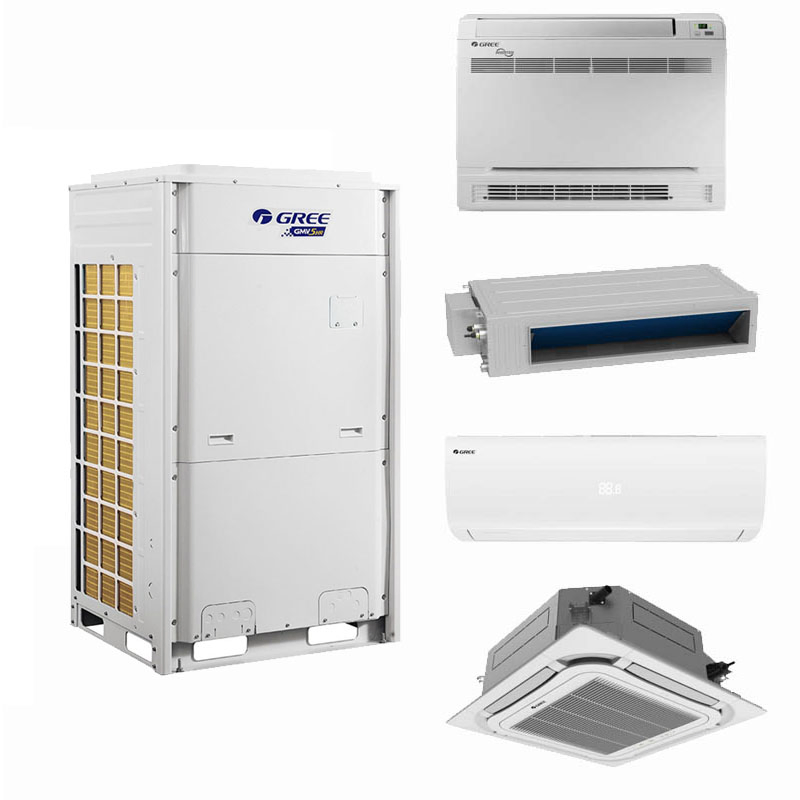

Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
1 / 5
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit
Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit

Gree Gmv5 HVAC Commercial Multi Vrf System Central Air Conditioner Heat Pump Modular Unit

Customization: Available
Type: Central Air Conditioners
Capacity: 6-30ton
Send Inquiry

Product Description

📊 Basic Information
Model NO.
GMC09QB-K3NNB2A
Usage
Room
Noise Level
36-49dB
Certification
CE, CCC, RoHS
Efficiency
Level 1 / Class A+++
Power Source
Electrical (220V)
Warranty
5 Years
Capacity
6-30 Ton
App-Controlled
Yes
Application
Hotel, Commercial, Household
📝 Product Description
The All DC Inverter VRF system adopts a high-efficiency DC inverter compressor and DC inverter fan motor. The units can be combined modularly from 6 Ton to 30 Ton, with a maximum capacity reaching up to 360 kBtu/h.
  • Outdoor unit quiet mode for noise-sensitive environments.
  • High energy efficiency powered by a high-performance compressor.
  • Long connection pipe design with a maximum length of 3280 3/4 feet.
  • Auto switch of module status every 8 hours to significantly improve reliability.
  • 4 levels of static pressure options with a maximum of 0.33 In.W.G.
⚙️ Product Parameters
Model GMV-224 WM/B-F GMV-280 WM/B-F GMV-335 WM/B-F GMV-400 WM/B-F GMV-450 WM/B-F GMV-504 WM/B-F GMV-560 WM/B-F GMV-615 WM/B-F
Capacity Cooling (kW) 22.4 28 33.5 40 45 50.4 56 61.5
Heating (kW) 25 31.5 37.5 45 50 56 63 69
EER (kW/kW) 4.31 4 3.98 3.76 3.56 3.38 2.97 2.75
COP (kW/kW) 4.55 4.32 4.17 4.05 3.85 3.84 3.6 3.16
Power Supply 208/230V-3Ph-60Hz
Sound Pressure dB(A) 60 61 63 63 63 65 66 66
Net Weight (kg) 225 225 285 360 360 400 400 400
🖼️ Detailed Photos

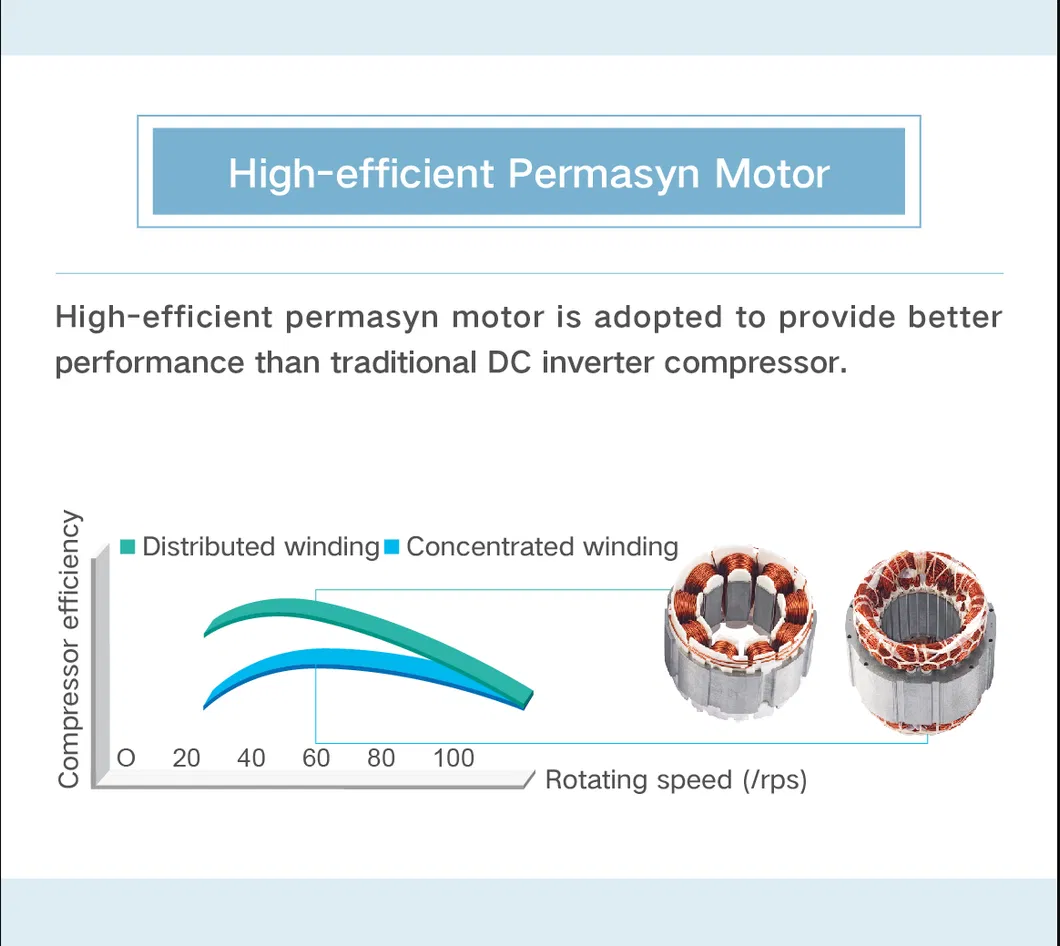

Multi Vrf System Detail 1

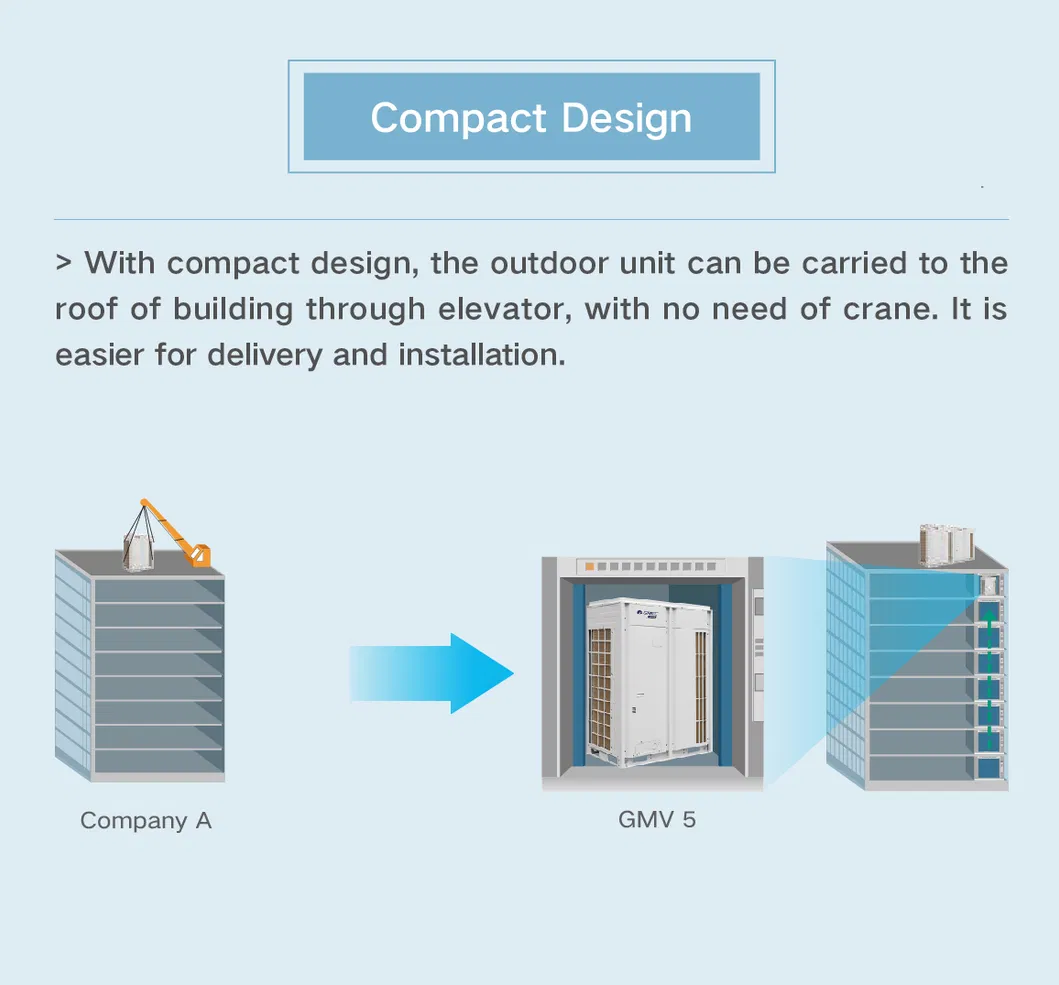

Multi Vrf System Detail 2

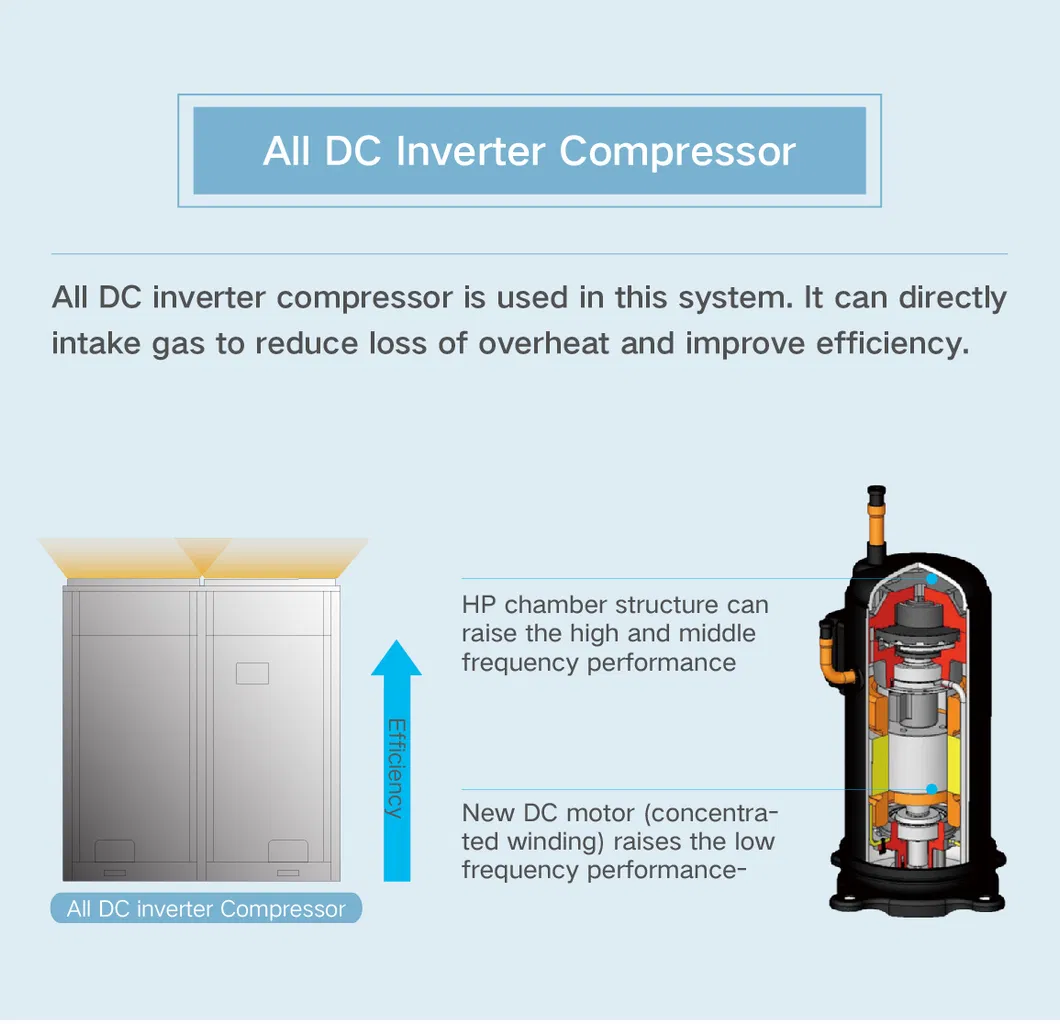

Multi Vrf System Detail 3

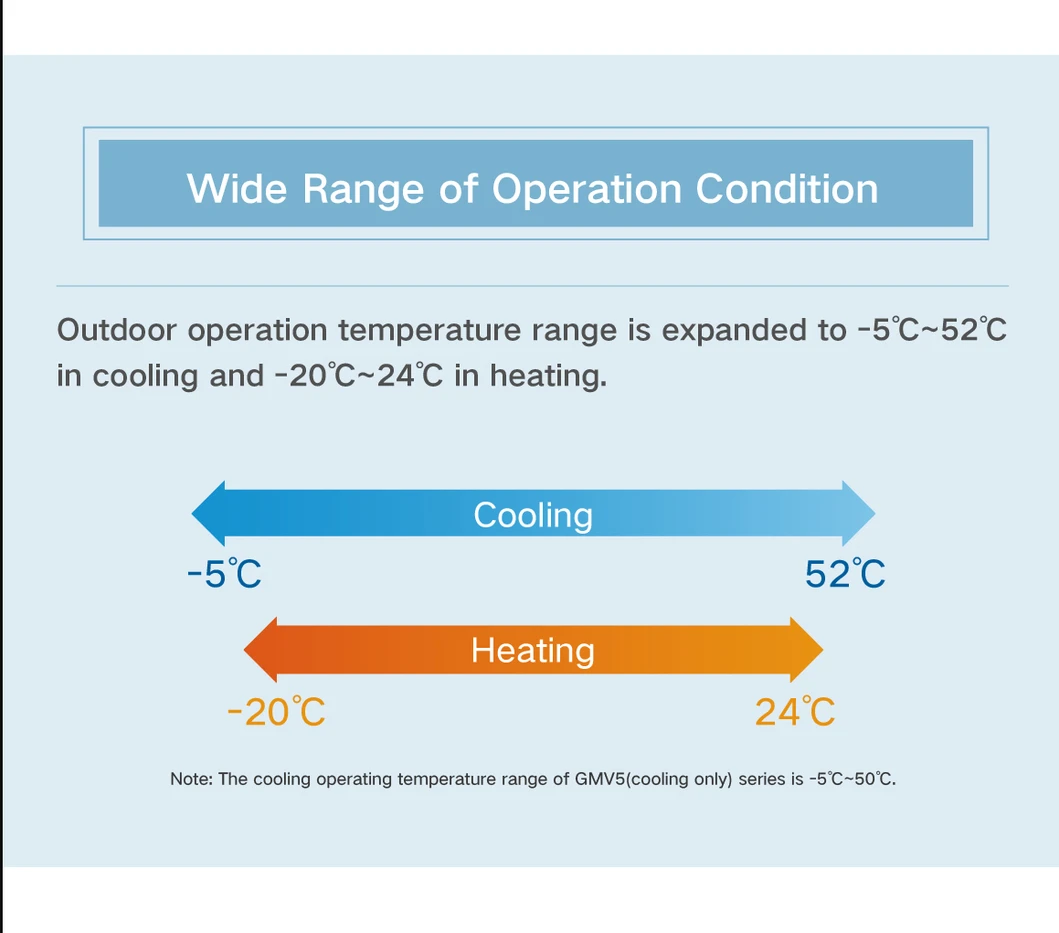

Multi Vrf System Detail 4

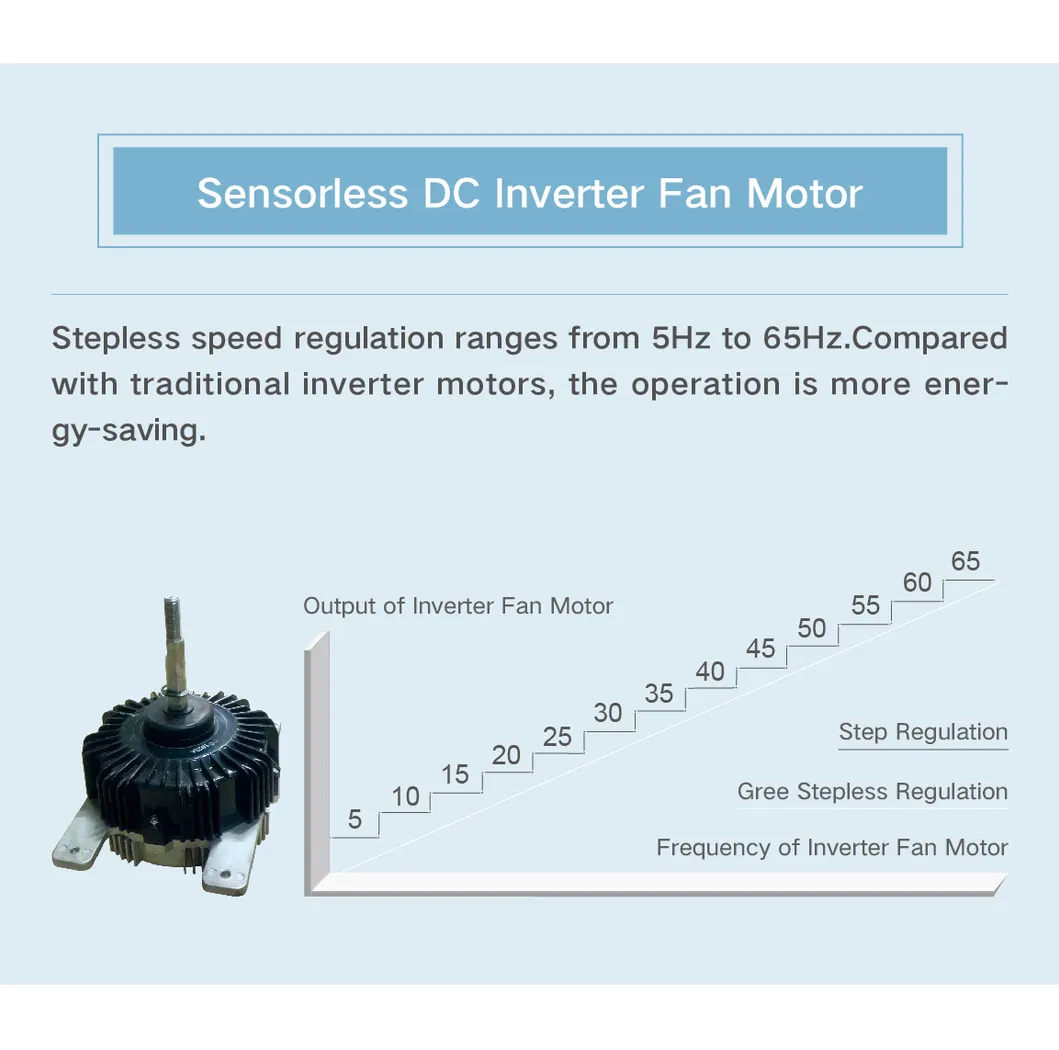

Multi Vrf System Detail 5

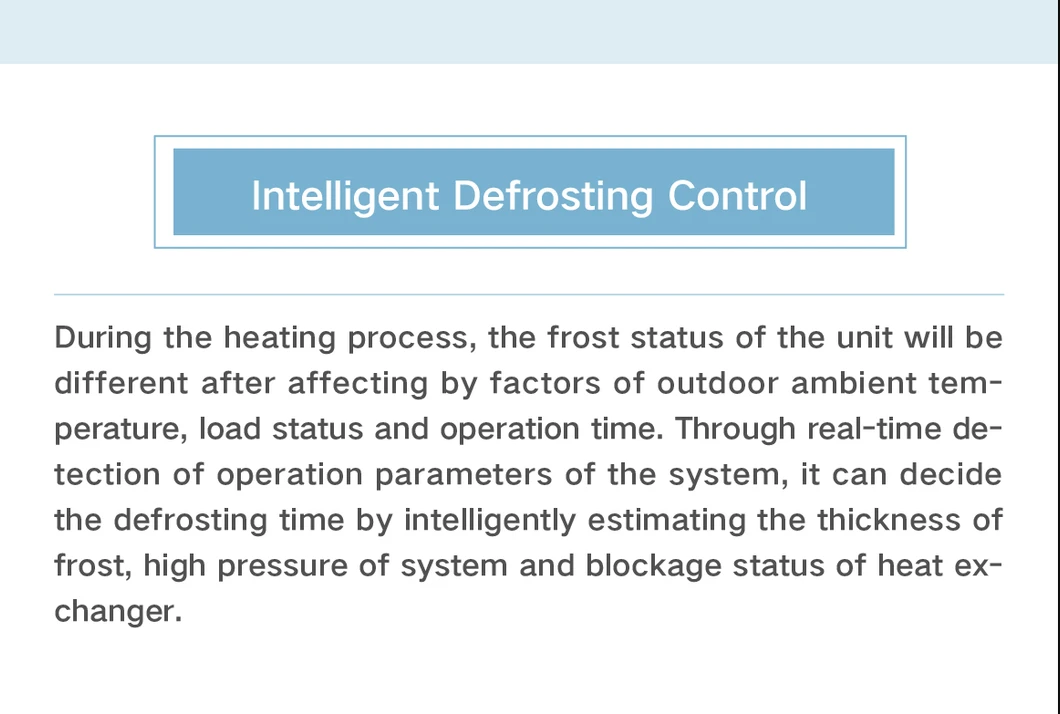

Multi Vrf System Detail 6

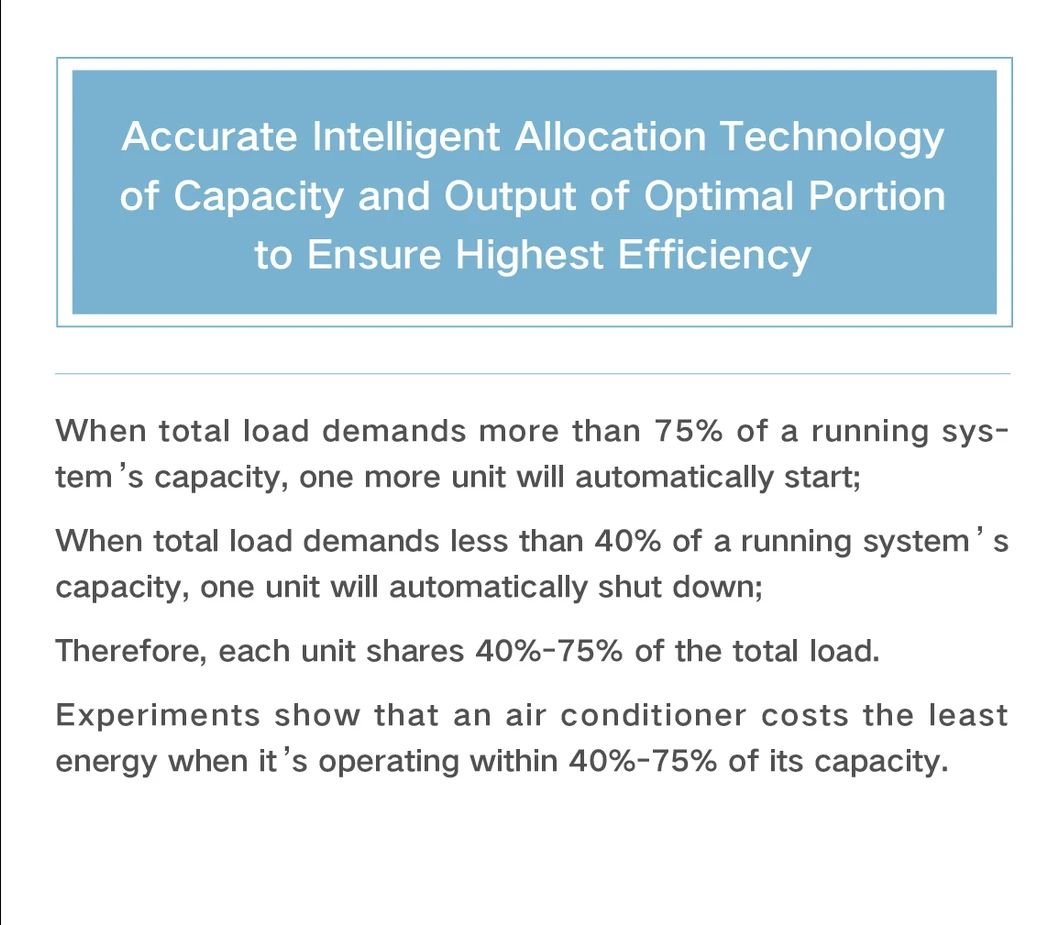

Multi Vrf System Detail 7

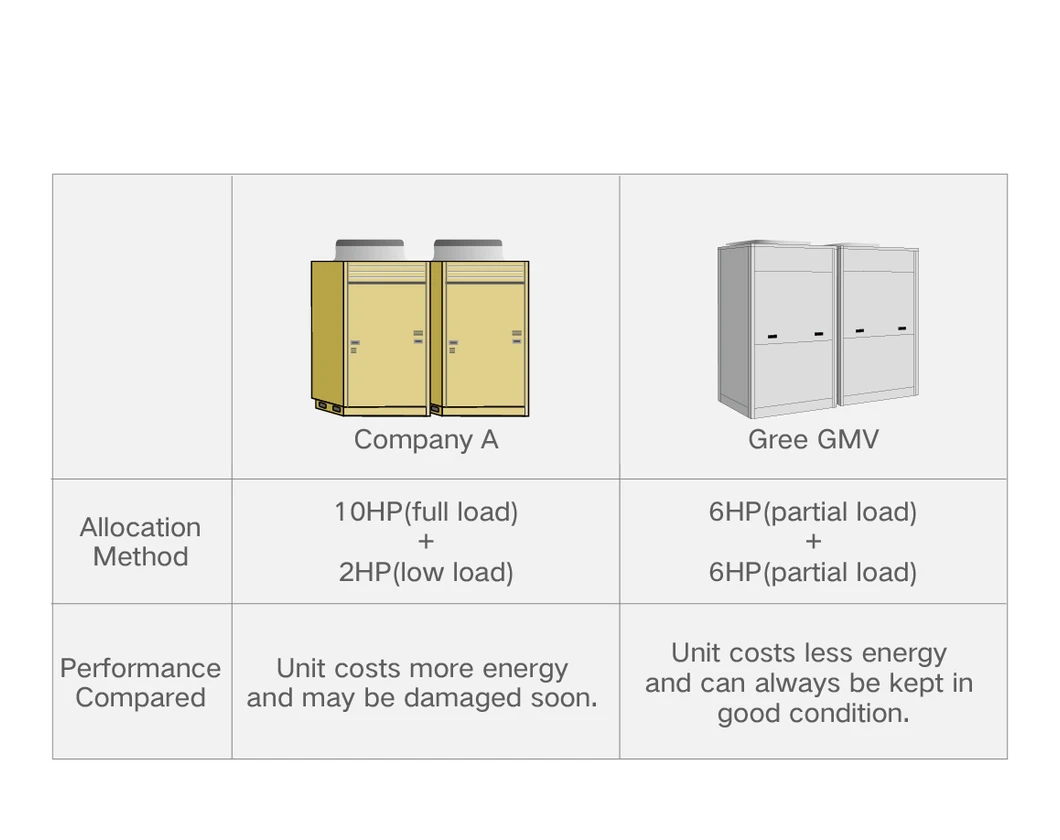

Multi Vrf System Detail 8

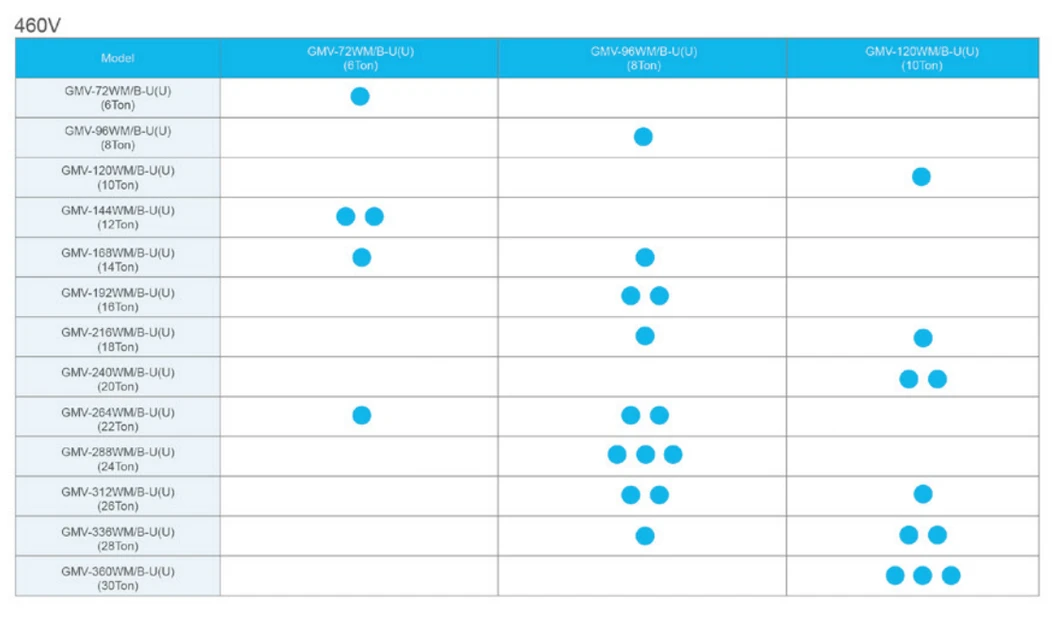

Multi Vrf System Detail 9
📦 Packaging & Shipping
Packaging and Shipping
🏢 Company Profile
Company Overview
❓ Frequently Asked Questions
What is the maximum modular capacity of the system?
The system units can be modularly combined from 6 Ton up to a maximum capacity of 30 Ton (360 kBtu/h).
How does the auto-switch function improve reliability?
The system automatically switches module status every 8 hours, which balances the workload across units and significantly extends the reliability and lifespan of the entire system.
Can this VRF system be used for large commercial buildings?
Yes, with its modular design, high static pressure options (up to 0.33 In.W.G.), and long piping capabilities, it is ideal for hotels, commercial spaces, and large households.
What is the energy efficiency rating of this product?
The system features an Energy Efficiency Standard of Level 1 and an Energy Efficiency Rating of Class A+++, utilizing all DC inverter technology for maximum power saving.
What is the maximum allowed length for the connection pipes?
The design supports a long connection pipe with a maximum total length of approximately 3280 3/4 feet, allowing for flexible installation in complex building structures.
Does the system support remote or smart control?
Yes, the system is App-Controlled, allowing users to manage settings and monitor performance via mobile devices.
