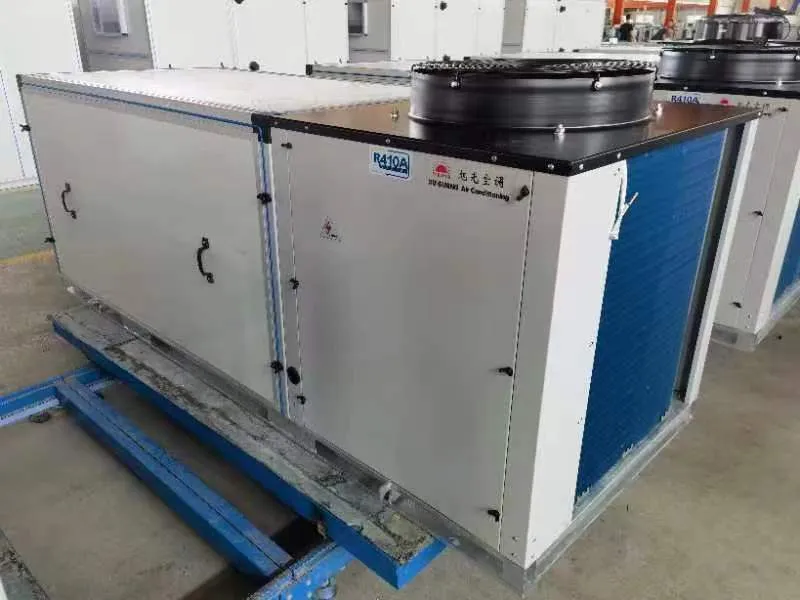

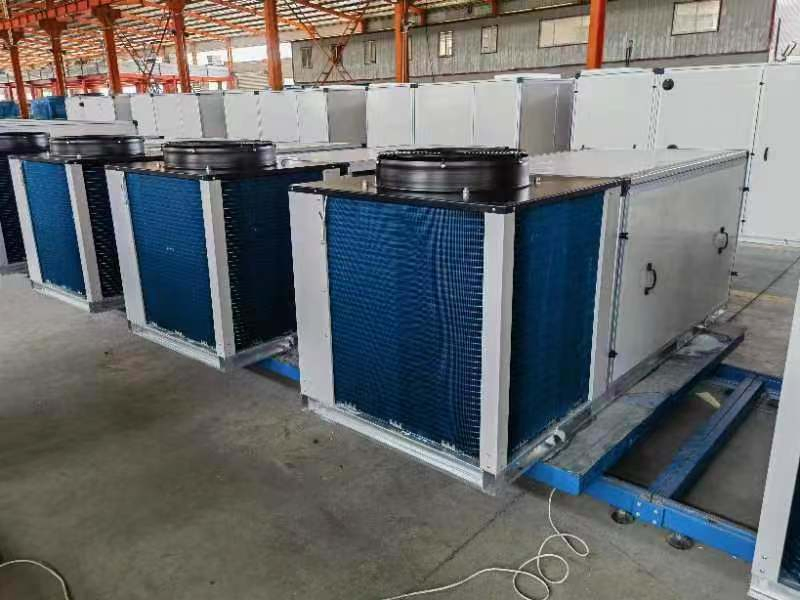

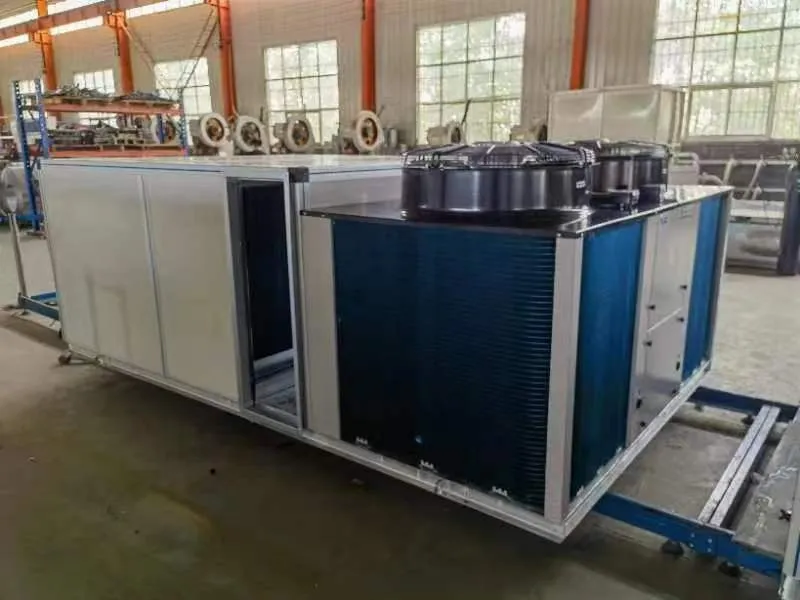

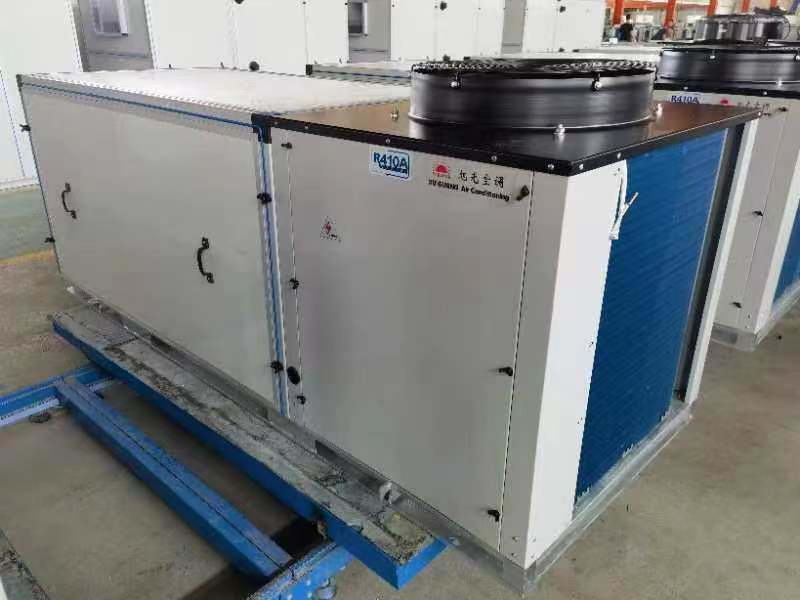

Direct Expansion Air Handling Unit (DX AHU)

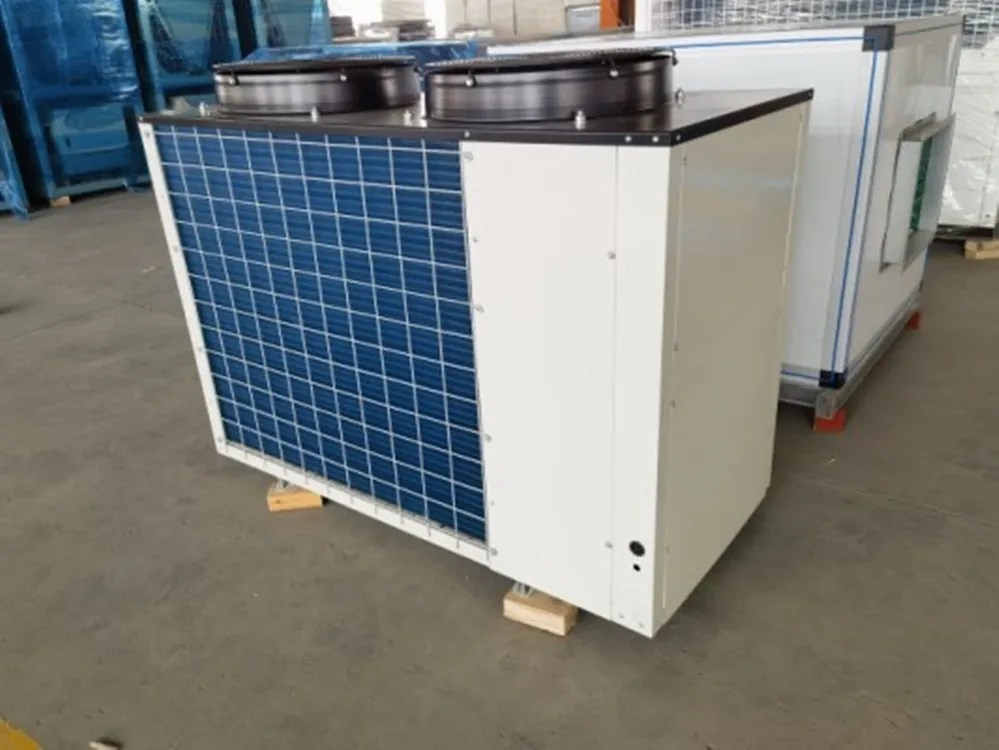

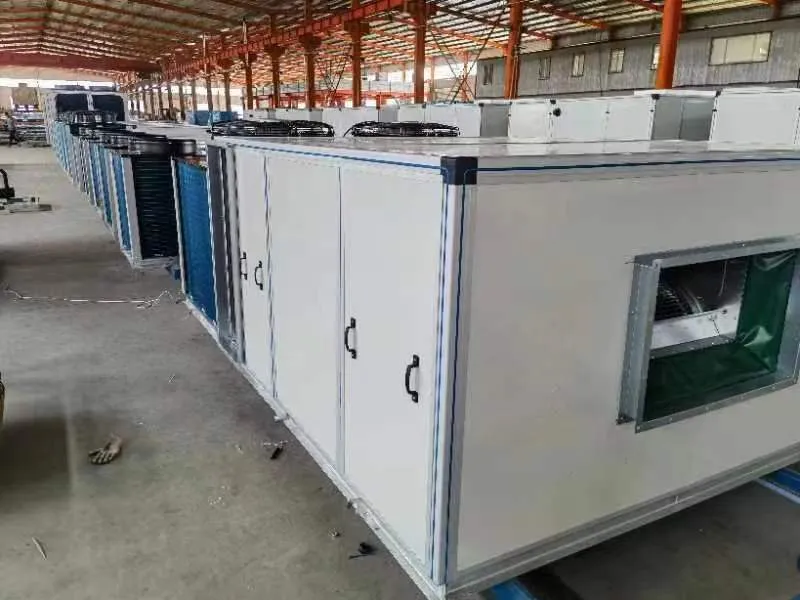

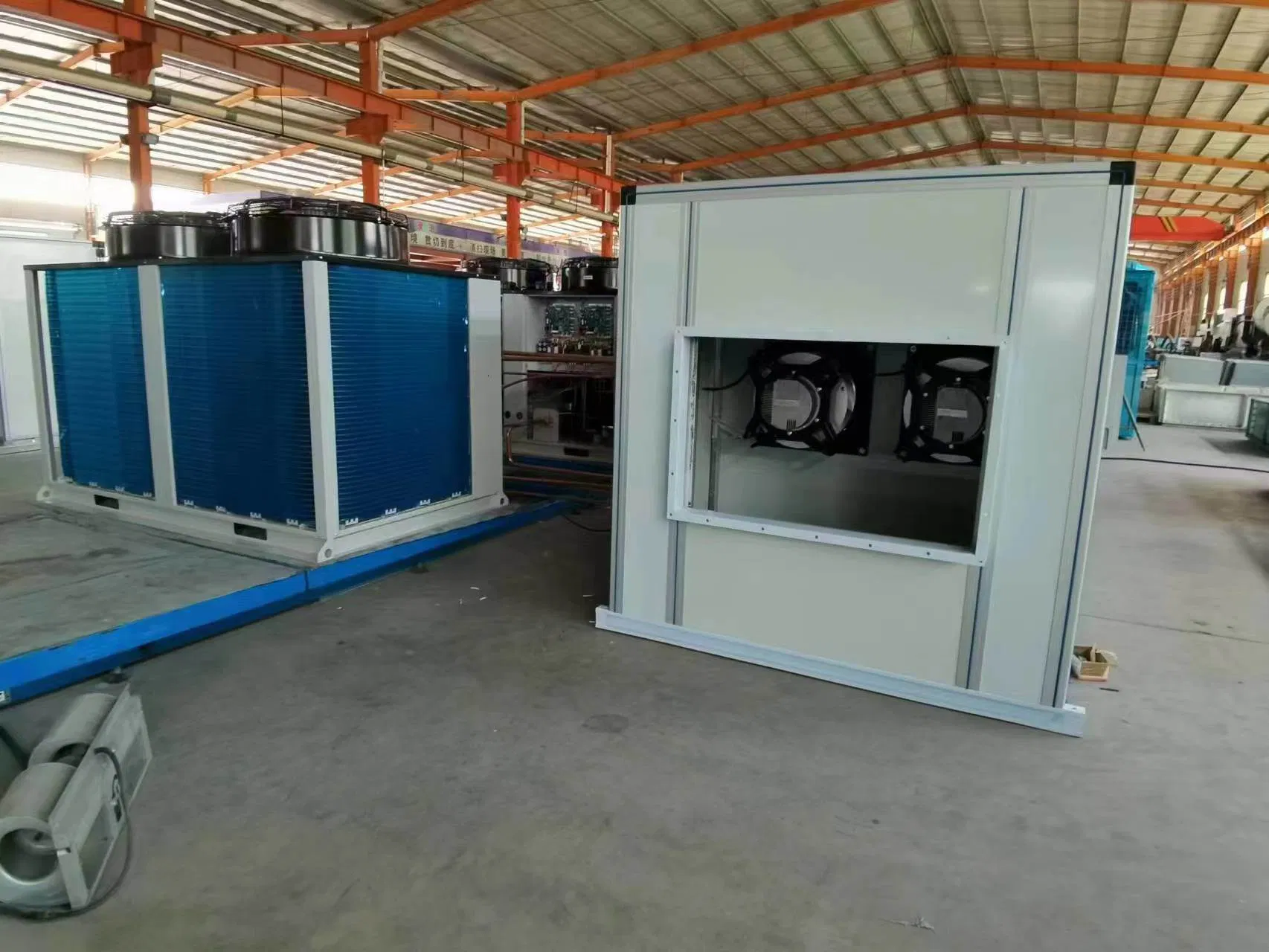

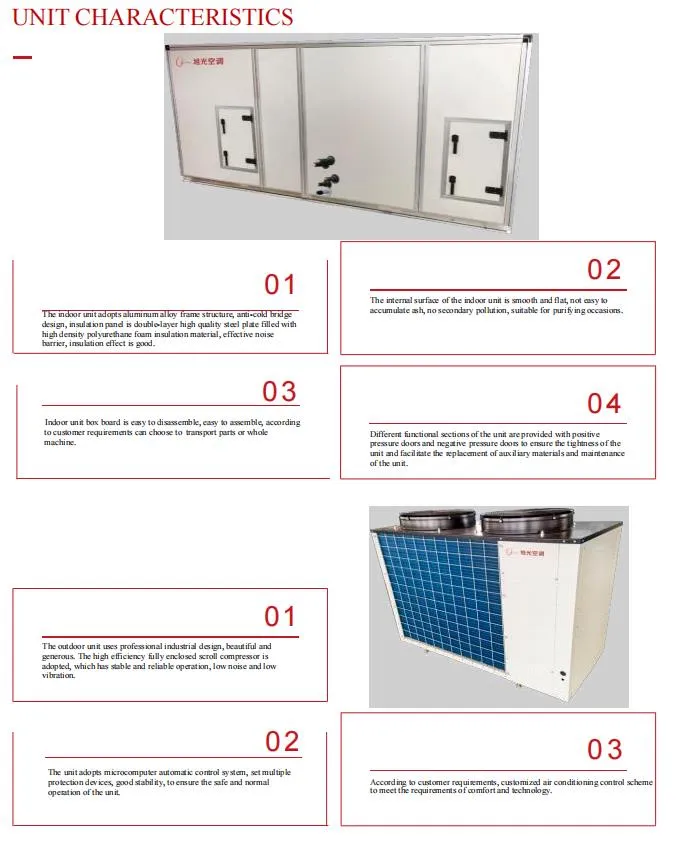

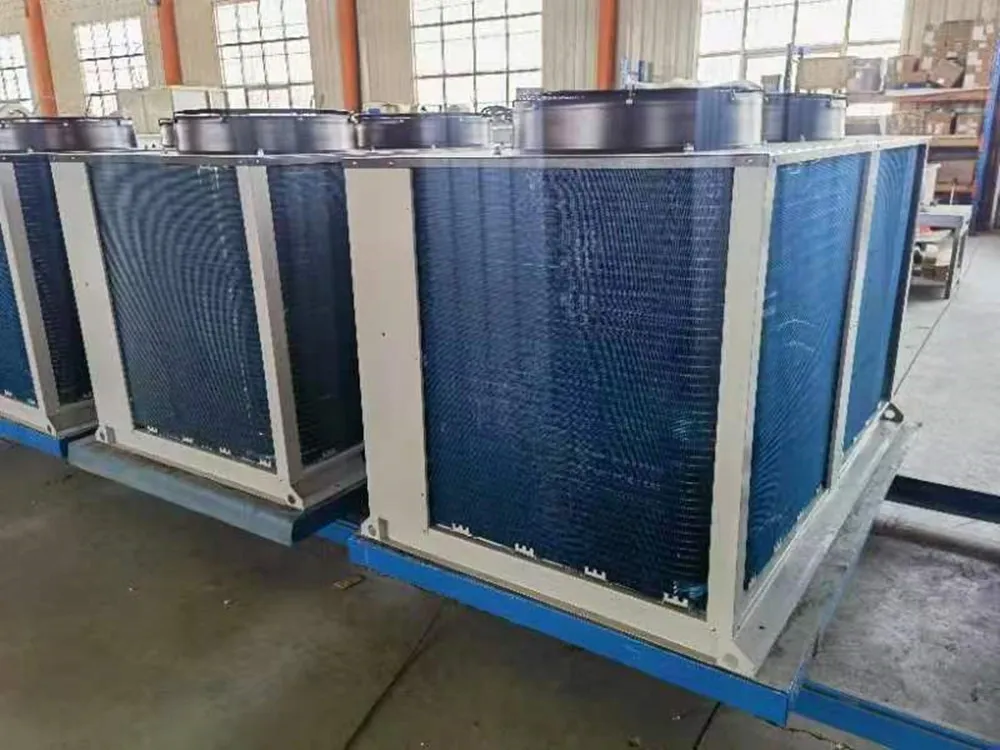

A Direct expansion air handling unit is a combined air handling unit with its own heat and cold source. It is composed of an indoor air-cooled compression and condensation part (outdoor unit) and an indoor air handling part (indoor unit). The indoor and outdoor units are connected through refrigerant pipes without a water system. The system is simple, energy-saving, and easy to install.
This unit is widely used in metallurgy, the chemical industry, machinery, electronics, the electric power industry, and other process air conditioning places. It is also suitable for shopping malls, hospitals, hotels, and office buildings, covering areas from several to several thousand square meters.
| Model (Indoor) | Model (Outdoor) | Cooling (kw) | Heating (kw) | Air Volume (m³/h) | Power |
|---|---|---|---|---|---|
| XDI 0606 | SDCR 035 | 10.3 | 11.4 | 2000 | 380V/3P |
| XDI 0607 | SDCR 040 | 12.1 | 13.3 | 2450 | 380V/3P |
| XDI 0608 | SDCR 050 | 15.0 | 16.5 | 3000 | 380V/3P |
| XDI 0709 | SDCR 060 | 18.3 | 20.2 | 3700 | 380V/3P |
| XDI 0809 | SDCR 070 | 20.0 | 22.0 | 4000 | 380V/3P |
| XDI 0910 | SDCR 080 | 24.9 | 27.4 | 5000 | 380V/3P |

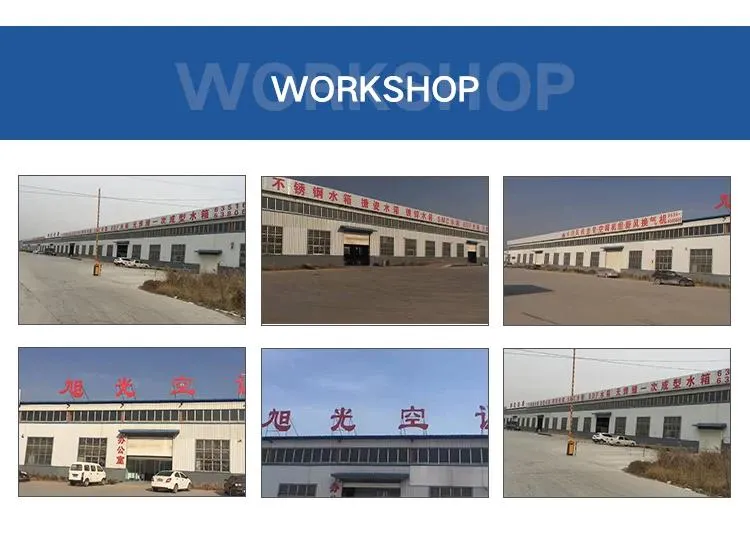

Our enterprise was established in 2008 and is a leading supplier of central air conditioning system terminals. We integrate research, development, design, production, and sales of composite materials, fresh air equipment, and fire smoke exhaust systems.

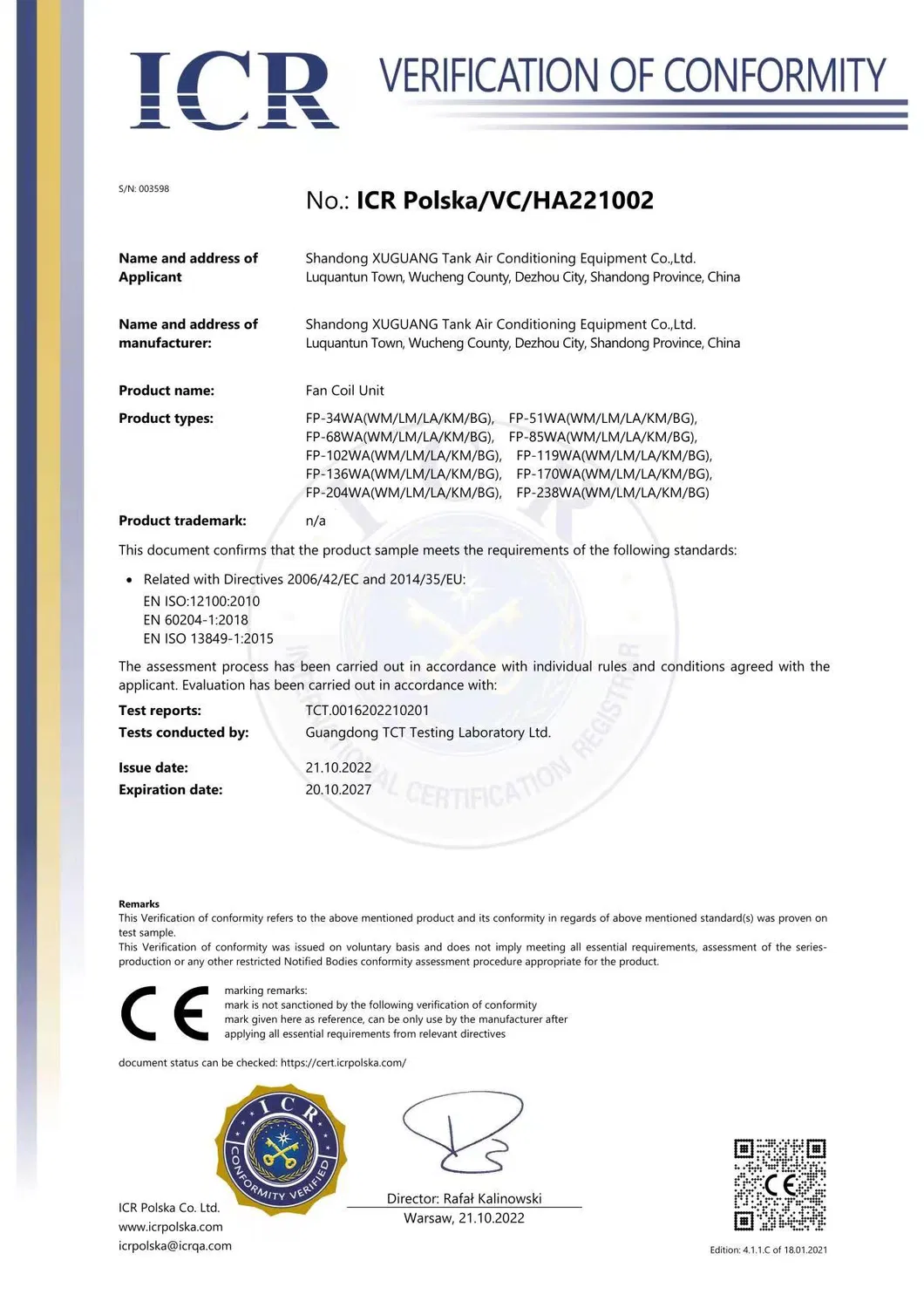

With international certifications including ISO9001, ISO14001, and OHSAS18001, we provide high-quality solutions for global markets, including Southeast Asia, America, and the Russian Federation.
Core Advantages:
