Modular Air Handling Unit for Medical ICU Room

Customization:	Available
Type:	Air Handling Unit
Air Tube Material:	Galvanized Sheet, Glass, Steel, Plastic Duct, etc;

Send Inquiry

Product Description

Technical Specifications

Model NO.

Product Name

Modular Air Handling Unit for Medical ICU Room

Operating Voltage

380/400 VAC

Corrosion Durability

Ultrahigh

Noise Level

Ultra Low

Lifetime

15~20 years

Body Structure

Gi Steel, Optional SS304

Insulation

PE or PU 30mm /50mm

Cooling Coils

4 Rows, 6 Rows and 8 Rows

Drain Pan

SS304 Stainless Steel

Application Fields

Electronic Instruments, Precision Machinery, Hotel, Medical

Certification

ISO, CE

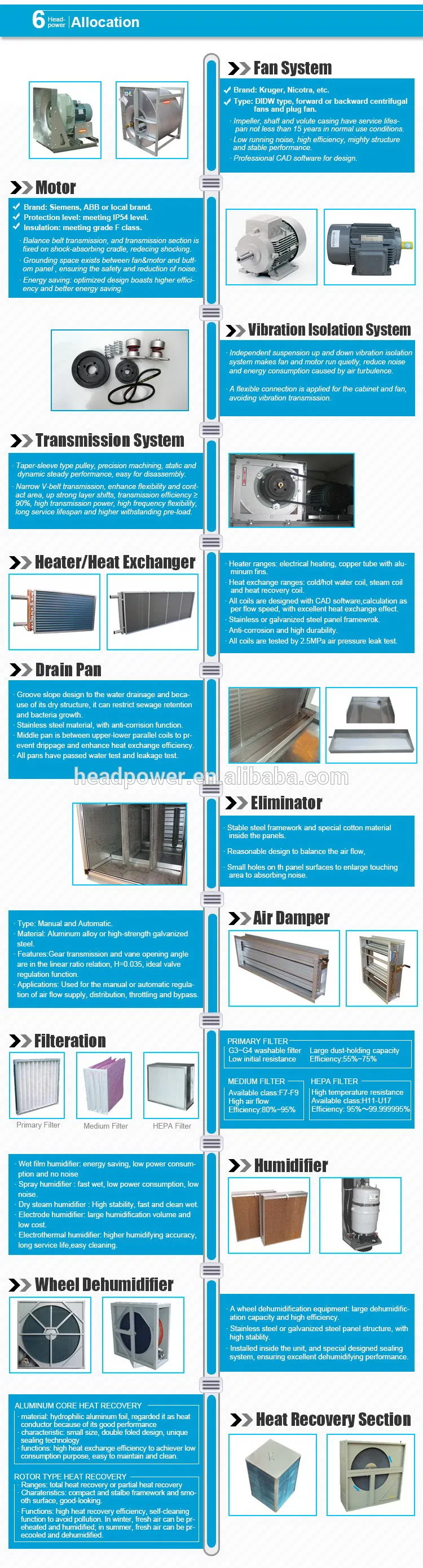

Product Features

Industrial HVAC Modular Air Handling Unit designed specifically for cleanroom environments such as Medical ICU rooms and pharmaceutical factories.

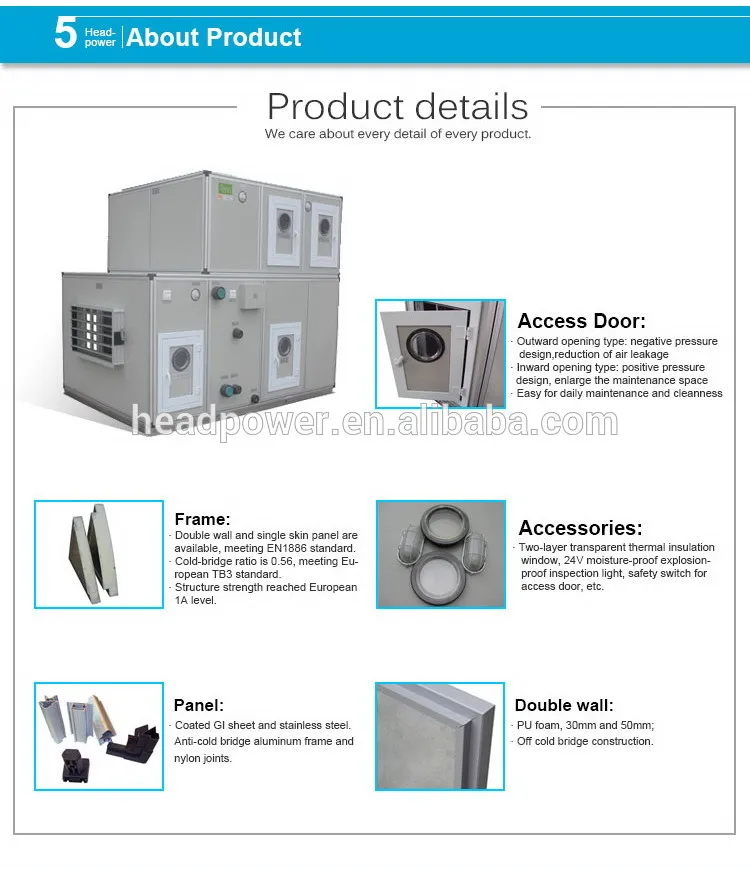

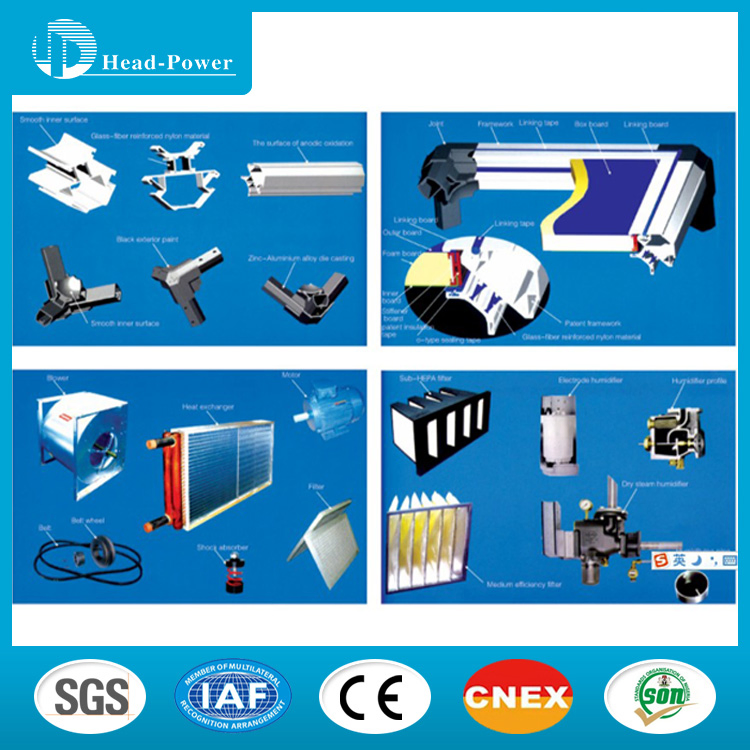

Frame and Panel Aluminium alloy frame with anti-cold bridge design. Double skin panels (30/50mm) available in color steel.

Fan System DIDW centrifugal fan with low running noise and high efficiency. Service lifespan not less than 15 years.

Heat Exchanger Copper tubes with aluminium fins designed via CAD software for maximum heat exchange effect. Tested at 2.5MPa.

Filtration System Multi-stage filtration: G3~G4 primary, F7~F9 secondary bag filters, and optional HEPA filters.

Humidification Options include wet film, high pressure spray, steam, electrode, or electric heating humidifiers.

Energy Recovery Plate type or wheel heat recovery sections available to save energy by precooling or preheating.

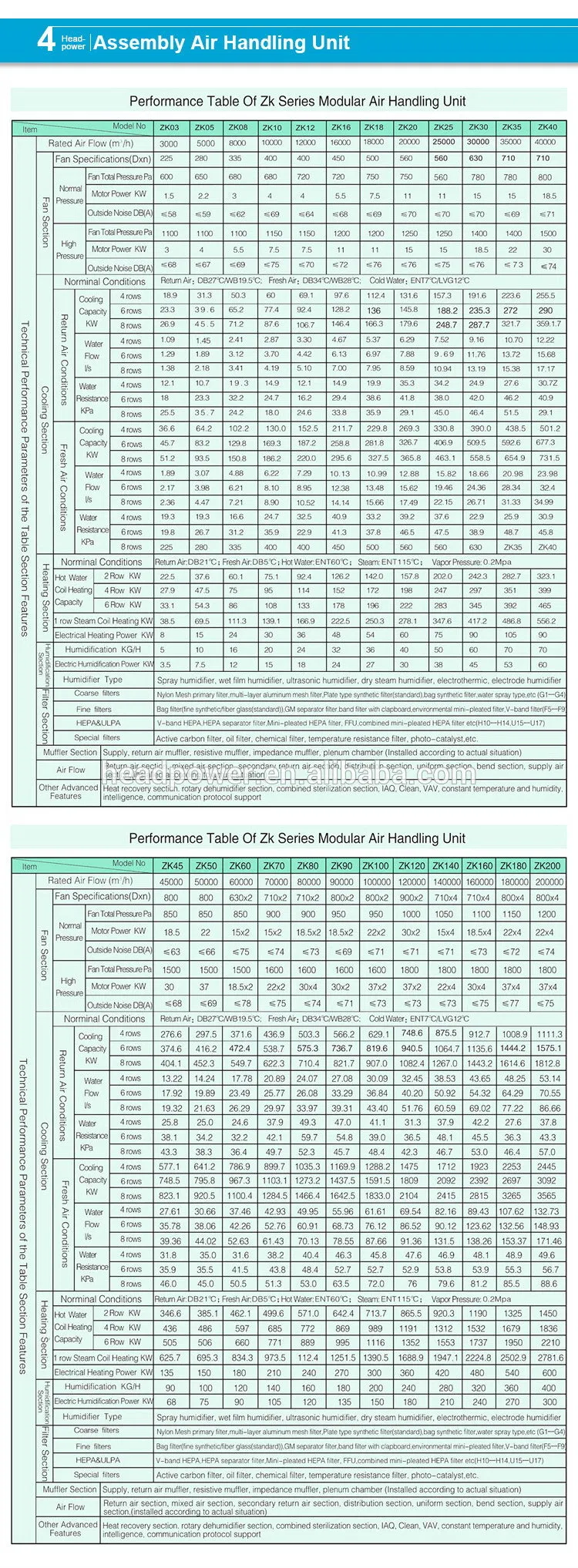

Performance Parameters

Type	ZK-6	ZK-8	ZK-10	ZK-15	ZK-20	ZK-25	ZK-30
Air Flow (m³/h)	6000	8000	10000	15000	20000	25000	30000
Cooling Capacity (KW) - 4 Rows	35.6	51.3	58.1	88.0	116.3	142.3	174.5
Water Flow (T/h)	6.1	8.8	10.0	15.1	20.0	24.5	30.0
Fresh Air Cooling (KW) - 6 Rows	79.1	117.3	123.1	185.7	249.0	306.3	373.8
Heating Capacity (KW) - Hot Water	41.7	55.7	69.8	104.6	139.6	174.5	209.3

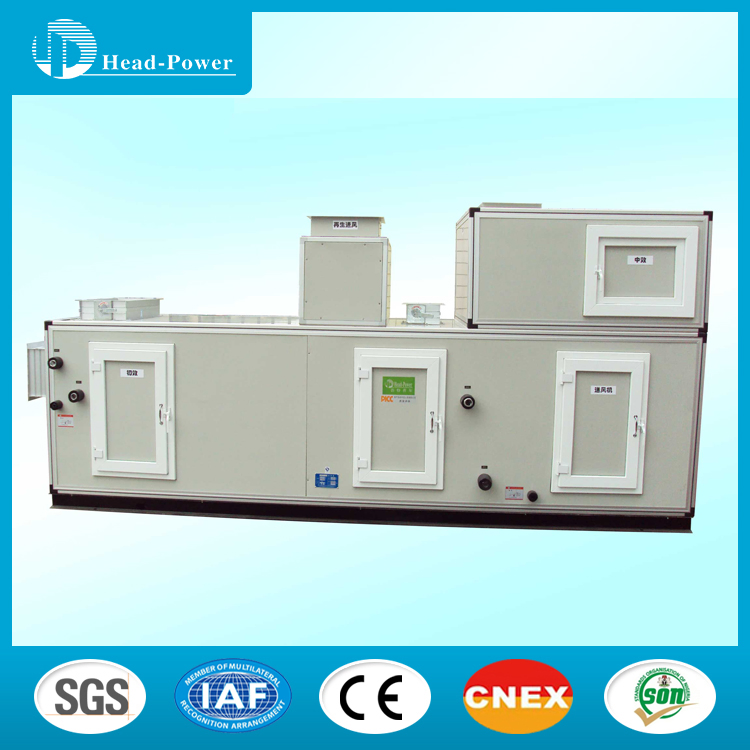

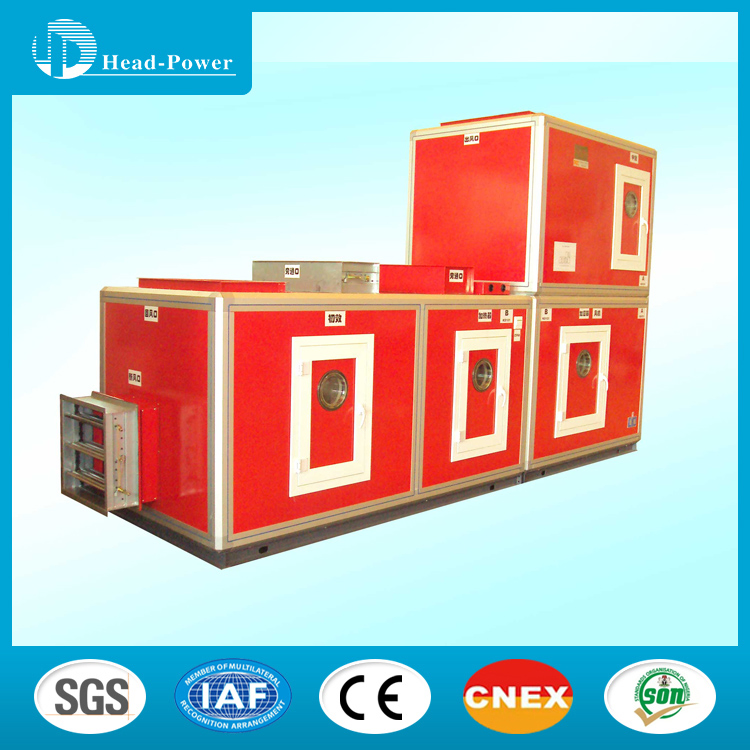

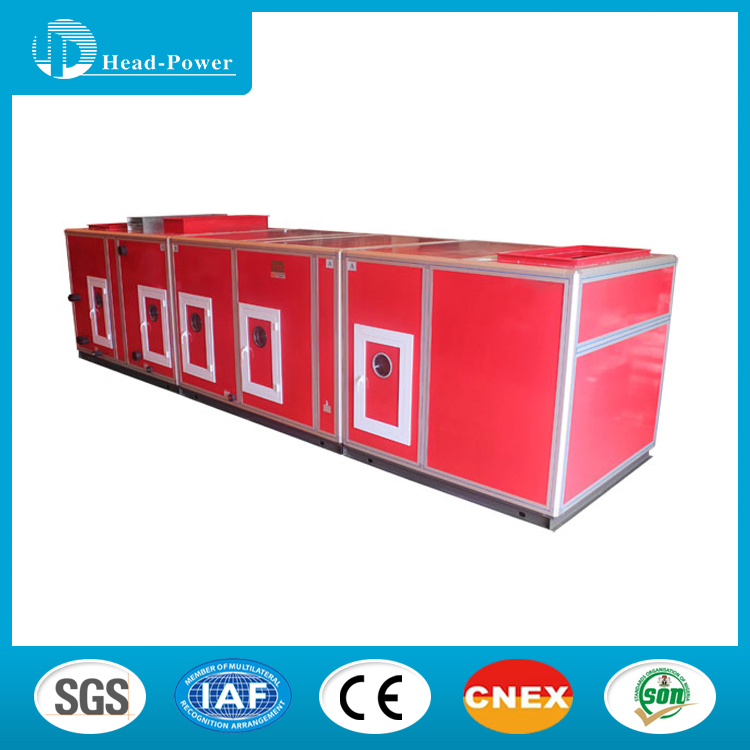

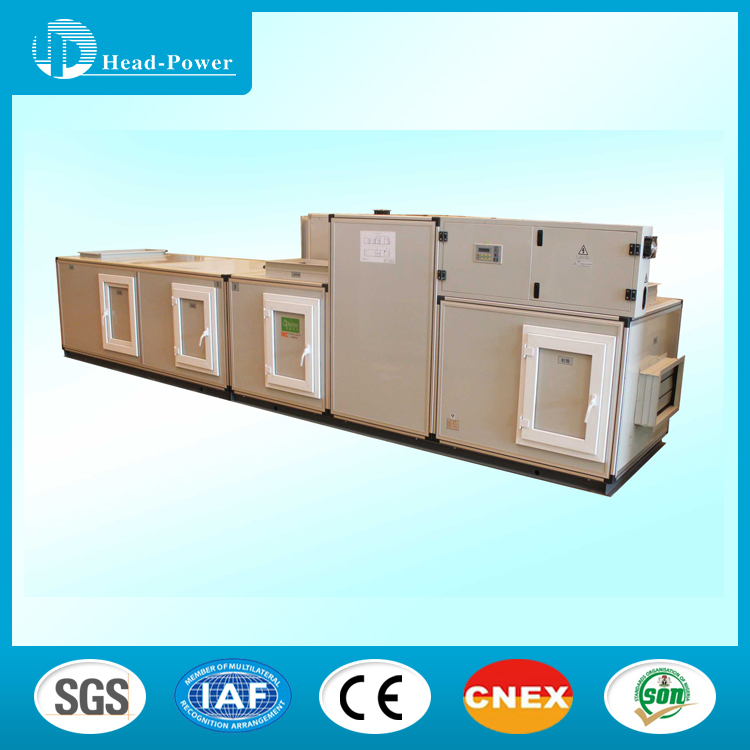

Product Gallery

Frequently Asked Questions

What is the typical lifespan of this Air Handling Unit?

Under normal operating conditions, the impeller, shaft, and casing are designed to have a service lifespan of no less than 15 to 20 years.

Is the unit suitable for medical ICU environments?

Yes, this modular AHU is specifically designed for Medical ICU rooms, as well as pharmaceutical and electronic factories that require precision air control.

What materials are used for the outer panels?

The unit features a double skin panel design, typically made of color steel with an aluminium alloy frame. SS304 stainless steel is also available as an option for the body structure.

What type of filtration is included?

Standard units include G4 primary filters and F7~F9 secondary bag filters. HEPA filters or other special function filters can be added based on requirements.

Can the unit handle high humidity?

Yes, it can be equipped with various humidifiers or a wheel dehumidifier that can manage humidity levels lower than 50% for industrial applications.

How is air leakage minimized?

The access doors are designed to open outward for negative pressure sections and inward for positive pressure sections, significantly reducing air leakage.
